DIN 1.0/2.3 TO DIN 1.0/2.3 HD SDI Cables
AV-Cables.net 3G/6G/12GHz 4K UHD SDI cables are the next-gen Din 1.0/2.3 - Din 1.0/2.3 cables. Designed to handle 3G/6G/12GHz 4K UHD signals up to 200 Feet. These 3G/6G/12GHz HD SDI cables provide the critical link between your switchers, cameras and other 4K video equipment. Hand assembled by our technicians featuring High-Definition coaxial cable and matching Din 1.0/2.3 and Din 1.0/2.3.
Features
- Designed for UHD and 4K Video Transport
- 3G/6G/12 GHz, 4K UHD Precision 75-Ohm Video Cable
- Optimized Transmission Distance for UHDTV
- Transmits up to 150 ft
- Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
- Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards
Specifications
- Belden 6G/12G SDI Coax Cable with PVC Jacket in various colors
- 6G/12G SDI DIN 1.0/2.3 Connectors
- Compatible with 12GSDI single link format devices
- Nominal Impedance: 75Ω
- Conductor: copper/Silver Plated Copper
- Insulation: Gas Injected Foam HDPE
- Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
- Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)

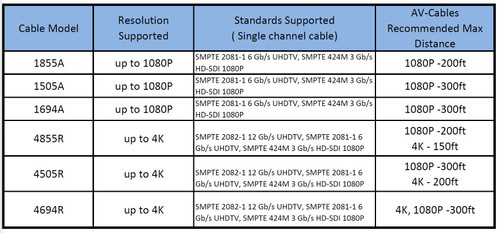

- Transmission Distance: 12G signals up to 149 feet, 6G up to 200 feet
