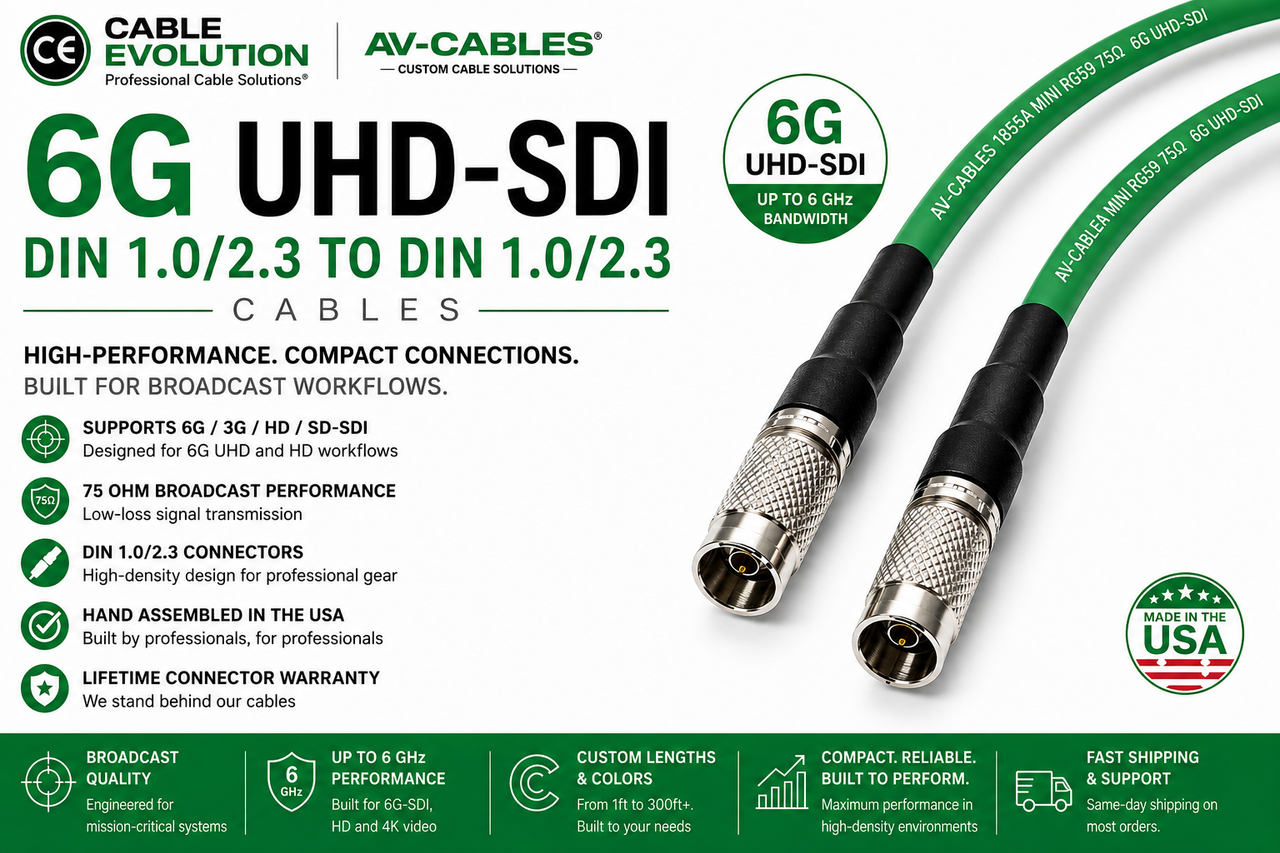

6G HD-SDI DIN 1.0/2.3 to DIN 1.0/2.3 Cable – Belden 1855A Mini RG59
AV-Cables.net custom DIN 1.0/2.3 to DIN 1.0/2.3 HD-SDI cables are engineered for professional broadcast, production, and AV applications requiring exceptional signal integrity in a compact, lightweight cable assembly. Built with genuine Belden 1855A 23 AWG miniature 75-ohm coaxial cable and precision Kings true 75-ohm DIN 1.0/2.3 connectors, these cables deliver outstanding performance for HD-SDI, 3G-SDI, and 6G-SDI video systems.
Belden 1855A is renowned throughout the broadcast industry for its low attenuation, excellent flexibility, and tight bend radius. Its miniature construction makes it an ideal choice for equipment racks, camera systems, patch panels, fly packs, mobile production trucks, and other installations where cable size and weight are critical without compromising signal quality.
Every cable is hand-assembled in the USA by experienced technicians, individually tested, clearly labeled, and finished with heat-shrink strain relief for a clean, professional appearance and long-term durability.
Need a large quantity? Contact our sales team at 614-834-4160 for current lead times, volume pricing, and custom cable solutions.
Features
- Supports HD-SDI, 3G-SDI, and 6G-SDI video formats
- Compatible with 1080p HD, 2K, UHD, and select 4K workflows
- Genuine Belden 1855A 23 AWG miniature 75-ohm broadcast coax
- Precision Kings true 75-ohm DIN 1.0/2.3 connectors
- Low-loss foam dielectric with double shielding for outstanding signal performance
- Compact cable design for high-density broadcast installations
- Flexible construction with excellent bend radius
- Heat-shrink strain relief for added durability
- Individually assembled and performance tested
- Cable length clearly labeled with hook-and-loop cable strap included
- Available in custom lengths from 1.5 ft to 200 ft
- Multiple jacket color options available
- Made in the USA
Performance
Designed for professional HD video applications, these cable assemblies provide dependable performance across multiple SDI formats.
- Supports 6G-SDI up to UHD video applications
- Supports 3G-SDI for 1080p HD workflows
- Compatible with HD-SDI and SD-SDI equipment
- Belden 1855A can be paired in dual-link applications for select 4K video systems
- Low attenuation and excellent return loss help maintain maximum signal integrity
Specifications
| Specification | Details |
|---|---|
| Cable | Belden 1855A Miniature RG59 |
| Connector A | Kings DIN 1.0/2.3 Male, True 75 Ohm |
| Connector B | Kings DIN 1.0/2.3 Male, True 75 Ohm |
| Impedance | 75 Ohms |
| Center Conductor | 23 AWG Solid Bare Copper |
| Dielectric | Low-Loss Gas-Injected Foam Polyethylene |
| Shielding | Duofoil® Shield with Tinned Copper Braid |
| Jacket | Flexible PVC |
| Bandwidth | Up to 6 GHz |
| Standards | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081-1 |
Typical Applications
- Broadcast television facilities
- HD and UHD camera systems
- Production switchers
- Video routers and patch panels
- Mobile production trucks
- Fly packs
- Editing and post-production suites
- Multiviewers and monitoring systems
- Professional AV installations
- Corporate and educational video systems
Why Choose AV-Cables.net?
AV-Cables.net has been manufacturing premium broadcast cable assemblies for more than 20 years. Every cable is built using genuine Belden broadcast cable and precision Kings connectors, then individually inspected and tested before shipment.
Our cables are trusted by broadcasters, production companies, rental houses, and system integrators who depend on reliable signal transmission every day. We also offer custom cable assemblies, color-coded cable options, bundled snake cables, and volume pricing for OEMs and resellers.
Every cable includes:
- Hand assembly and individual testing
- Clearly marked cable length
- Reusable hook-and-loop cable strap
- 30-Day Replacement Warranty
- Lifetime Connector Replacement Warranty
When reliability matters, choose AV-Cables.net for professional broadcast cable assemblies built to perform.
