Product Description

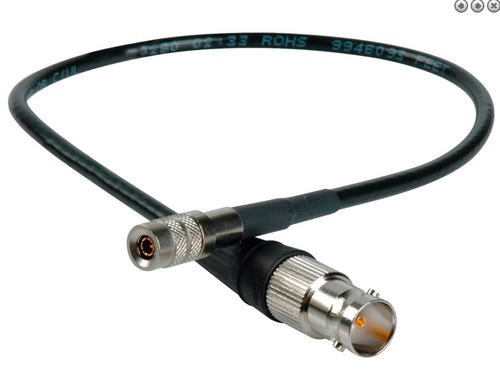

DIN 1.0/2.3 Male to Female BNC Jack 6G HD-SDI Adapter Cable – Belden 1855A Mini RG59
AV-Cables.net DIN 1.0/2.3 Male to Female BNC Jack HD-SDI adapter cables are engineered for professional broadcast, production, and AV applications where reliable signal conversion between DIN 1.0/2.3 and standard BNC interfaces is required. Built using genuine Belden 1855A 23 AWG miniature 75-ohm coaxial cable and precision broadcast connectors, these cable assemblies provide exceptional signal integrity for HD-SDI, 3G-SDI, and 6G-SDI video systems.
The compact Belden 1855A Mini RG59 cable offers excellent flexibility, low attenuation, and a tight bend radius, making it ideal for broadcast equipment racks, cameras, routers, monitors, patch panels, converters, and other professional video equipment where space is limited. Every cable is hand-assembled in the USA and individually tested to ensure dependable long-term performance in demanding production environments.
Available in custom lengths from 6 inches to 200 feet, these assemblies can be manufactured in Black, Red, Green, Blue, White, or Yellow, with additional colors available upon request. Most standard assemblies ship the same business day.
For large orders, OEM production, or custom cable requirements, contact our sales team at 614-834-4160 for current lead times and volume pricing.
Features
- Supports HD-SDI, 3G-SDI, and 6G-SDI video formats
- Compatible with 1080p HD, UHD, and select dual-link 4K video applications
- Genuine Belden 1855A Mini RG59 75-ohm broadcast coaxial cable
- DIN 1.0/2.3 Male to Female BNC Jack connector configuration
- Precision true 75-ohm broadcast connectors
- Professional 3-piece crimp connector construction
- Double-shielded cable with low-loss foam dielectric
- Excellent flexibility for high-density equipment installations
- Hand-assembled and individually tested
- Available in custom lengths from 6 inches to 200 feet
- Multiple jacket colors available
- Made in the USA
Specifications
| Specification | Details |
|---|---|
| Cable | Belden 1855A Mini RG59 |
| Connector A | DIN 1.0/2.3 Male, 75 Ohm |
| Connector B | Female BNC Jack, 75 Ohm |
| Connector Style | Professional 3-Piece Crimp |
| Impedance | 75 Ohms |
| Center Conductor | 23 AWG Solid Bare Copper |
| Dielectric | Gas-Injected Foam Polyethylene |
| Shielding | Duofoil® Shield with Tinned Copper Braid |
| Jacket | Flexible PVC |
| Bandwidth | Up to 6 GHz |
Typical Applications
- Broadcast television studios
- Camera and camera control systems
- Video routers and patch panels
- Signal converters and distribution amplifiers
- Video monitors and waveform monitors
- Mobile production trucks
- Fly packs
- Editing and post-production facilities
- Corporate AV systems
- Professional broadcast installations
Why Choose AV-Cables.net?
Every AV-Cables.net broadcast cable is manufactured using premium Belden cable and precision broadcast connectors to provide dependable performance in professional video environments. Our experienced technicians individually assemble and test every cable before shipment to ensure the highest level of quality and reliability.
Each assembly includes:
- Hand-built in the USA
- Individual performance testing
- Professional heat-shrink strain relief
- Clearly labeled cable length
- Reusable hook-and-loop cable strap
- 30-Day Replacement Warranty
- Lifetime Connector Replacement Warranty
Whether you need a single adapter cable or a large production order, AV-Cables.net delivers professional-grade cable assemblies trusted by broadcasters, production companies, and AV integrators worldwide.
