Product Description

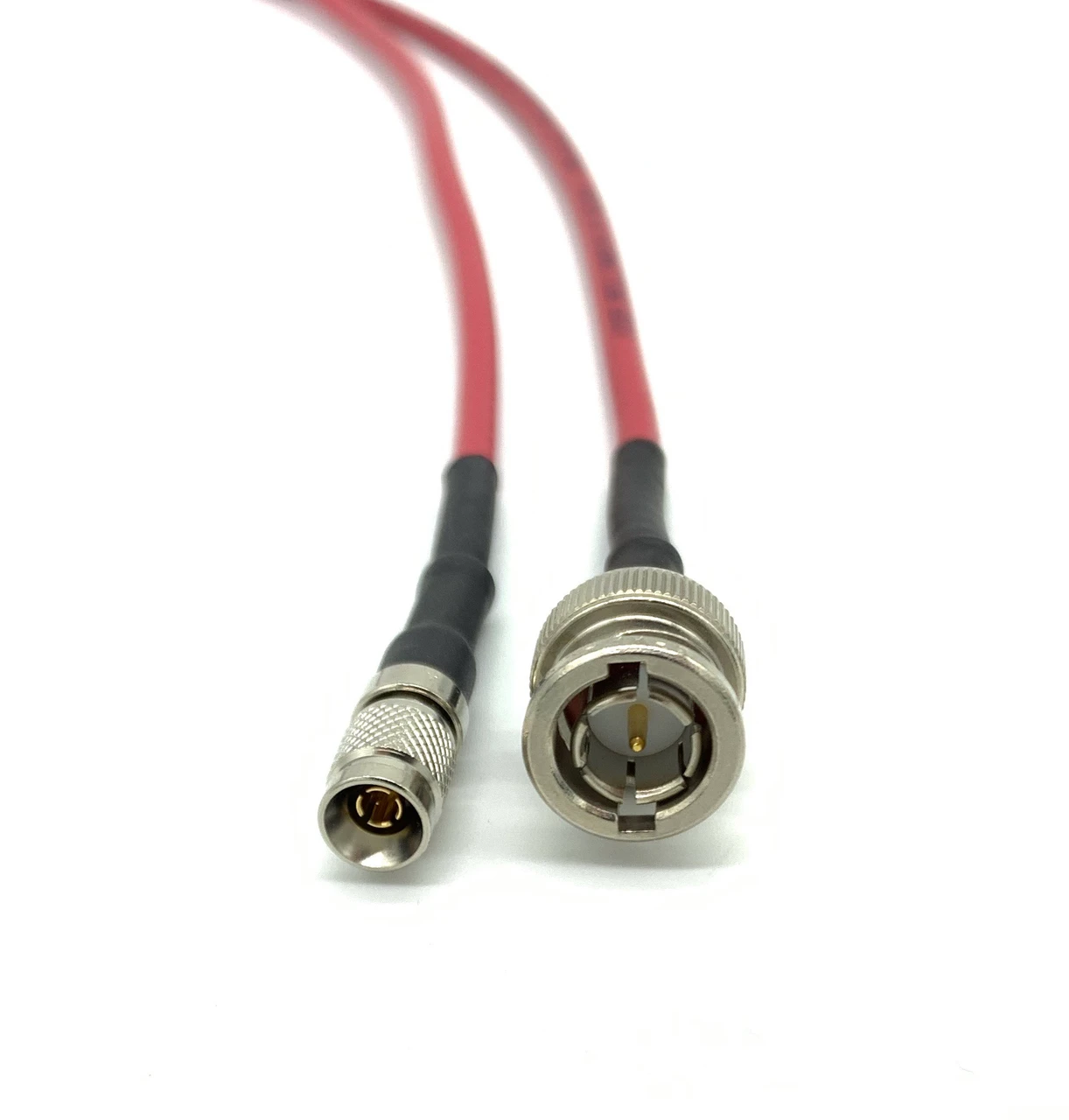

Professional 6G-SDI BNC to DIN 1.0/2.3 Cable
This professional BNC-to-DIN 1.0/2.3 cable is built with genuine Belden 1855A Mini RG59 coaxial cable, a precision Kings true 75-ohm BNC male connector and a Kings DIN 1.0/2.3 male connector.
Its compact, flexible design makes it an excellent choice for connecting conventional BNC-equipped broadcast equipment to cameras, routers, monitors, converters and patch panels that use space-saving DIN 1.0/2.3 connections.
Every cable is hand assembled in the USA, individually inspected and tested for dependable professional video performance.
6G BNC-to-DIN Cable Key Features
- Supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats
- Compatible with HD, 1080p, 2K and applicable UHD workflows
- Genuine Belden 1855A 23 AWG Mini RG59 coaxial cable
- Kings true 75-ohm BNC male connector
- Kings true 75-ohm DIN 1.0/2.3 male connector
- Compact 4.04 mm cable diameter for high-density installations
- Flexible construction with a small bend radius
- Foil shield with 95% tinned-copper braid coverage
- Heat-shrink strain relief for improved durability
- Available in multiple lengths and jacket colors
- Hand assembled and individually tested in the USA
- Lifetime Connector Replacement Warranty
Designed for Professional Broadcast Equipment
DIN 1.0/2.3 connectors provide a compact 75-ohm connection for professional broadcast and video equipment where traditional full-size BNC connectors require too much panel space.
This cable provides a convenient transition between standard BNC connections and DIN 1.0/2.3 connections without using an additional adapter.
- Broadcast cameras and camera-control equipment
- Production switchers and video routers
- Patch panels and distribution amplifiers
- Video converters and signal processors
- Multiviewers and production monitors
- Mobile production trucks and fly packs
- Broadcast studios and post-production facilities
- Corporate, educational and house-of-worship AV systems
Supported SDI Formats and SMPTE Standards
| Video Format | SMPTE Standard | Supported |
|---|---|---|
| SD-SDI | SMPTE 259M | Yes |
| HD-SDI | SMPTE 292M | Yes |
| 3G-SDI | SMPTE 424M | Yes |
| 6G-SDI | SMPTE ST 2081-1 | Yes |
| 12G-SDI | SMPTE ST 2082-1 | No—select Belden 4855R |
Maximum transmission distance depends on the SDI format, connected equipment and installation environment. Contact AV-Cables for help selecting cable for critical or extended-distance applications.
Belden 1855A vs. Belden 4855R
| Feature | Belden 1855A | Belden 4855R |
|---|---|---|
| Maximum Bandwidth | 6 GHz | 12 GHz |
| Recommended Formats | SD, HD, 3G and 6G-SDI | SD, HD, 3G, 6G and 12G-SDI |
| Center Conductor | 23 AWG solid bare copper | 23 AWG solid silver-plated copper |
| Nominal Diameter | 4.04 mm | 4.04 mm |
| Best Choice For | 6G and lower-bandwidth systems | Single-link 12G-SDI systems |
Belden 1855A Cable Specifications
| Specification | Details |
|---|---|
| Cable | Belden 1855A Mini RG59 |
| Connector A | Kings BNC male, true 75 ohm |
| Connector B | Kings DIN 1.0/2.3 male, true 75 ohm |
| Impedance | 75 ohms |
| Center Conductor | 23 AWG solid bare copper |
| Shielding | Foil shield with 95% tinned-copper braid |
| Nominal Cable Diameter | 4.04 mm (0.159 in) |
| Jacket | PVC, CMR rated |
| Bandwidth | Up to 6 GHz |
| Assembly | Hand assembled and individually tested in the USA |
| Warranty | Lifetime Connector Replacement Warranty |
Available Lengths and Jacket Colors
Available lengths include 1.5, 3, 6, 10, 15, 25, 35, 50, 75, 100 and 150 feet. Custom lengths may be available when a standard option does not fit your installation.
Choose from black, blue, green, red, white or yellow cable. Belden 1855A is not offered in violet.
Why Choose AV-Cables?
- More than 20 years of professional cable-assembly experience
- Genuine Belden broadcast cable
- Precision Kings true 75-ohm connectors
- Professional crimp construction and strain relief
- Every assembly is individually inspected and tested
- Custom lengths and volume pricing available
- Hand assembled in the USA
- Lifetime Connector Replacement Warranty
Looking for another configuration? View our 6G-SDI DIN-to-DIN Belden 1855A cable or browse the complete DIN 1.0/2.3 Broadcast Video Cable category .
6G BNC to DIN 1.0/2.3 Cable FAQs
What is this BNC-to-DIN cable used for?
It connects professional equipment with a standard 75-ohm BNC port to equipment using a compact DIN 1.0/2.3 video connection.
Does this cable support 6G-SDI?
Yes. Belden 1855A supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI applications.
Does this cable support 12G-SDI?
No. For single-link 12G-SDI, select the BNC-to-DIN cable manufactured with Belden 4855R.
Are both connectors male?
Yes. This assembly has one BNC male connector and one DIN 1.0/2.3 male connector.
Is the signal directional?
No. The passive cable assembly can be used from BNC to DIN or from DIN to BNC when the connected equipment and video format are compatible.
Where is the cable assembled?
Every cable is hand assembled and individually tested in the USA.
