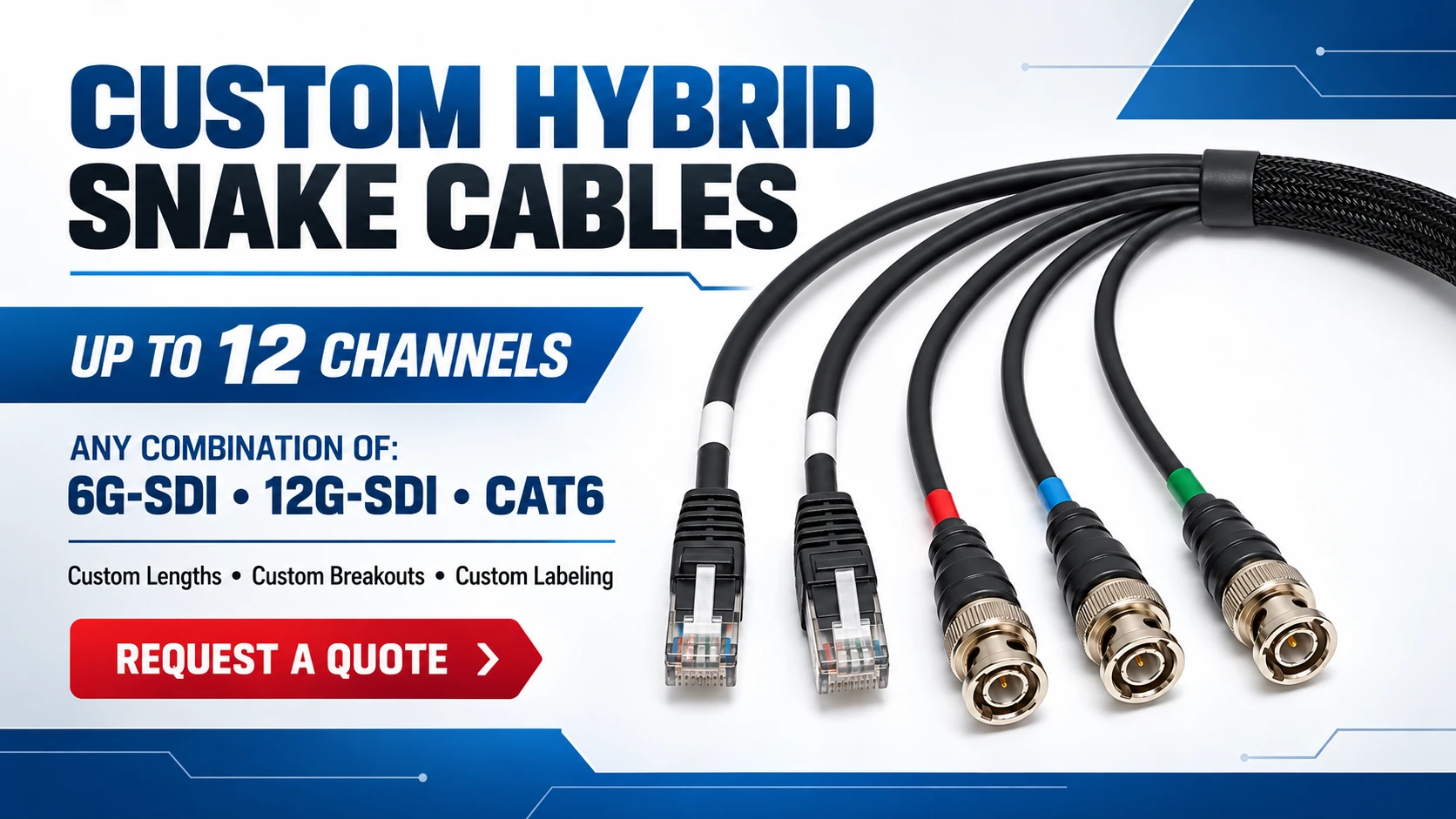

Custom Camera Hybrid Snake Cables
Custom Camera Hybrid Snake Cables
Combine up to 12 channels of 6G-SDI, 12G-SDI and CAT6 into one professional cable loom built for your exact production system.
Up to 12 Total Channels Any 6G / 12G / CAT6 Mix Custom Lengths & Breakouts Made in USA
Request a Custom Quote →Tell Us What You Need. We’ll Build It.
AV-Cables builds made-to-order hybrid snakes for broadcast cameras, PTZ systems, fly packs, production trucks, studios, venues and permanent AV installations. Choose the number of 6G-SDI, 12G-SDI and CAT6 channels required—up to 12 total—and we’ll combine them into one organized, protected assembly.
Build Any Combination Up to 12 Channels
These are only examples. Your loom can use any combination that fits your signal plan.
4-Channel Compact Hybrid2 × 12G-SDI
2 × CAT625 ft starting at $200
2 × CAT625 ft starting at $200
5-Channel Camera Hybrid3 × 12G-SDI
2 × CAT625 ft starting at $250
2 × CAT625 ft starting at $250
8-Channel Mixed Hybrid4 × 12G-SDI
2 × 6G-SDI
2 × CAT625 ft starting at $400
2 × 6G-SDI
2 × CAT625 ft starting at $400
12-Channel Production Loom6 × 12G-SDI
2 × 6G-SDI
4 × CAT625 ft starting at $600
2 × 6G-SDI
4 × CAT625 ft starting at $600
Need a different mix? Specify any combination of 6G-SDI, 12G-SDI and CAT6 totaling up to 12 channels.
Sample prices are 25 ft base estimates using standard cable and connectors. Final pricing depends on sleeving, breakout lengths, labeling, specialty connectors, quantity and other build requirements.
Select the Cable and Connector for Every Channel
6G-SDI VIDEO
6G-SDI Channels
Choose professional 75-ohm coax such as Belden 1855A Mini RG59 for compact routing and HD/3G/6G video applications.
Connector choices:BNC, HD-BNC or DIN 1.0/2.3
12G-SDI / 4K UHD
12G-SDI Channels
Select Belden 4855R Mini RG59 or Belden 4505R RG59 based on flexibility, cable diameter and required run length.
Connector choices:BNC, HD-BNC or DIN 1.0/2.3
NETWORK & CONTROL
CAT6 Channels
Add CAT6 channels for Ethernet, PTZ control, camera control, tally, Dante, intercom or other compatible network functions.
Connector choices:RJ45 or locking EtherCON shells
Customize More Than the Channel Mix
Overall LengthBuilt to the length required for your deployment or installation.
Breakout LengthsSpecify fanout lengths independently at each end.
End ConfigurationsUse matching or mixed connectors from one end to the other.
Channel IdentificationAdd numbered, lettered or color-coded channel labels.
Outer SleevingProtect and organize the channels with expandable braided sleeving.
Deployment DetailsDiscuss fanouts, strain relief and pull-eye requirements.
Built for Professional Production Systems
Broadcast Cameras
PTZ Camera Systems
Production Trucks
Fly Packs
Sports & Venues
Houses of Worship
Corporate AV
Streaming Studios
What to Include in Your Request for Quote
- Total channel count — up to 12 channels
- Signal mix — number of 6G-SDI, 12G-SDI and CAT6 channels
- Connector on each end — BNC, HD-BNC, DIN, RJ45 or EtherCON
- Overall cable length
- Breakout length at each end
- Channel labels or color identification
- Quantity and required delivery date
Request Pricing for Your Custom Hybrid Snake
Send us your channel combination and build requirements. We’ll review the application, confirm the cable and connector choices, and provide a custom quote.
Complete a Request for Quote Call 614-834-4160
