Product Description

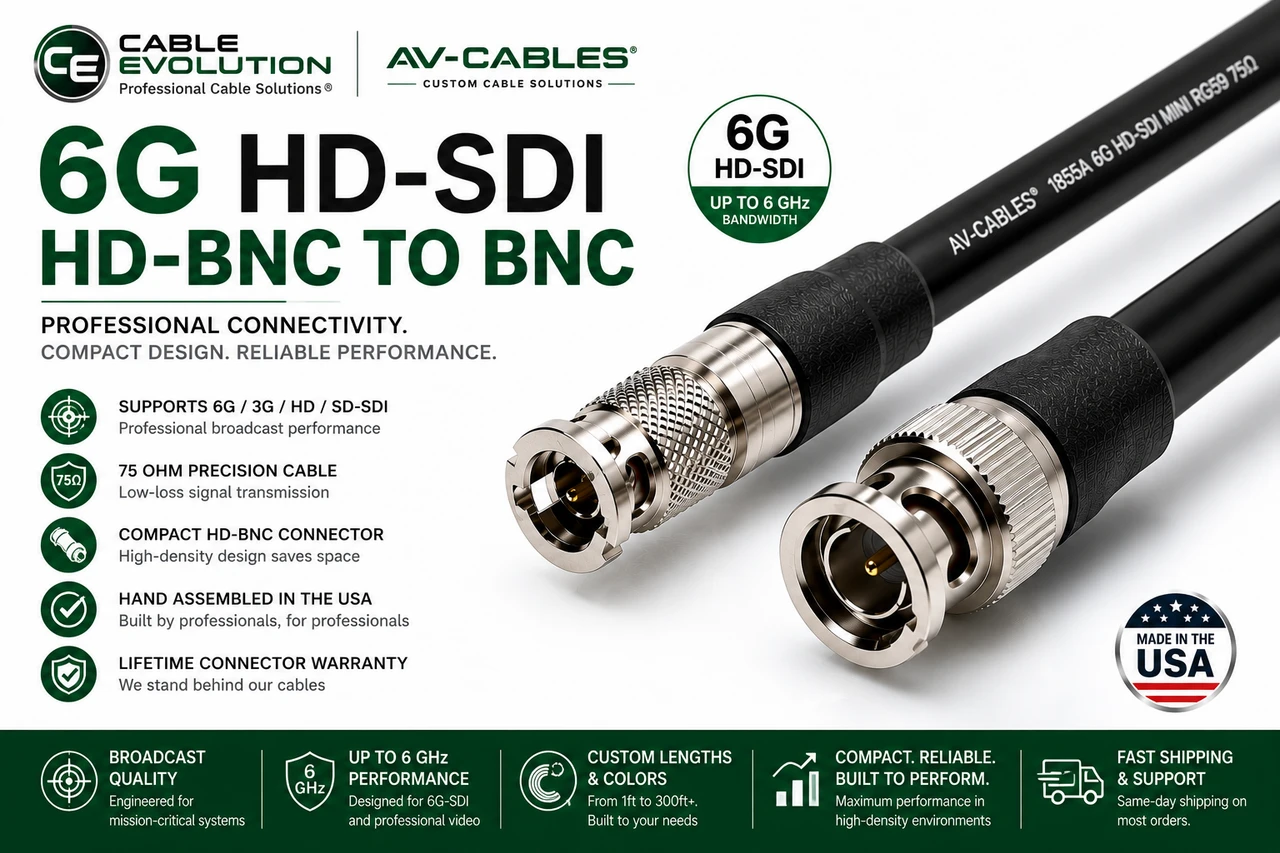

Professional 6G-SDI HD-BNC to BNC Cable
The AV-Cables 6G-SDI HD-BNC to BNC Cable provides a direct connection between professional video equipment using a compact HD-BNC port and equipment using a traditional standard BNC port.
Each assembly is manufactured with genuine Belden 1855A 6 GHz, 75-ohm Mini RG59 coaxial cable, one precision Kings HD-BNC male connector and one precision Kings standard BNC male connector. Every completed cable is hand assembled and individually tested in the USA before shipment.
6G HD-BNC to BNC Cable Key Features
- Genuine Belden 1855A 6 GHz broadcast coaxial cable
- HD-BNC male to standard BNC male configuration
- Genuine Kings professional video connectors
- Precision 75-ohm cable and connector signal path
- Supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI formats
- Designed for professional HD and 4K UHD video systems
- Compact 4.04 mm Mini RG59 construction
- 23 AWG solid bare-copper center conductor
- Bonded foil shield with 95% tinned-copper braid coverage
- Lightweight and flexible for crowded equipment racks
- Available in standard and custom lengths
- Black is standard, by special request blue, red, yellow, green and white jackets available
- Hand assembled and individually tested in the USA
- Lifetime Connector Replacement Warranty
Connect High-Density and Standard BNC Equipment
HD-BNC is a compact professional 75-ohm connector used on broadcast equipment that requires more video connections in a limited amount of panel space. Standard BNC remains widely used on cameras, switchers, monitors, converters and other professional video equipment.
This HD-BNC-to-BNC cable connects those different interfaces while maintaining a professional 75-ohm signal path. It is ideal when one device has an HD-BNC port and the other has a traditional BNC port.
Belden 1855A has a nominal outside diameter of approximately 4.04 mm, making it smaller and lighter than full-size RG59 or RG6. Its compact construction helps simplify cable routing through crowded equipment racks, mobile production trucks, fly packs and camera systems.
Recommended Applications
- HD-BNC video routers to standard BNC equipment
- High-density video patch panels
- Broadcast television studios and control rooms
- Professional production switchers
- Broadcast and cinema cameras
- HD and UHD production monitors
- Multiviewers and video processors
- Video converters and recorders
- Mobile production trucks
- Fly packs and portable production systems
- Post-production and editing systems
- Live production and sports broadcasting
- Corporate AV installations
- Government and OEM systems
Supported SDI Formats and SMPTE Standards
Belden 1855A is a professional 6 GHz Mini RG59 cable designed for compatible SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video equipment.
| SDI Format | Typical Video Application | Applicable Standard |
|---|---|---|
| 6G-SDI | Single-link 4K UHD video | SMPTE ST 2081-1 |
| 3G-SDI | 1080p HD video | SMPTE 424M |
| HD-SDI | Professional HD video | SMPTE 292M |
| SD-SDI | Standard-definition serial digital video | SMPTE 259M |
HD-BNC vs. Standard BNC
HD-BNC and standard BNC can both provide professional 75-ohm SDI performance, but they use different connector sizes and are not directly interchangeable.
| Feature | HD-BNC | Standard BNC |
|---|---|---|
| Nominal impedance | 75 ohms | 75 ohms with professional video connectors |
| Connector size | Compact high-density design | Traditional full-size design |
| Connection style | Bayonet-style locking connection | Bayonet-style locking connection |
| Primary advantage | More connections in limited panel space | Widely used traditional broadcast interface |
| Directly interchangeable? | No—requires a matching HD-BNC port | No—requires a matching standard BNC port |
Belden 1855A Cable Specifications
| Specification | Details |
|---|---|
| Cable manufacturer | Belden |
| Cable model | 1855A |
| Cable construction | Mini RG59 precision broadcast coax |
| Rated bandwidth | 6 GHz |
| Nominal impedance | 75 ohms |
| Center conductor | 23 AWG solid bare copper |
| Insulation | Foam polyethylene |
| Shielding | Bonded foil with 95% tinned-copper braid |
| Outside diameter | Approximately 4.04 mm / 0.159 inches |
| Jacket | PVC, CMR rated |
| Connector configuration | Kings 75-ohm HD-BNC male to standard BNC male |
| Signal compatibility | SD, HD, 3G and 6G-SDI |
| Maximum video format | Up to 4K UHD at 6G-SDI |
| SMPTE standards | SMPTE 259M, 292M, 424M and ST 2081-1 |
| Assembly | Hand assembled in the USA |
| Testing | Every completed cable is individually tested |
| Warranty | Lifetime Connector Replacement Warranty |
Available Lengths and Jacket Colors
Choose from standard lengths ranging from short rack and patch-panel connections through longer studio and production runs. Custom lengths are available when a standard option does not fit your installation.
Available jacket colors include black, blue, red, yellow, green and white. Color availability may vary by selected length and current material inventory.
For longer or mission-critical signal paths, confirm the SDI format, total cable length, number of connection points and equipment requirements before ordering.
Compatible Professional Video Equipment
This cable can connect compatible HD-BNC and standard BNC equipment from manufacturers such as Blackmagic Design, Sony, Ross Video, Grass Valley, Panasonic, Canon, AJA Video Systems, FOR-A, Evertz, Imagine Communications, TVLogic, Marshall Electronics, Leader, Tektronix and Decimator Design.
Confirm the connector type and supported SDI format on both devices before ordering. Manufacturer names are used only to describe potential equipment compatibility.
Why Choose AV-Cables?
AV-Cables manufactures professional audio, video and broadcast cable assemblies using components from trusted professional brands. This assembly combines genuine Belden 1855A Mini RG59 coax with genuine Kings HD-BNC and standard BNC connectors.
- Genuine Belden 1855A 6 GHz broadcast cable
- Genuine Kings professional 75-ohm connectors
- Hand assembled in the USA
- Every completed cable is individually tested
- Standard and custom lengths available
- Multiple jacket colors available
- Custom labeling and matching cable sets available
- Volume production for broadcasters, integrators and OEM customers
- Lifetime Connector Replacement Warranty
Need a custom length, jacket color, labeling option or multiple matching cables? Contact AV-Cables for a custom quote.
View additional products in our HD-BNC Cable category.
6G HD-BNC to BNC Cable FAQs
What connectors are installed on this cable?
This cable has one genuine Kings 75-ohm male HD-BNC connector and one genuine Kings 75-ohm male standard BNC connector.
Is HD-BNC the same as standard BNC?
No. HD-BNC is a smaller high-density connector. HD-BNC and standard BNC have different physical sizes and cannot be connected directly to each other.
Does this cable support 6G-SDI and 4K UHD?
Yes. Belden 1855A is a 6 GHz professional video cable designed for compatible 6G-SDI and 4K UHD equipment.
Does this cable support 12G-SDI?
No. This Belden 1855A assembly is intended for SDI formats through 6G-SDI. Select a Belden 4855R HD-BNC cable when single-link 12G-SDI support is required.
Can this cable carry 3G-SDI, HD-SDI or SD-SDI?
Yes. It is backward compatible with compatible 3G-SDI, HD-SDI and SD-SDI equipment.
Why should I choose Mini RG59?
Mini RG59 is an excellent choice when flexibility, reduced cable weight and compact routing are important. Its smaller diameter is particularly useful in high-density racks, routers, patch panels, fly packs and mobile production systems.
What jacket colors are available?
Standard colors include black, blue, red, yellow, green and white. Availability may vary by selected length and current material inventory.
Are custom lengths available?
Yes. AV-Cables can manufacture custom lengths, matching cable sets and production quantities for studios, broadcast facilities, production companies, integrators, government installations and OEM projects.
