HD-BNC Cables

Professional HD-BNC Cable Assemblies

AV-Cables manufactures professional HD-BNC cable assemblies for broadcast, video production, and professional AV systems requiring compact, high-density 75-ohm video connections.

Choose from 6G-SDI and 12G-SDI assemblies with HD-BNC, standard BNC, female BNC, and DIN 1.0/2.3 connector configurations. Every completed cable is hand assembled in the USA and individually tested before shipment.

6G & 12G
Professional SDI
75Ω
Professional Video
HD-BNC
High-Density Connector
USA
Assembled & Tested

Choose Your HD-BNC Cable Configuration

Check the connector type on both devices, then choose the cable and SDI rating that fit your system. Select a box below to open the product page.

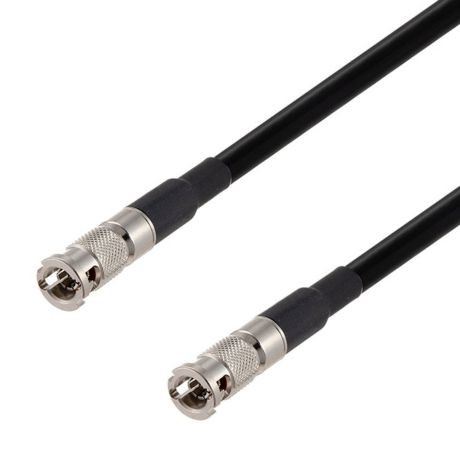

12G-SDI · BELDEN 4855R HD-BNC to HD-BNC Compact connections between two devices with HD-BNC ports. Shop this cable → 6G-SDI · BELDEN 1855A HD-BNC to BNC A compact 6G connection from an HD-BNC port to standard BNC equipment. Shop 6G cable → 12G-SDI · BELDEN 4855R HD-BNC to BNC A lightweight 12G connection from an HD-BNC port to standard BNC equipment. Shop 12G cable → 12G-SDI · BELDEN 4855R HD-BNC to DIN 1.0/2.3 Connect HD-BNC equipment to a professional DIN 1.0/2.3 video port. Shop this cable → 12G-SDI · BELDEN 4505R BNC to HD-BNC Choose full-size RG59 construction for a standard BNC to HD-BNC connection. Shop this cable → 12G-SDI · BELDEN 4855R HD-BNC to Female BNC Connect an existing male BNC cable to equipment with an HD-BNC port. Shop this cable →

Compare HD-BNC Cable Types

Cable SDI Rating Construction Best Fit
Belden 1855A Up to 6G-SDI Mini RG59 Compact HD, 3G, and 6G equipment connections
Belden 4855R Up to 12G-SDI Mini RG59 Lightweight 4K UHD and high-density routing
Belden 4505R Up to 12G-SDI Full-size RG59 12G connections where a larger cable is preferred

What Is an HD-BNC Connector?

HD-BNC is a compact professional 75-ohm coaxial connector used on high-density video equipment. Its smaller footprint lets routers, switchers, monitors, and patch panels fit more video connections into limited panel space.

Check Both Connectors Before Ordering

HD-BNC, standard BNC, and DIN 1.0/2.3 are physically different connectors. Confirm the connector type and gender on both devices. If you need to connect an existing cable with a male BNC plug, select the HD-BNC to female BNC cable.

HD-BNC Cable Applications

Broadcast Racks
High-density routing and patch connections
Routers & Switchers
Professional video distribution systems
Mobile Production
Production trucks and fly packs
Cameras & Monitors
Compact professional video equipment

Need a Different SDI Connector?

If your equipment uses standard BNC or DIN connections at both ends, browse our SDI BNC cables and DIN 1.0/2.3 cables.

Why Choose AV-Cables HD-BNC Assemblies?

Professional Components
Broadcast coax and precision 75-ohm connectors
USA Assembled
Hand assembled by AV-Cables
Individually Tested
Every completed assembly is checked
Connector Warranty
Lifetime connector replacement warranty

HD-BNC Cable FAQs

Is HD-BNC the same as standard BNC?

No. HD-BNC is smaller than standard BNC. The two connector types do not mate directly, so choose a cable with the appropriate connector on each end.

Can I use an HD-BNC cable for 12G-SDI?

Yes, when the complete assembly uses cable and connectors designed for 12G-SDI. Select one of the 12G-rated assemblies above for compatible 12G equipment.

Should I choose Belden 1855A, 4855R, or 4505R?

Choose 1855A for a compact 6G-SDI assembly. Choose 4855R for a compact 12G-SDI assembly. Choose 4505R when you prefer a larger full-size RG59 cable for a 12G connection.

Can AV-Cables build a custom configuration?

Yes. Custom lengths, connector combinations, matching cable sets, and production quantities are available.

Need a Custom HD-BNC Configuration?

Tell us the connector on each device, the required SDI format, and your cable length. We can help select or quote the right assembly.

Contact AV-Cables →  |  Call 614-834-4160
