Product Description
Professional 12G-SDI HD-BNC to Female BNC Cable
The AV-Cables 12G-SDI HD-BNC to Female BNC Cable provides a compact way to connect an existing male BNC cable or output lead to professional video equipment using an HD-BNC port.
Each assembly is manufactured with genuine Belden 4855R 12 GHz, 75-ohm Mini RG59 coaxial cable, one precision HD-BNC male connector and one precision female BNC connector. Every completed cable is hand assembled and individually tested in the USA before shipment.
12G HD-BNC to Female BNC Cable Key Features
- Genuine Belden 4855R 12 GHz broadcast coaxial cable
- HD-BNC male to female BNC configuration
- Precision 12G-rated 75-ohm connectors
- Professional 75-ohm cable and connector signal path
- Supports SD-SDI through 12G-SDI video formats
- Designed for uncompressed 4K UHD video transmission
- Compact Mini RG59 construction
- Approximately 4.04 mm cable diameter
- 23 AWG solid silver-plated copper center conductor
- Bonded foil shield with 95% tinned-copper braid coverage
- Flexible cable section reduces stress on equipment ports
- Available in short equipment and adapter lengths
- Multiple jacket colors available
- Hand assembled and individually tested in the USA
- Lifetime Connector Replacement Warranty
Adapt a Male BNC Cable to an HD-BNC Port
Many existing professional SDI cable runs use standard male BNC connectors, while newer high-density routers, monitors, switchers and other broadcast devices may use smaller HD-BNC ports.
This cable assembly allows the male BNC connector on an existing cable or equipment lead to connect directly to the female BNC end. The HD-BNC male end then connects to the compatible HD-BNC equipment port.
Unlike a rigid adapter, the flexible Belden 4855R cable section helps reduce mechanical stress on the equipment connector. It also provides additional routing flexibility behind crowded racks and high-density equipment panels.
Recommended Applications
- Adapting existing male BNC cables to HD-BNC equipment
- High-density broadcast-video routers
- HD-BNC patch panels
- Production switchers and video processors
- Broadcast monitors and multiviewers
- Video converters and recorders
- Mobile production trucks
- Fly packs and portable production systems
- Broadcast television studios and control rooms
- Post-production facilities
- Live production and sports broadcasting
- Corporate and commercial AV systems
- Government and OEM installations
Supported SDI Formats and SMPTE Standards
Belden 4855R is a professional 12 GHz Mini RG59 cable designed for compatible SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI equipment.
| SDI Format | Typical Video Application | Applicable Standard |
|---|---|---|
| 12G-SDI | Single-link 4K UHD video | SMPTE ST 2082-1 |
| 6G-SDI | 4K UHD video | SMPTE ST 2081-1 |
| 3G-SDI | 1080p HD video | SMPTE 424M |
| HD-SDI | Professional HD video | SMPTE 292M |
| SD-SDI | Standard-definition serial digital video | SMPTE 259M |
Total SDI Signal-Path Length
When this assembly is connected to another BNC cable, both cables become part of the complete SDI signal path. The total transmission distance includes the original cable, this adapter cable and any additional patch points or connections.
| Connected Cable | Adapter Cable | Total Signal Path |
|---|---|---|
| 25 feet | 1 foot | Approximately 26 feet |
| 50 feet | 3 feet | Approximately 53 feet |
| 100 feet | 6 feet | Approximately 106 feet |
Maximum performance depends on the SDI format, combined cable length, cable type, connected equipment, connectors, patch points and installation conditions. Contact AV-Cables before ordering for a critical or unusually long signal path.
Flexible Adapter Cable vs. Rigid Adapter
| Feature | Flexible Cable Assembly | Rigid Adapter |
|---|---|---|
| Port stress | Flexible cable helps reduce leverage on the port | Adapter and cable weight act directly on the port |
| Routing flexibility | Can be routed around adjacent connectors and equipment | Limited by its fixed shape and orientation |
| High-density installations | Better suited to crowded racks and panels | May interfere with nearby connections |
| Available lengths | Multiple short lengths available | Fixed adapter length |
Belden 4855R Cable Specifications
| Specification | Details |
|---|---|
| Cable manufacturer | Belden |
| Cable model | 4855R |
| Cable construction | Mini RG59 precision broadcast coax |
| Rated bandwidth | 12 GHz |
| Nominal impedance | 75 ohms |
| Center conductor | 23 AWG solid silver-plated copper |
| Insulation | Gas-injected foam polyethylene |
| Shielding | Bonded foil with 95% tinned-copper braid |
| Outside diameter | Approximately 4.04 mm / 0.159 inches |
| Jacket | PVC, CMR rated |
| Connector configuration | 75-ohm HD-BNC male to female BNC |
| Signal compatibility | SD, HD, 3G, 6G and 12G-SDI |
| Maximum video format | Up to 4K UHD |
| SMPTE standards | SMPTE 259M, 292M, 424M, ST 2081-1 and ST 2082-1 |
| Assembly | Hand assembled in the USA |
| Testing | Every completed cable is individually tested |
| Warranty | Lifetime Connector Replacement Warranty |
Available Lengths and Jacket Colors
Available lengths include 6 inches, 12 inches, 18 inches, 2 feet, 3 feet, 6 feet and 10 feet. Choose the shortest length that provides enough flexibility and strain relief for your installation.
Available jacket colors include black, blue, red, green, orange and violet. Color availability may vary by selected length and current material inventory.
Why Choose AV-Cables?
AV-Cables manufactures professional audio, video and broadcast cable assemblies using components from trusted professional brands. This assembly combines genuine Belden 4855R Mini RG59 coax with precision 12G-rated HD-BNC and female BNC connectors.
- Genuine Belden 4855R 12 GHz broadcast cable
- Precision 12G-rated 75-ohm connectors
- Flexible alternative to a rigid connector adapter
- Hand assembled in the USA
- Every completed cable is individually tested
- Multiple short lengths and jacket colors available
- Custom labeling and matching cable sets available
- Volume production for broadcasters, integrators and OEM customers
- Lifetime Connector Replacement Warranty
Need a custom length, jacket color, labeling option or multiple matching cables? Contact AV-Cables for a custom quote.
View additional products in our HD-BNC Cable category.
12G HD-BNC to Female BNC Cable FAQs
What connectors are installed on this cable?

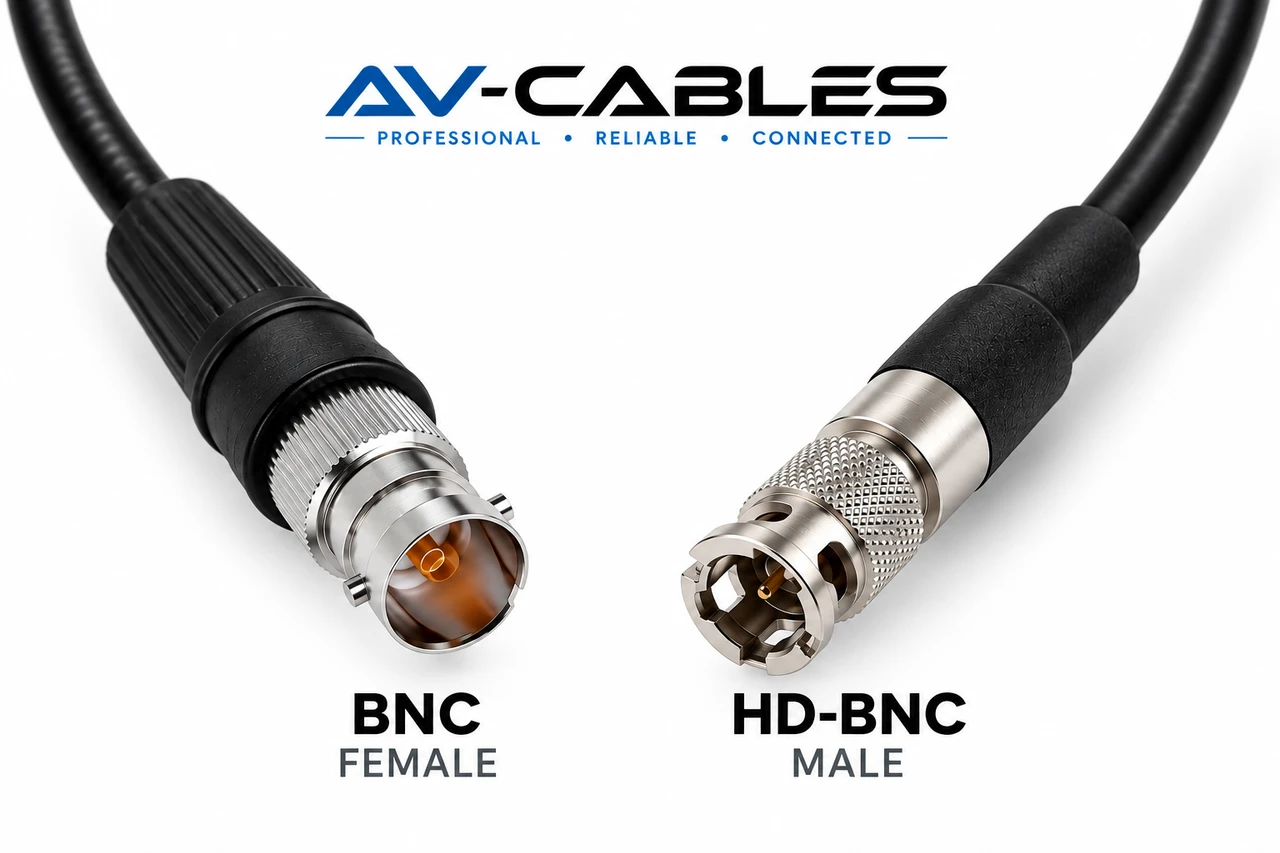

This cable has one precision 75-ohm male HD-BNC connector and one precision 75-ohm female standard BNC connector.
What connects to the female BNC end?
The female BNC end is designed to mate with a male BNC connector, such as the connector installed on an existing SDI cable or equipment lead.
Is HD-BNC the same as standard BNC?
No. HD-BNC is a smaller high-density connector. HD-BNC and standard BNC have different physical sizes and are not directly interchangeable.
Does this cable support 12G-SDI and 4K UHD?
Yes. This assembly uses genuine Belden 4855R 12 GHz coax and precision 12G-rated connectors for compatible 12G-SDI and 4K UHD equipment.
Can this cable carry 3G-SDI or 6G-SDI?
Yes. It is backward compatible with compatible SD-SDI, HD-SDI, 3G-SDI and 6G-SDI equipment.
Does this cable extend the total signal path?
Yes. The length of this adapter cable must be added to the length of the connected BNC cable when determining the complete SDI signal-path length.
Why use a flexible adapter cable instead of a rigid adapter?
The flexible cable section can reduce mechanical stress on the equipment port and makes routing easier behind crowded racks and high-density equipment panels.
Are custom configurations available?
Yes. AV-Cables can manufacture custom lengths, matching cable sets and production quantities for studios, broadcast facilities, production companies, integrators, government installations and OEM projects.
