12G UHD-SDI 4K DIN 1.0/2.3 to DIN 1.0/2.3 Cable – Belden 4855R Mini RG59
AV-Cables.net 12G UHD-SDI DIN 1.0/2.3 to DIN 1.0/2.3 cables are engineered for professional broadcast, live production, and high-performance AV applications where space is limited but signal quality cannot be compromised. Built using premium Belden 4855R Mini RG59 75-ohm coaxial cable and precision 12G-rated DIN 1.0/2.3 connectors, these assemblies deliver reliable transmission of uncompressed 4K UHD video with exceptional signal integrity.
Designed to support today's demanding UHD workflows, these compact cables are ideal for high-density equipment including routers, patch panels, cameras, switchers, multiviewers, monitors, and video servers. The DIN 1.0/2.3 connector's small footprint allows more connections in less rack space while maintaining the performance required for 12G-SDI installations.
Every cable is hand-assembled in the USA by experienced technicians and individually tested to ensure dependable performance in broadcast studios, mobile production trucks, fly packs, post-production facilities, corporate AV systems, and other mission-critical video environments.
Features
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video formats
- Designed for uncompressed 4K UHD, HDR, and high-frame-rate video
- Premium Belden 4855R Mini RG59 75-ohm broadcast coaxial cable
- Precision 12G-rated DIN 1.0/2.3 male connectors
- Compact connector design for high-density broadcast equipment
- Flexible, lightweight cable for easy routing in tight installations
- Excellent return loss and low attenuation for maximum signal integrity
- Hand-assembled and individually tested for quality assurance
- Available in custom lengths and multiple jacket colors
- Meets SMPTE ST 424M, ST 2081-1, and ST 2082-1 standards
Performance

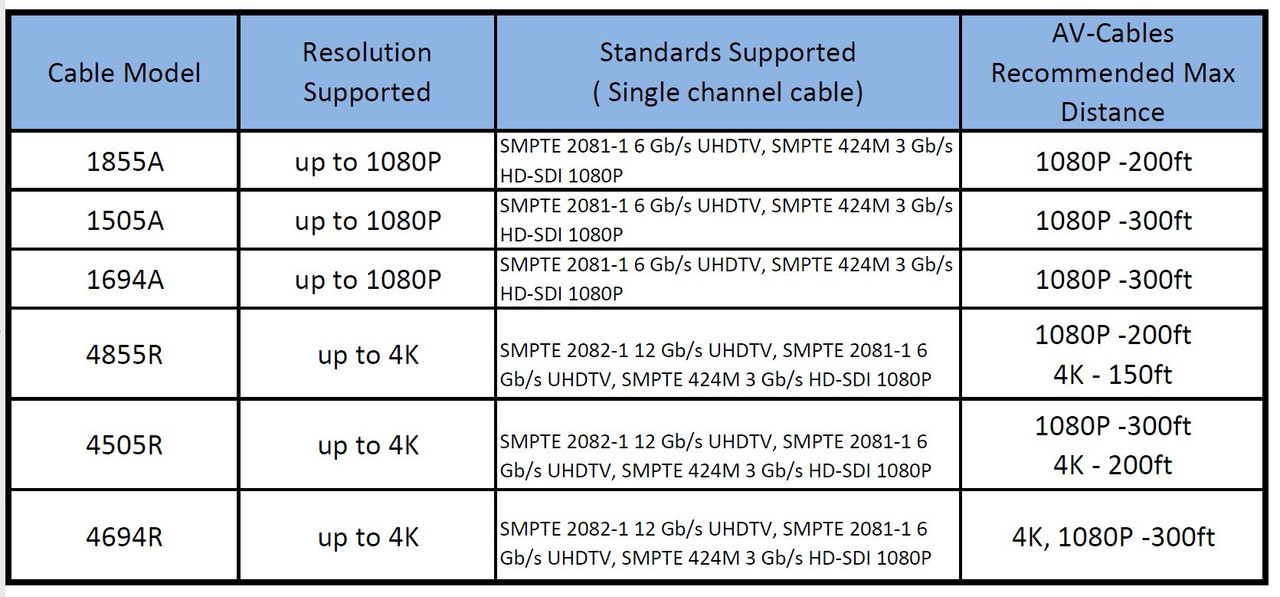

Optimized for modern UHD broadcast systems, these cables provide dependable transmission distances for today's SDI formats:
- 12G-SDI: Up to 150 ft (45 m)
- 6G-SDI: Up to 215 ft (65 m)
- 3G-SDI: Up to 310 ft (94 m)
Engineered to provide greater than -15 dB return loss from 4.5 GHz to 12 GHz, ensuring exceptional signal integrity for demanding 4K UHD and HDR production environments.
Specifications
| Specification | Details |
|---|---|
| Cable | Belden 4855R Mini RG59 |
| Connector A | DIN 1.0/2.3 Male, 75 Ohm |
| Connector B | DIN 1.0/2.3 Male, 75 Ohm |
| Connector Rating | Precision 12G-SDI Rated |
| Impedance | 75 Ohms |
| Center Conductor | Silver-Plated Copper |
| Dielectric | Gas-Injected Foam HDPE |
| Shielding | Duofoil® Bonded Shield with Tinned Copper Braid |
| Jacket | Flexible PVC |
Typical Applications
- Broadcast television studios
- Live event and sports production
- Mobile production trucks
- Video routers and signal distribution systems
- UHD and 4K camera systems
- Production switchers
- Multiviewers and video monitors
- Patch panels and equipment racks
- Fly packs and portable production systems
- Post-production and editing suites
- Professional AV and corporate video installations
Why Choose AV-Cables.net?
For over 20 years, AV-Cables.net has been manufacturing premium broadcast cable assemblies trusted by broadcasters, production companies, system integrators, and AV professionals worldwide. Every cable is built using genuine Belden cable, premium broadcast connectors, and is individually inspected and performance tested before shipment.
Whether you need a single replacement cable or a complete custom cable solution, our 12G UHD-SDI DIN 1.0/2.3 assemblies deliver the reliability, durability, and signal performance professionals depend on for today's high-bandwidth video systems.
