Product Description

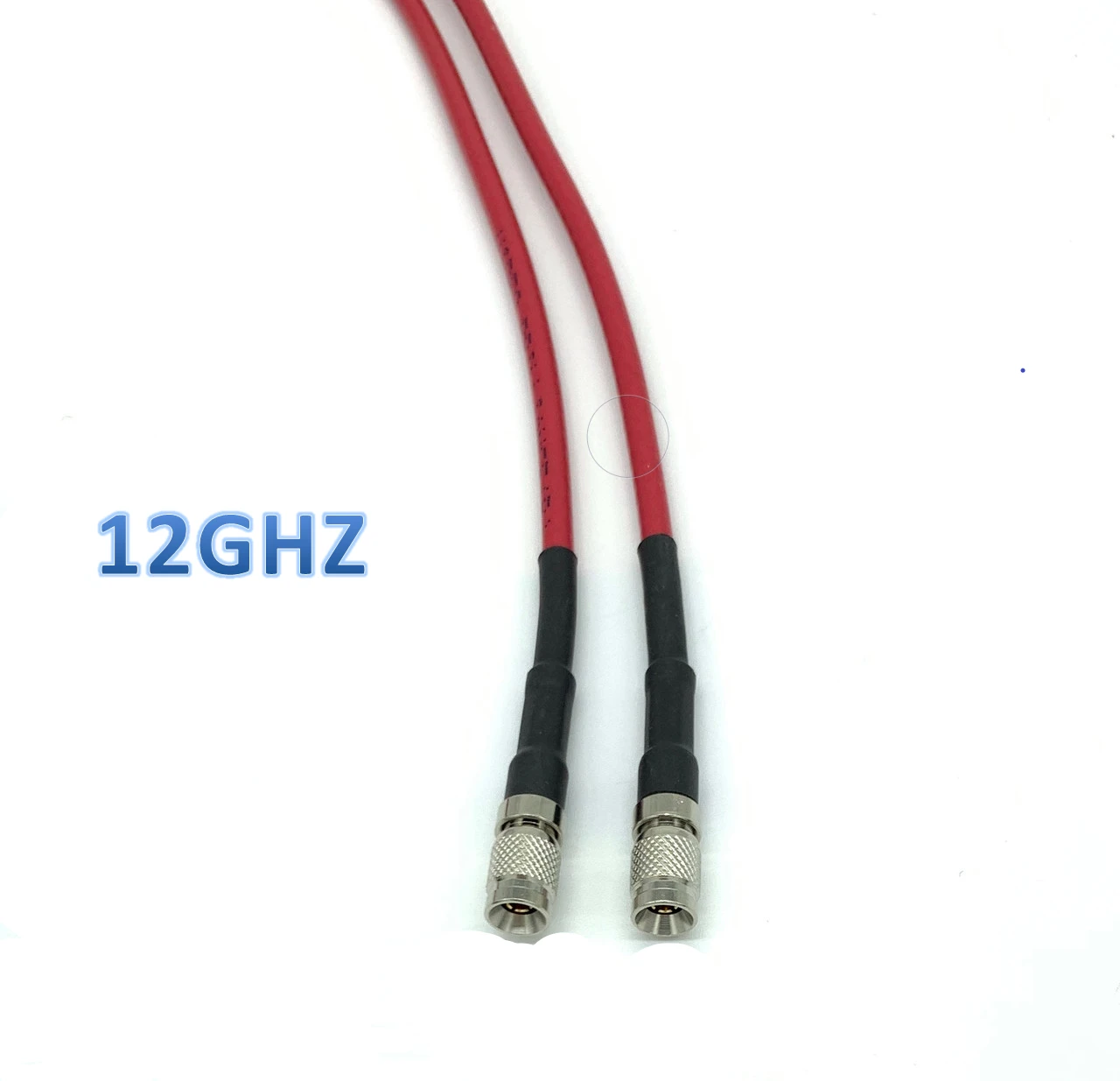

Professional 12G-SDI DIN 1.0/2.3 to DIN Cable
The AV-Cables 12G UHD-SDI DIN 1.0/2.3 to DIN 1.0/2.3 Cable provides professional broadcast-video performance in a lightweight, flexible Mini RG59 construction.
Each assembly is manufactured with genuine Belden 4855R 12 GHz, 75-ohm Mini RG59 coaxial cable and precision 12G-rated male DIN 1.0/2.3 connectors. Every completed cable is hand assembled and individually tested in the USA before shipment.
12G DIN-to-DIN Cable Key Features
- Genuine Belden 4855R 12 GHz broadcast coaxial cable
- DIN 1.0/2.3 male to DIN 1.0/2.3 male configuration
- Precision 12G-rated 75-ohm connectors
- Professional 75-ohm cable and connector signal path
- Supports SD-SDI through 12G-SDI video formats
- Designed for uncompressed 4K UHD video transmission
- Compact Mini RG59 construction
- Approximately 4.04 mm cable diameter
- 23 AWG solid silver-plated copper center conductor
- Bonded foil shield with 95% tinned-copper braid coverage
- Lightweight and flexible for high-density installations
- Standard and custom lengths available
- Multiple jacket colors available
- Hand assembled and individually tested in the USA
- Lifetime Connector Replacement Warranty
Designed for Professional DIN 1.0/2.3 Equipment
DIN 1.0/2.3 is a compact 75-ohm connector used on professional broadcast-video equipment where panel space is limited. Its small footprint allows manufacturers to install more SDI connections on routers, switchers, monitors and other high-density equipment.
This DIN-to-DIN cable provides a direct connection between two compatible devices without requiring separate adapters. Belden 4855R Mini RG59 keeps the complete assembly lightweight and easy to route through crowded racks, production trucks and portable systems.
Recommended Applications
- Broadcast television studios and control rooms
- High-density video routers
- Professional video patch panels
- 4K UHD production switchers
- Broadcast monitors and multiviewers
- Video converters and signal processors
- Production and cinema camera systems
- Mobile production trucks
- Fly packs and portable production systems
- Post-production and editing systems
- Live production and sports broadcasting
- Corporate and commercial AV installations
- Government and OEM systems
Supported SDI Formats and SMPTE Standards
Belden 4855R is a professional 12 GHz Mini RG59 cable designed for compatible SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI equipment.
| SDI Format | Typical Video Application | Applicable Standard |
|---|---|---|
| 12G-SDI | Single-link 4K UHD video | SMPTE ST 2082-1 |
| 6G-SDI | 4K UHD video | SMPTE ST 2081-1 |
| 3G-SDI | 1080p HD video | SMPTE 424M |
| HD-SDI | Professional HD video | SMPTE 292M |
| SD-SDI | Standard-definition video | SMPTE 259M |
Approximate SDI Transmission Distances
| SDI Format | Typical Application | Approximate Maximum Distance |
|---|---|---|
| 12G-SDI | 4K UHD video | Up to approximately 150 feet |
| 6G-SDI | 4K UHD video | Up to approximately 215 feet |
| 3G-SDI | 1080p HD video | Up to approximately 300 feet |
Transmission distances are approximate. Actual performance depends on the connected equipment, video format, connectors, patch points, installation conditions and total signal path.
DIN 1.0/2.3 vs. Standard BNC
| Feature | DIN 1.0/2.3 | Standard BNC |
|---|---|---|
| Nominal impedance | 75 ohms | 75 ohms with professional video connectors |
| Connector size | Compact high-density design | Traditional full-size design |
| Common use | Routers, monitors and high-density equipment | Cameras, switchers and traditional broadcast equipment |
| Primary advantage | More connections in limited panel space | Widely used traditional broadcast interface |
| Directly interchangeable? | No—requires a matching DIN port | No—requires a matching BNC port |
Belden 4855R Cable Specifications
| Specification | Details |
|---|---|
| Cable manufacturer | Belden |
| Cable model | 4855R |
| Cable construction | Mini RG59 precision broadcast coax |
| Rated bandwidth | 12 GHz |
| Nominal impedance | 75 ohms |
| Center conductor | 23 AWG solid silver-plated copper |
| Insulation | Gas-injected foam polyethylene |
| Shielding | Bonded foil with 95% tinned-copper braid |
| Outside diameter | Approximately 4.04 mm / 0.159 inches |
| Jacket | PVC, CMR rated |
| Connector configuration | DIN 1.0/2.3 male to DIN 1.0/2.3 male |
| Signal compatibility | SD, HD, 3G, 6G and 12G-SDI |
| Maximum video format | Up to 4K UHD |
| SMPTE standards | SMPTE 259M, 292M, 424M, ST 2081-1 and ST 2082-1 |
| Assembly | Hand assembled in the USA |
| Testing | Every completed cable is individually tested |
| Warranty | Lifetime Connector Replacement Warranty |
Available Lengths and Jacket Colors
Available lengths range from 1.5 feet through 200 feet. The 200-foot option is limited to formats through 6G-SDI. Custom lengths may be available when a standard option does not fit your installation.
Available jacket colors include black, blue, red, green, yellow, orange and violet. Color availability may vary by selected length and current material inventory.
Why Choose AV-Cables?
- Genuine Belden 4855R 12 GHz broadcast cable
- Precision 12G-rated 75-ohm DIN connectors
- Hand assembled in the USA
- Every completed cable is individually tested
- Standard and custom lengths available
- Multiple jacket colors available
- Custom labeling and matching cable sets available
- Volume production for broadcasters, integrators and OEM customers
- Lifetime Connector Replacement Warranty
Need a custom length, jacket color, labeling option or multiple matching cables? Contact AV-Cables for a custom quote.
View additional products in our DIN 1.0/2.3 Broadcast Video Cable category.
12G DIN 1.0/2.3 Cable FAQs
What connectors are installed on this cable?
This cable has a precision 75-ohm male DIN 1.0/2.3 connector on both ends.
Does this cable support 12G-SDI and 4K UHD?
Yes. This assembly uses genuine Belden 4855R 12 GHz coax and precision 12G-rated connectors for compatible 12G-SDI and 4K UHD equipment.
Can this cable carry 3G-SDI or 6G-SDI?
Yes. It is backward compatible with compatible SD-SDI, HD-SDI, 3G-SDI and 6G-SDI equipment.
Does the 200-foot cable support 12G-SDI?
No. The 200-foot option is intended for formats through 6G-SDI. For 12G-SDI applications, choose a length of 150 feet or shorter.
Is DIN 1.0/2.3 the same as BNC or HD-BNC?
No. DIN 1.0/2.3, standard BNC and HD-BNC are different physical connector types. Confirm that both devices have compatible female DIN 1.0/2.3 ports before ordering.
Why choose Mini RG59?
Mini RG59 is a strong choice when flexibility, reduced cable weight and compact routing are important. Its smaller diameter is especially useful in crowded racks, routers, patch panels, fly packs and mobile production systems.
Are custom lengths available?
Yes. AV-Cables can manufacture custom lengths, matching cable sets and production quantities for studios, broadcast facilities, production companies, integrators, government installations and OEM projects.
