Product Description

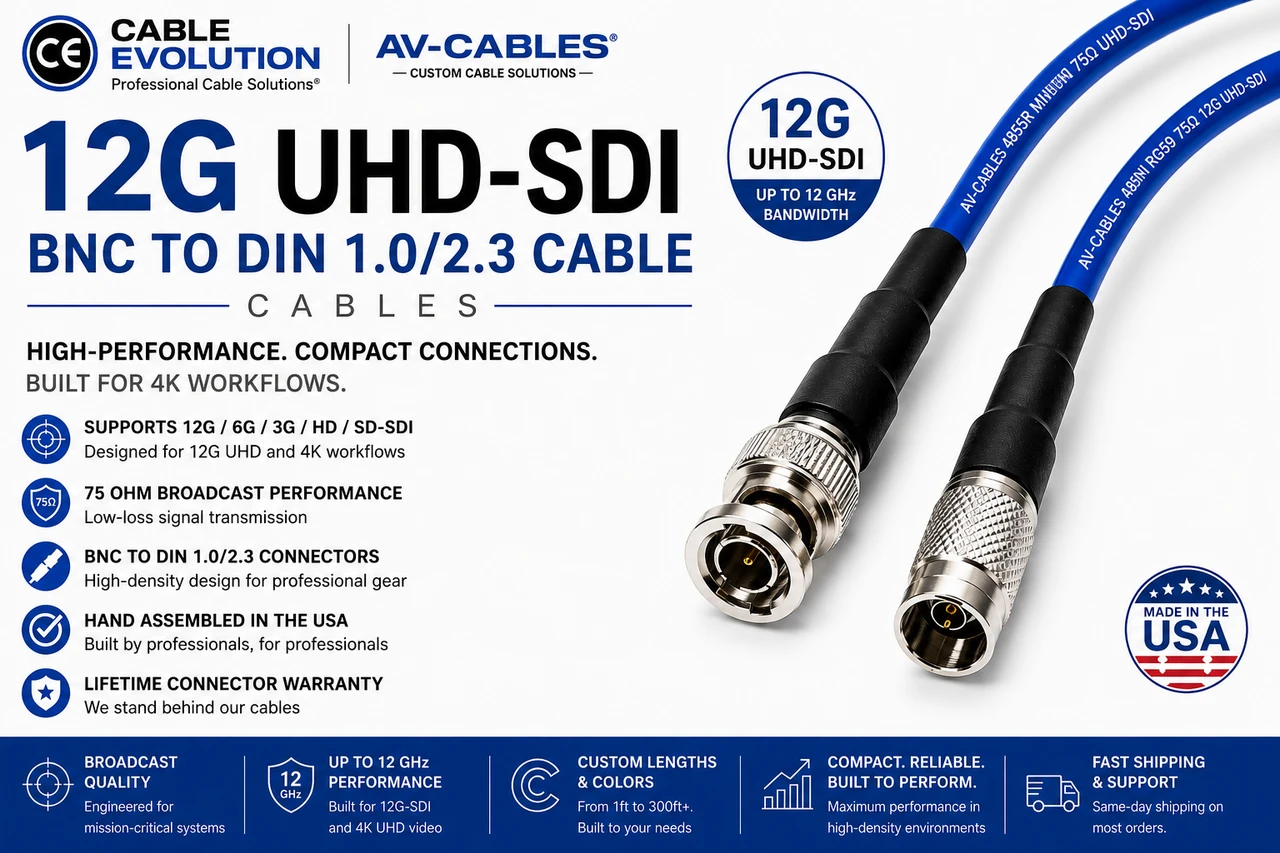

12G UHD-SDI 4K BNC to DIN 1.0/2.3 Cable – Belden 4855R Mini RG59
AV-Cables.net 12G UHD-SDI BNC to DIN 1.0/2.3 cables are engineered for professional broadcast, live production, cinema, and AV installations that require exceptional signal integrity and dependable performance. Built with genuine Belden 4855R Mini RG59 75-ohm coaxial cable and precision 12G-rated BNC and DIN 1.0/2.3 connectors, these assemblies provide reliable transmission of uncompressed 4K UHD video at data rates up to 12 Gb/s.
Designed for today's high-bandwidth video systems, these cables provide the critical connection between cameras, production switchers, routers, monitors, multiviewers, patch panels, video servers, and other professional broadcast equipment. The compact Mini RG59 cable offers excellent flexibility for routing through equipment racks, mobile production trucks, fly packs, and other space-constrained installations without sacrificing performance.
Every cable is hand-assembled in the USA and individually tested to ensure superior signal integrity, low return loss, and reliable operation in mission-critical broadcast environments.
Need a custom solution? AV-Cables.net manufactures cables in custom lengths, multiple jacket colors, and multi-channel bundled (snake) configurations. We also offer volume pricing for broadcasters, system integrators, rental houses, OEMs, and production companies. Contact us for reseller pricing—we'll work to provide the best value backed by knowledgeable service and fast turnaround.
Features
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video formats
- Optimized for uncompressed 4K UHD, HDR, and high-frame-rate video
- Genuine Belden 4855R Mini RG59 75-ohm broadcast coaxial cable
- Precision 12G-rated BNC to DIN 1.0/2.3 connectors
- Flexible Mini RG59 construction for easy cable routing
- Excellent return loss and low attenuation for maximum signal integrity
- Ideal for broadcast studios, mobile production, and high-density equipment racks
- Hand-assembled and individually performance tested
- Available in custom lengths, jacket colors, and bundled snake assemblies
- Fully compliant with SMPTE ST 424M, ST 2081-1, and ST 2082-1 standards
Performance
Engineered for today's UHD broadcast infrastructure, these cables provide dependable transmission distances across all SDI formats:
- 12G-SDI: Up to 150 ft (45 m)
- 6G-SDI: Up to 215 ft (65 m)
- 3G-SDI: Up to 310 ft (94 m)
Return loss exceeds -15 dB from 4.5 GHz through 12 GHz, providing exceptional signal integrity for demanding 4K UHD and HDR production workflows.
Specifications
| Specification | Details |
|---|---|
| Cable | Belden 4855R Mini RG59 |
| Connector A | BNC Male, 75 Ohm |
| Connector B | DIN 1.0/2.3 Male, 75 Ohm |
| Connector Rating | Precision 12G-SDI Rated |
| Impedance | 75 Ohms |
| Center Conductor | Silver-Plated Copper |
| Dielectric | Gas-Injected Foam HDPE |
| Shielding | Duofoil® Bonded Shield with Tinned Copper Braid |
| Jacket | Flexible PVC (Available in Multiple Colors) |
| Standards | SMPTE ST 424M, ST 2081-1, ST 2082-1 |
Typical Applications
- Broadcast television studios
- Live event and sports production
- Mobile production trucks
- Fly packs and portable production systems
- UHD and 4K camera systems
- Production switchers
- Video routers and patch panels
- Video monitors and multiviewers
- Signal converters and processing equipment
- Post-production and editing suites
- Corporate AV and digital media systems
Why Choose AV-Cables.net?
AV-Cables.net has been manufacturing professional broadcast cable assemblies for over 20 years. Every cable is built using genuine Belden broadcast cable, premium 12G-rated connectors, and is individually inspected and tested before shipment to ensure dependable performance.
Whether you need a single replacement cable or a large custom production run, our experienced technicians can build the exact cable assembly your project requires. With custom lengths, bundled snake cables, fast turnaround, and competitive volume pricing, AV-Cables.net is the trusted choice for broadcasters, production companies, rental houses, and AV integrators.
