Product Description
6G HD-SDI DIN 1.0/2.3 to BNC Cable – Belden 1855A Mini RG59
AV-Cables.net custom DIN 1.0/2.3 to BNC HD-SDI cables are engineered for professional broadcast, production, and AV applications requiring reliable signal transmission in a compact, flexible cable assembly. Manufactured using genuine Belden 1855A 23 AWG miniature 75-ohm coaxial cable and precision Kings true 75-ohm DIN 1.0/2.3 and BNC connectors, these assemblies deliver outstanding performance for HD-SDI, 3G-SDI, and 6G-SDI video systems.
Belden 1855A is widely recognized throughout the broadcast industry for its low attenuation, excellent flexibility, and small bend radius, making it the ideal choice for cameras, production switchers, patch panels, routers, monitors, fly packs, mobile production trucks, and other professional video equipment where space is limited.
Every cable is hand-assembled in the USA by experienced technicians, individually tested, clearly labeled, and finished with professional heat-shrink strain relief for maximum durability and long-term reliability.
Need custom cable assemblies or volume pricing? AV-Cables.net offers competitive pricing for broadcasters, production companies, AV integrators, rental houses, and resellers. Contact our sales team at 614-834-4160 for large orders, custom cable solutions, and current lead times.
Features
- Supports HD-SDI, 3G-SDI, and 6G-SDI video formats
- Compatible with 1080p HD, 2K, UHD, and select 4K workflows
- Genuine Belden 1855A Mini RG59 75-ohm broadcast coaxial cable
- Precision Kings true 75-ohm DIN 1.0/2.3 and BNC connectors
- Professional 3-piece crimp connector design for superior reliability
- Flexible miniature cable with excellent bend radius
- Low attenuation and superior shielding for outstanding signal integrity
- Heat-shrink strain relief for increased cable durability
- Individually assembled and performance tested
- Available in custom lengths from 6 inches to 200 feet
- Standard colors: Black, Red, Green, Blue, White, and Yellow
- Additional jacket colors available upon request
- Same-day shipping on most standard orders
- Made in the USA
Performance
Designed for today's professional HD and UHD production environments, these cables provide reliable performance across multiple SDI formats.
- 6G-SDI for UHD video applications
- 3G-SDI for 1080p HD production
- Compatible with HD-SDI and SD-SDI equipment
- Belden 1855A can be used in dual-link configurations for select 4K workflows
- Excellent return loss and low attenuation help maintain maximum signal quality over longer cable runs
Specifications
| Specification | Details |
|---|---|
| Cable | Belden 1855A Mini RG59 |

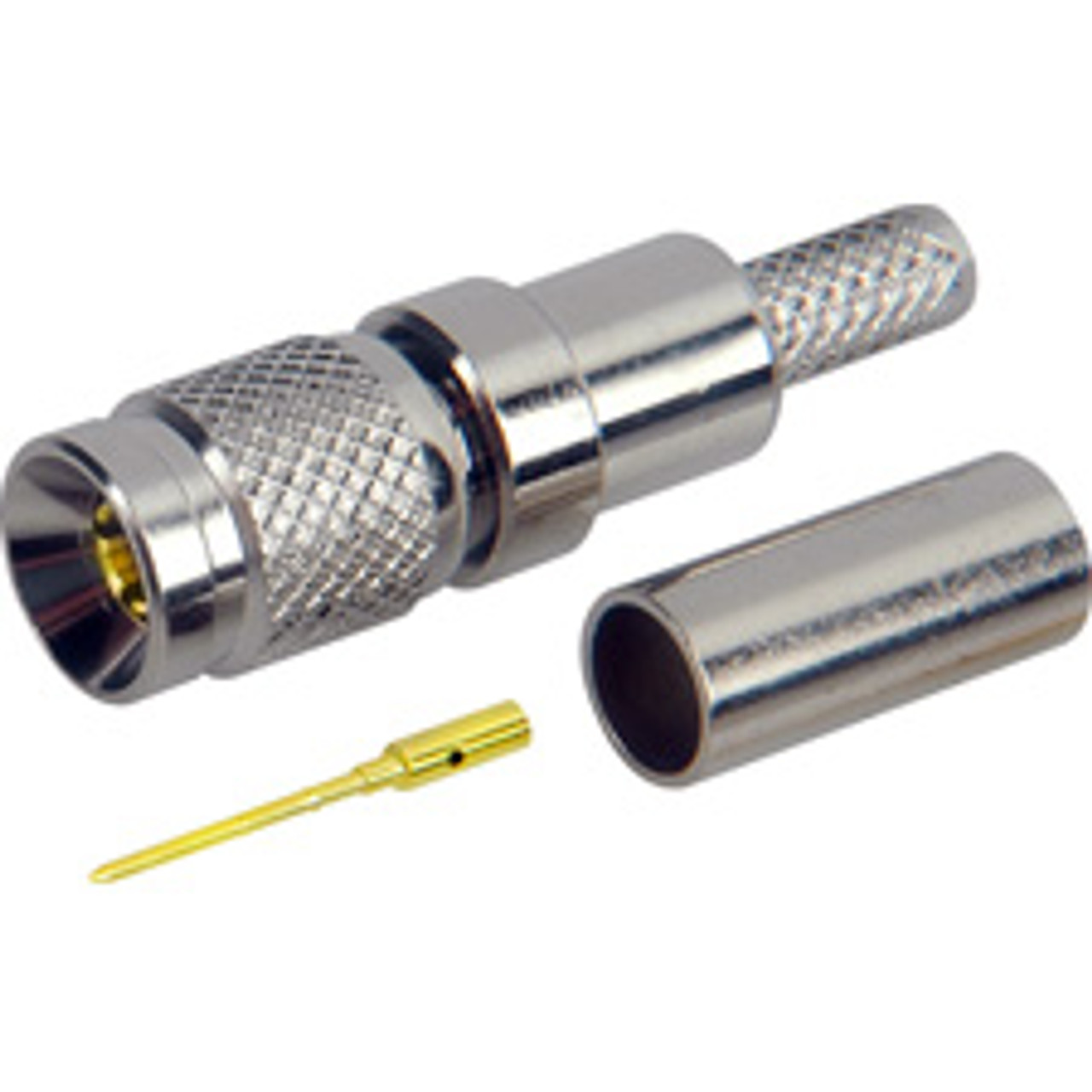

| Connector A | Kings DIN 1.0/2.3 Male, True 75 Ohm |
| Connector B | Kings BNC Male, True 75 Ohm |
| Connector Style | Professional 3-Piece Crimp |
| Impedance | 75 Ohms |
| Center Conductor | 23 AWG Solid Bare Copper |
| Dielectric | Gas-Injected Foam Polyethylene |
| Shielding | Duofoil® Shield with Tinned Copper Braid |
| Jacket | Flexible PVC |
| Bandwidth | Up to 6 GHz |
| Standards | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE ST 2081-1 |
Typical Applications
- Broadcast television studios
- Camera and camera control systems
- Production switchers
- Video routers and patch panels
- Mobile production trucks
- Fly packs
- Multiviewers and monitoring systems
- Post-production facilities
- Digital cinema equipment
- Corporate AV systems
- Educational and government video installations
Why Choose AV-Cables.net?
For over 20 years, AV-Cables.net has manufactured premium broadcast cable assemblies trusted by broadcasters, production companies, system integrators, rental houses, and AV professionals across North America.
Every cable is built using genuine Belden broadcast cable and precision Kings connectors, then individually inspected and tested before shipment. Our professional 3-piece crimp connector design provides superior mechanical strength and long-term reliability compared to molded alternatives.
Every cable includes:
- Hand assembly in the USA
- Individual performance testing
- Clearly labeled cable length
- Reusable hook-and-loop cable strap
- 30-Day Replacement Warranty
- Lifetime Connector Replacement Warranty
Whether you need a single custom cable or hundreds of production-ready assemblies, AV-Cables.net delivers the quality, performance, and service professionals depend on.
