    • 3G/6G High Density BNC to BNC HD SDI Mini RG59 Cable

    AV-Cables.net

    $24.00
    (No reviews yet) Write a Review
    SKU:
    SDI-HBB-05
    Availability:
    Custom 1-2 Day lead time
    Weight:
    0.20 LBS
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

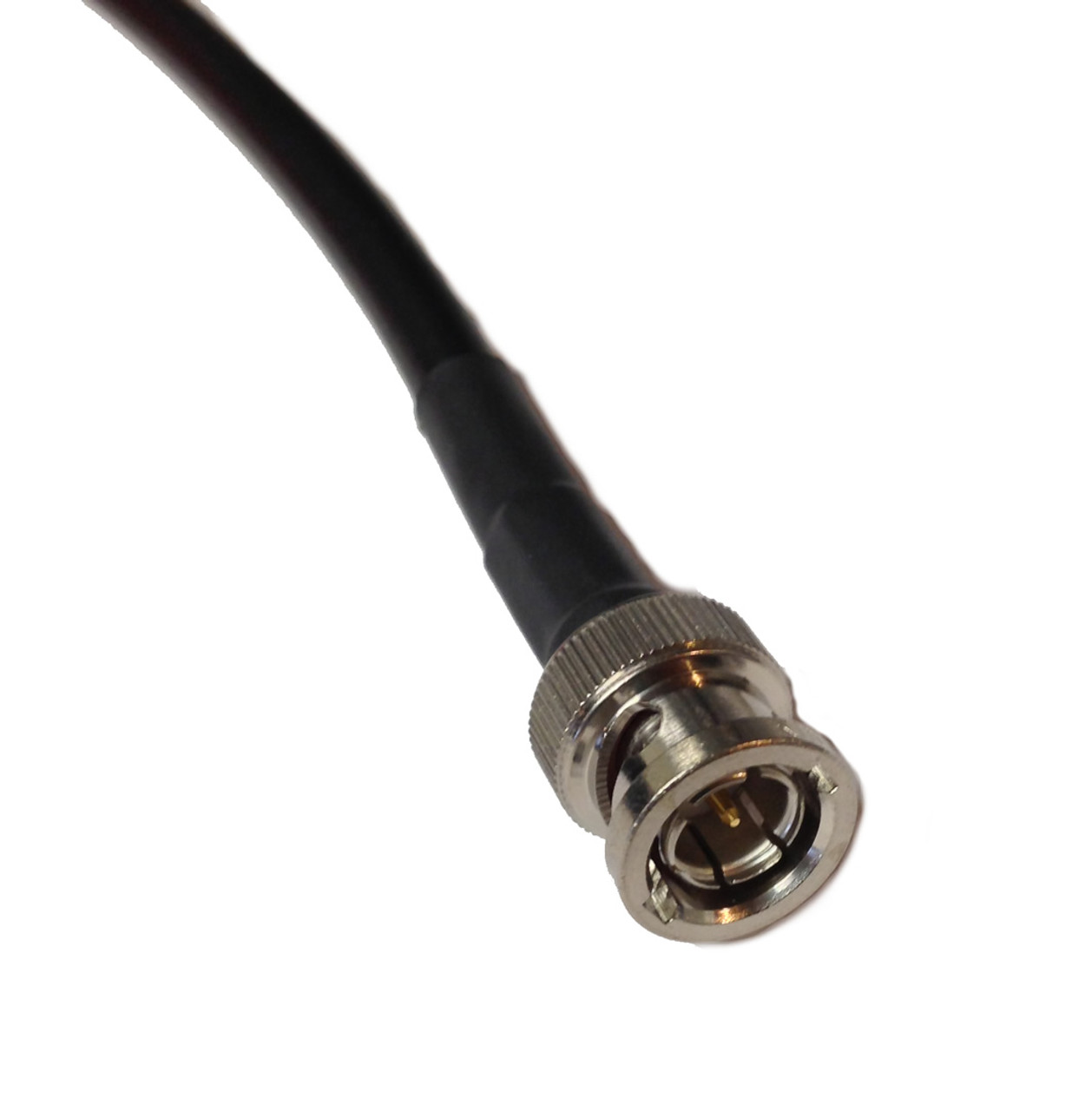

    High-Density BNC to BNC Mini RG59 HD-SDI Cable

    AV-Cables.net High-Density BNC (HD-BNC) to BNC HD-SDI cables are designed for professional broadcast, production, and AV applications where space savings, flexibility, and signal integrity are essential. Featuring a compact HD-BNC connector—significantly smaller than a standard BNC—these cables are ideal for high-density equipment panels, routers, cameras, monitors, and video processing equipment.

    Built with premium Belden 1855A miniature 75-ohm coaxial cable, these assemblies provide excellent electrical performance with low attenuation, a 6 GHz bandwidth, and superior shielding for reliable HD-SDI video transmission. The lightweight, flexible design offers a smaller bend radius, making installation easier in crowded racks, mobile production trucks, fly packs, and broadcast facilities.

    Each cable is custom-built to order using genuine Kings HD-BNC and BNC connectors and is performance tested to ensure dependable operation in demanding professional environments.

    Features

    • High-Density BNC (HD-BNC) Male to BNC Male configuration
    • Premium Belden 1855A Mini RG59 coaxial cable
    • Supports HD-SDI and professional 75-ohm video applications
    • Compact HD-BNC connector saves valuable panel space
    • Low-loss foam dielectric for superior signal performance
    • Double-shielded construction for enhanced EMI protection
    • Lightweight, flexible design with a tight bend radius
    • Genuine Kings connectors for maximum reliability
    • Custom manufactured to order
    • Available lengths from 6 inches to 200 feet

    Available Cable Colors

    • Black
    • Red
    • Green
    • Blue
    • White
    • Yellow

    Additional colors may be available upon request.

    Specifications

    • Cable Type: Belden 1855A Miniature RG59 Coaxial Cable
    • Impedance: 75 Ohms
    • Bandwidth: Up to 6 GHz
    • Center Conductor: 23 AWG Solid Copper
    • Shielding: Double Shield
    • Dielectric: Low-Loss Foam
    • Connector A: HD-BNC Male
    • Connector B: BNC Male
    • Connector Brand: Kings Electronics

    Applications

    • Broadcast and television studios
    • Video routing and patching systems
    • Production and cinema cameras
    • Mobile production trucks
    • Fly packs and portable production systems
    • Professional AV installations
    • Video monitoring equipment

    Ordering Information

    • Custom lengths available from 6 inches to 200 feet
    • Same-day shipping on most orders
    • Large quantity orders may require additional lead time

    For large orders or expedited shipping information, please call 614-834-4160.

    Other Details

    Lifetime Warranty
