5 Channel 3G HD SDI BNC Snake Cable

Product Description

AV-Cables 5 Channel 3G HD SDI BNC Snake Cable

Custom 3G HD SDI Snakes support a full HD signal up to 200ft long utilizing a Mini RG59 Cable and Kings BNC Connectors

Available with BNC, Din 1.0/2.3, HD BNC and Female connectors

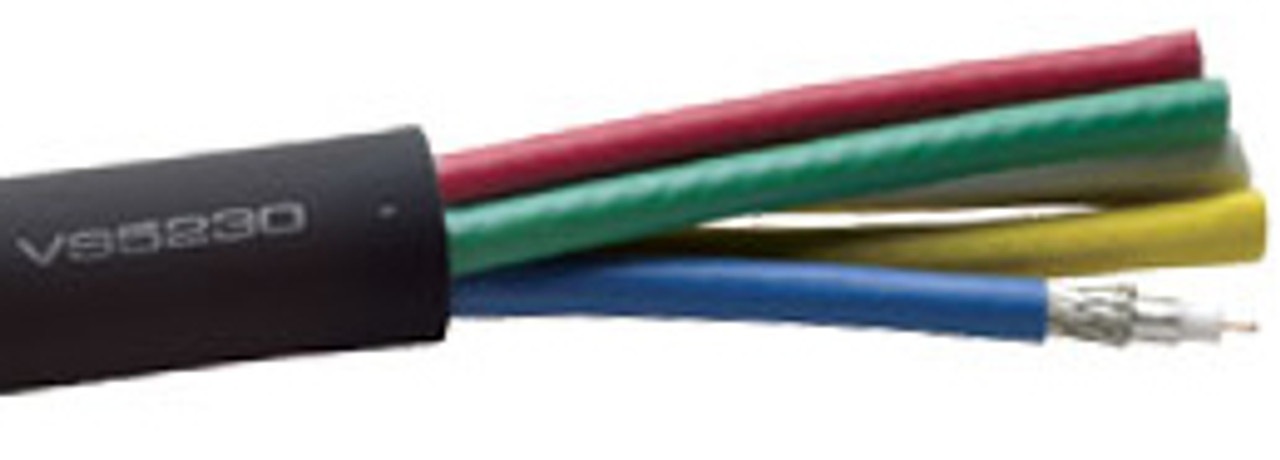

The PRGB snake series features 3G, High Definition coaxial elements that have the lowest attenuation of the miniature types and meet or exceed SMPTE 292M standards for uncompressed HD video. Each coaxial element is constructed from a precision 23 gage solid conductor, gas injected dielectric, and broadband foil and braid shield. Commonly used for high resolution component analog video, the bandwidth and precision tolerances of the VS5230 also allow it to be used as a multi-channel HD/SDI video snake. The outer jacket is extruded from an all-weather TPE jacket that is both flexible and abrasion resistant.

• True 75 ohm BNC connectors
• Thin Profile
• Low Attenuation & Return Loss
• Precision 75 Ohm Impedance
• 4.5GHz Bandwidth for Uncompressed HD Video
• High Velocity of Propagation
• Extra-flexible
• Gas-injected Foam Polyethylene Dielectric
• Full Copper Braid & Foil Shield
• 100% Sweep Tested
• All-weather TPE Master Jacket
• High Definition or Standard Definition Serial Digital Video
• Digital Audio (AES3id or SPDIF)

These cables are custom made to order.

Leads times can vary. Please call to get shipment lead times
