Product Description

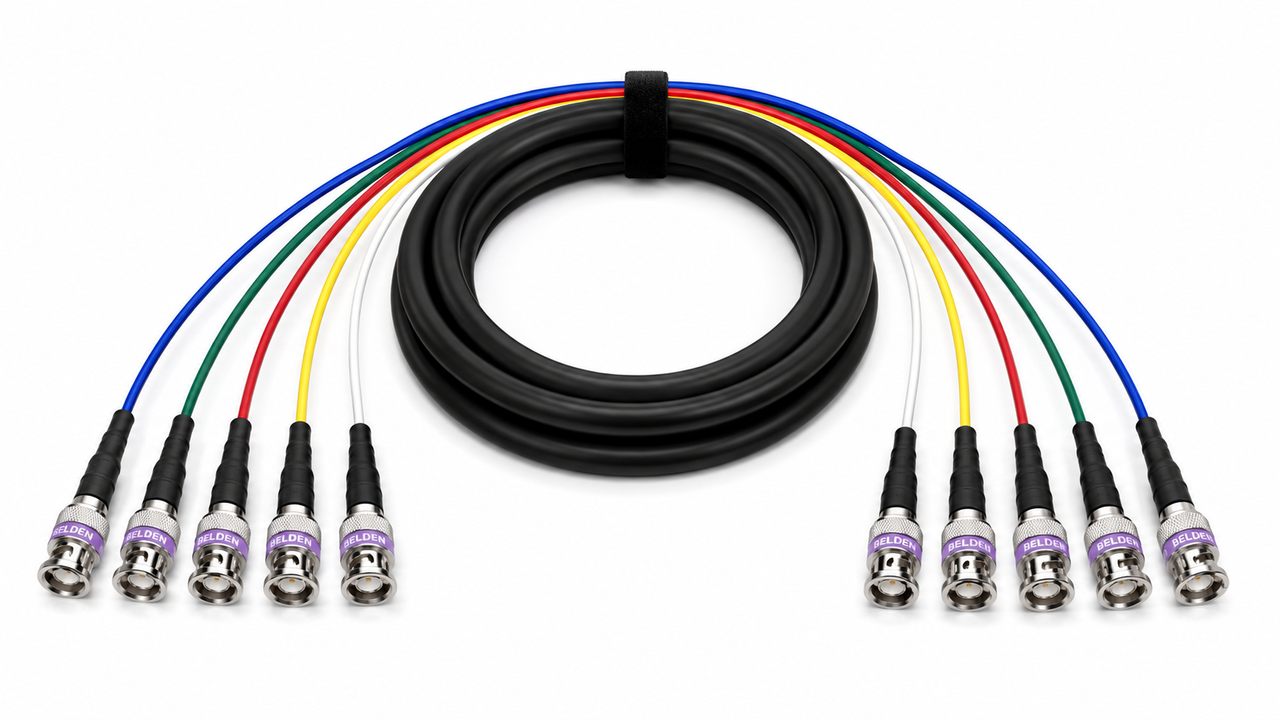

Cable Evolution 5-Channel 12G UHD 4K SDI BNC Snake Cable

Belden 4855R Mini RG59 | Professional Broadcast Multichannel Video Cable

The Cable Evolution 5-Channel 12G UHD SDI Snake Cable is engineered for professional broadcast, live production, mobile production, and AV integration applications that require multiple high-performance video connections in a single, organized cable assembly. Built using genuine Belden 4855R Mini RG59 coaxial cable, this compact snake supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video formats while delivering exceptional signal integrity for today's demanding 4K UHD workflows.

Designed to simplify installations and reduce cable clutter, this 5-channel assembly combines five individually shielded 75 Ohm coaxial cables into one flexible, durable snake. The rugged PVC outer jacket provides excellent protection while remaining flexible enough for studio, broadcast truck, fly pack, and field production use.

Each cable is precision stripped using our automated cable processing equipment, then hand assembled and individually tested by our technicians to ensure dependable performance in mission-critical applications.

Available with BNC, HD-BNC (High Density BNC), DIN 1.0/2.3, or female connector configurations, these custom-built assemblies are manufactured to your exact length and connector requirements.

Features

• Genuine Belden 4855R 12G Mini RG59 broadcast coax
• Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
• Designed for uncompressed 4K UHD video transmission
• Five individually shielded 75 Ohm coaxial channels
• Compact, space-saving multicore snake design
• Available with BNC, HD-BNC, DIN 1.0/2.3, or female connectors
• Flexible PVC outer jacket for studio and field production
• Color-coded fan-outs for quick channel identification
• Precision machine stripped and hand assembled
• Individually tested before shipment
• Custom lengths and fan-out configurations available
• Made in the USA

Ideal Applications

The Cable Evolution 5-Channel 12G SDI Snake is perfect for:

• Broadcast television
• Live event production
• OB and mobile production trucks
• Camera chains
• Video switchers
• Routers and patch bays
• Video servers and recorders
• Production studios
• Fly packs
• Digital signage
• Corporate AV installations
• Houses of worship

Technical Specifications

Cable

• Belden 4855R Mini RG59
• Five individually shielded coaxial channels
• Precision 75 Ohm impedance
• Silver-plated copper center conductor
• Gas-injected foam HDPE dielectric
• Duofoil shield with tinned copper braid
• Flexible PVC outer jacket

Performance

• Supports 12G-SDI transmission up to approximately 150 feet
• Fully compatible with 6G, 3G, HD, and SD-SDI systems
• Meets SMPTE ST 2082-1, ST 2081-1, and SMPTE 424M standards

Electrical Characteristics

• Nominal Impedance: 75 Ohms
• Conductor DC Resistance: 19.7 Ω/1000 ft @ 20°C
• Shield Resistance: 3.9 Ω/1000 ft @ 20°C
• Nominal Inductance: 0.107 µH/ft
• Capacitance (Conductor to Shield): 16.3 pF/ft

Why Choose Cable Evolution?

Cable Evolution snake cables are designed for professionals who demand exceptional reliability, clean cable management, and uncompromising signal performance. By combining multiple SDI channels into a single durable assembly, installation becomes faster, cable routing is simplified, and production environments remain cleaner and more organized.

Every assembly is custom built using premium broadcast components and backed by the craftsmanship and quality control that professional broadcasters, production companies, and AV integrators have trusted for years.

Custom Built to Order

Every Cable Evolution SDI snake is manufactured to your specifications.

Choose from:

• Cable lengths from short jumpers to long production runs
• BNC, HD-BNC, DIN 1.0/2.3, or female connectors
• Custom fan-out lengths
• Numbered and color-coded channel identification
• Additional channel counts available

Please note: These assemblies are custom manufactured and are Non-Cancelable / Non-Returnable (NC/NR). Lead times vary depending on configuration and order quantity.
