Product Description
Custom Multi-Channel 12G-SDI BNC Snake Cable

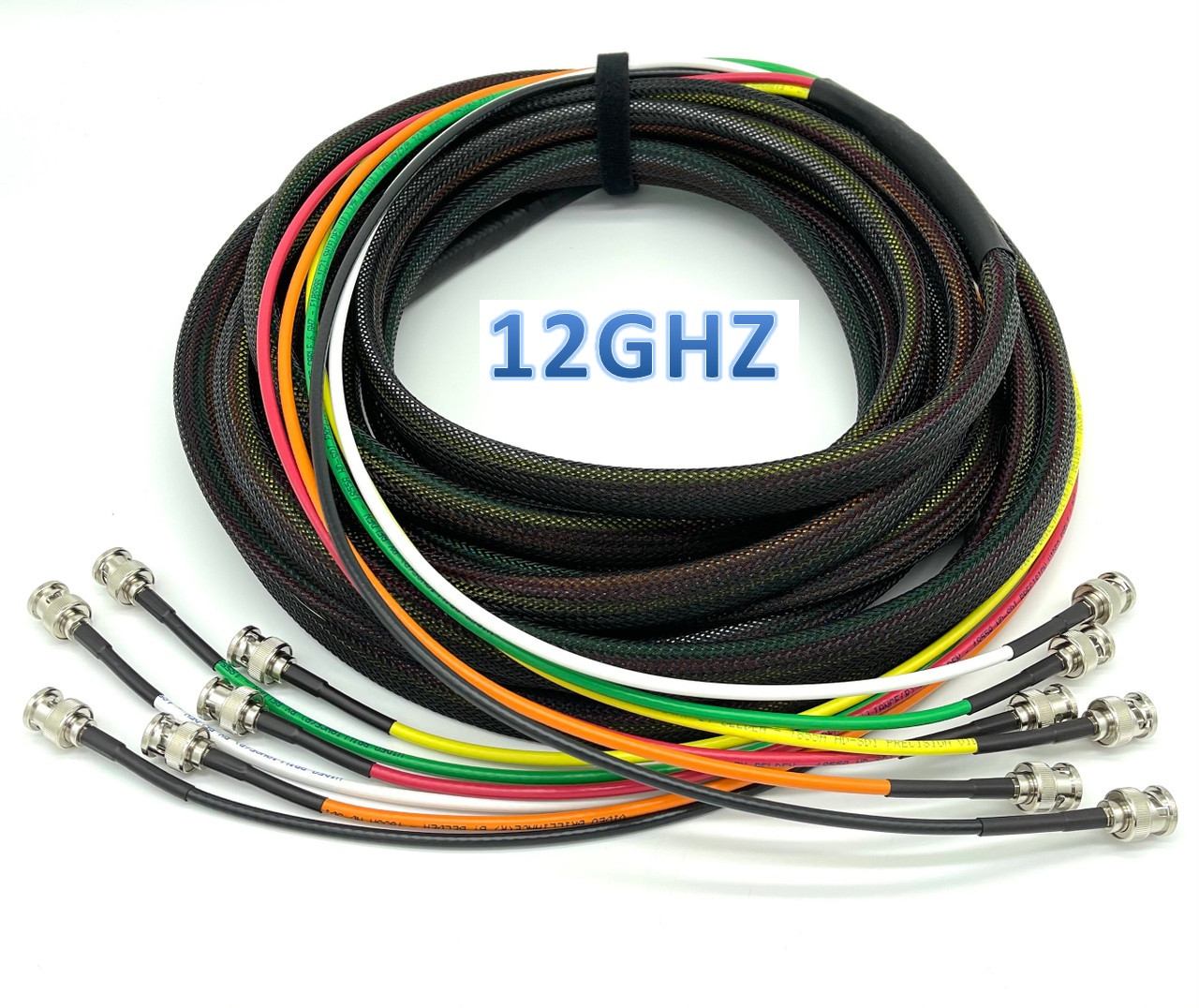

Organize multiple professional video connections into one rugged, easy-to-deploy cable assembly. This Cable Evolution custom 12G-SDI BNC snake combines multiple color-coded Belden 4855R Mini RG59 coaxial cables inside durable expandable braided sleeving.
Select the required number of channels and overall snake length using the product options above. Every assembly is hand-built in the USA, and every channel is individually tested before shipment.
Professional 12G-SDI Performance
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
- Supports single-link 4K UHD video transmission
- Genuine Belden 4855R Mini RG59 precision 75-ohm coax
- Professional true 75-ohm BNC male connectors
- Available with 3, 5, 6, 10, 12 or 16 channels
- Available in lengths from 6 feet through 150 feet
Why Use a Multi-Channel SDI Snake?
Running several individual SDI cables can create clutter, tangles and identification problems. A custom SDI snake keeps related video lines together in one manageable assembly while maintaining an individual precision coaxial cable for each signal.
Faster Deployment
Deploy and retrieve several SDI connections together instead of handling each cable separately.
Clear Channel Identification
Color-coded breakout cables help technicians identify matching channels quickly at both ends.
Protected Cable Bundle
Expandable braided sleeving helps protect the cable group from tangles and abrasion while maintaining flexibility.
Built for Your System
Choose the channel count and length required for your broadcast, production or professional AV application.
Belden 4855R Mini RG59 Construction
Each channel is constructed with genuine Belden 4855R Mini RG59 precision video coax. Its compact approximately 4.5 mm outside diameter helps keep the completed multi-channel assembly lighter and more manageable than snakes built with full-size RG59 or RG6 coax.
Belden 4855R supports professional 12G-SDI video while providing the compact construction needed for equipment racks, fly packs, mobile production systems and portable broadcast installations.
Supported Video Standards
| Video Format | SMPTE Standard | Common Application |
|---|---|---|
| 12G-SDI | SMPTE ST 2082-1 | Single-link 4K UHD professional video |
| 6G-SDI | SMPTE ST 2081-1 | UHD and high-bandwidth professional video |
| 3G-SDI | SMPTE 424M | 1080p professional video |
| HD-SDI | SMPTE 292M | 720p and 1080i HD video |
| SD-SDI | SMPTE 259M | Standard-definition serial digital video |
Available Channel Counts and Lengths
| Channel Counts | 3, 5, 6, 10, 12 or 16 channels |
|---|---|
| Standard Lengths | 6, 10, 25, 35, 50, 75, 100 or 150 feet |
| Channel Identification | Color-coded breakout cables at both ends |
| Outer Protection | Flexible expandable braided nylon sleeving |
| Connectors | Professional true 75-ohm BNC male connectors |
Recommended Applications
- Broadcast television facilities
- Live event and sports production
- Mobile production trucks
- Fly packs and portable production systems
- Studios and control rooms
- Camera-to-switcher connections
- SDI routers, multiviewers and patch panels
- Rental and staging companies
- Corporate AV systems
- Houses of worship
- Universities and government facilities
Technical Specifications
| Cable | Genuine Belden 4855R Mini RG59 precision video coax |
|---|---|
| Impedance | 75 ohms |
| Maximum Signal Format | 12G-SDI |
| Maximum Resolution | Up to 4K UHD |
| Connector Configuration | BNC male to BNC male on every channel |
| Channel Counts | 3, 5, 6, 10, 12 or 16 |
| Available Lengths | 6–150 feet |
| Outer Protection | Expandable braided nylon sleeving |
| Assembly | Hand-built in the USA |
| Testing | Every completed channel is individually tested |
| Warranty | Lifetime Connector Replacement Warranty |
12G-SDI Transmission Distance
Belden 4855R can support 12G-SDI transmission at distances up to approximately 150 feet under suitable operating conditions. Actual performance depends on the source and receiving equipment, signal format, connectors, patch panels, bulkheads and the complete signal path.
For additional guidance, visit our 12G-SDI cable distance guide .
Custom Fan-Outs, Labels and Connector Options
Need a configuration that is not listed? Custom channel counts, fan-out lengths, cable labels, jacket colors and connector combinations may be available. AV-Cables can also help configure snake assemblies for specific cameras, switchers, routers, monitors, patch panels and production systems.
Why Choose Cable Evolution?
- Professional broadcast-grade components
- Hand-built by experienced cable technicians in the USA
- Every channel individually tested before shipment
- Custom configurations available
- Lifetime Connector Replacement Warranty
- Technical assistance from an experienced cable manufacturer
Frequently Asked Questions
What does the channel-count option mean?
Each channel is one independent 75-ohm BNC-to-BNC SDI cable. A six-channel snake, for example, carries six separate SDI video signals.
Can this snake carry 4K UHD video?
Yes. Each Belden 4855R channel supports 12G-SDI and single-link 4K UHD video within appropriate transmission distances.
Are all channels tested?
Yes. Every completed channel is individually tested before the snake assembly is approved for shipment.
Can AV-Cables build a configuration not shown?
Yes. Contact us about custom channel counts, lengths, fan-outs, labeling, cable colors and alternative connector configurations.
Build Your Custom 12G-SDI Snake
Select the required number of channels and overall cable length from the options above. Contact AV-Cables if your system requires a specialized configuration.
