Product Description
Custom Multi-Channel 6G HD-SDI BNC to HD-BNC Snake Cable
Cable Evolution Custom 6G HD-SDI BNC to HD-BNC Snake Cables provide a clean, professional solution for connecting traditional BNC-equipped broadcast equipment to cameras, switchers, routers, monitors, converters and other devices using high-density HD-BNC connections.

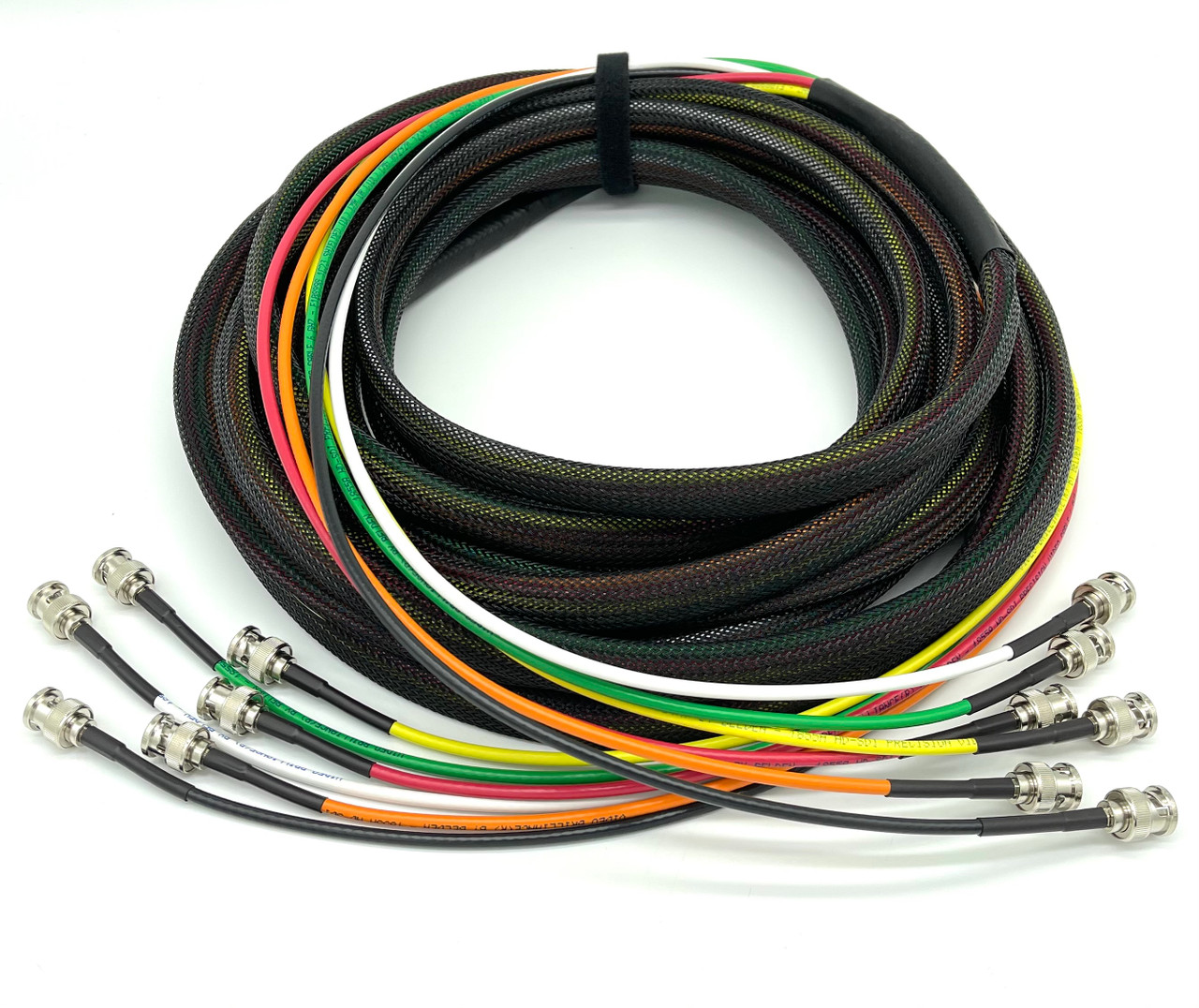

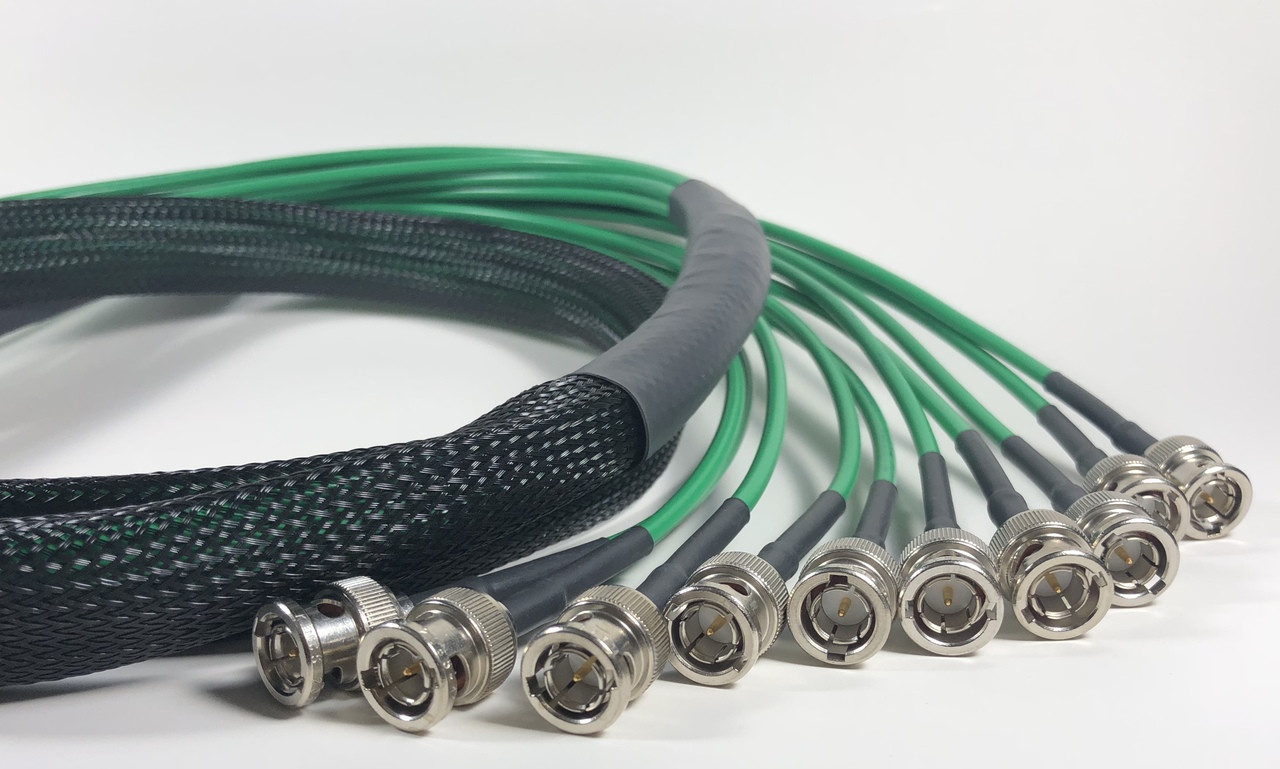

Each snake combines multiple precision 75-ohm Mini RG59 coaxial cables inside durable expandable sleeving, with standard BNC male connectors on one end and compact HD-BNC male connectors on the opposite end.
Designed for professional broadcast, live production, mobile production, studio and commercial AV systems, these assemblies reduce cable clutter while providing dependable multi-channel SDI connectivity in high-density installations.
Features
- BNC Male to HD-BNC Male configuration
- Supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats
- Precision 75-ohm Mini RG59 coaxial cable elements
- 23 AWG solid bare copper center conductors
- Compact HD-BNC connectors for high-density broadcast equipment
- Professional true 75-ohm BNC connectors
- Flexible expandable sleeving keeps multiple SDI channels organized
- Individual cable channels can be identified for easier installation and troubleshooting
- Available in multiple channel counts and custom lengths
- Hand assembled in the USA
- Individually tested before shipment
- Lifetime Connector Replacement Warranty
Available Channel Configurations
Choose the number of SDI channels required for your production or installation. Current configurations include 2, 3, 5, 6, 10, 12 and 16 channels. Custom configurations are also available upon request.
BNC to HD-BNC Connectivity
The BNC end connects to traditional broadcast equipment using standard 75-ohm BNC interfaces, while the HD-BNC end provides a compact connection for high-density routers, switchers, cameras, converters, multiviewers, patching systems and other professional video equipment.
HD-BNC provides the familiar push-and-turn bayonet-style connection of BNC in a significantly smaller connector footprint, making it especially useful where many SDI connections must fit into a limited panel space.
Technical Specifications
| Signal Type | SD-SDI, HD-SDI, 3G-SDI and 6G-SDI |
| Cable Type | Mini RG59 Broadcast Coax |
| Connector A | BNC Male, 75 Ohm |
| Connector B | HD-BNC Male, 75 Ohm |
| Impedance | 75 Ohms |
| Center Conductor | 23 AWG Solid Bare Copper |
| Shielding | Foil and Braid Shielding |
| Outer Protection | Flexible Expandable Sleeving |
| Available Channels | 2, 3, 5, 6, 10, 12 and 16 |
| Available Lengths | 3 ft through 150 ft |
| Standards | SMPTE 259M, 292M, 424M and ST 2081-1 |
| Assembly | Hand Assembled in USA |
| Testing | Individually Tested |
Ideal Applications
- Broadcast television studios
- Production switchers and video routers
- High-density SDI equipment
- Mobile production trucks
- Fly packs and portable production systems
- Live event production
- Sports and venue video systems
- Corporate AV installations
- Houses of worship
- Broadcast rack and equipment interconnects
One Snake Instead of Multiple Individual SDI Cables
Bundling multiple SDI channels into a single protected assembly makes setup, routing and teardown faster while reducing cable clutter. This is especially valuable in mobile production systems, broadcast racks and temporary production environments where multiple BNC-to-HD-BNC connections must travel together.
Custom Built for Your System
Need a different channel count, length, connector configuration or labeling scheme? AV-Cables manufactures custom broadcast snake assemblies for production, integration, OEM and government applications.
For custom configurations or volume pricing, contact AV-Cables at 614-834-4160.
Please note: Custom-built snake assemblies are made to order and are non-cancelable/non-returnable. Lead times may vary based on configuration and quantity.
