Product Description
Professional Long-Distance 6G HD-SDI Performance
The AV-Cables Belden 1694A RG6 6G HD-SDI BNC cable is built for professional broadcast, video production and commercial AV applications requiring dependable signal integrity over longer cable runs.
Constructed using genuine Belden 1694A low-loss RG6 precision video coax and professional true 75-ohm BNC connectors, this assembly supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video systems.
The full-size RG6 construction provides lower attenuation than Mini RG59 and standard RG59 cables, making 1694A an excellent choice for production facilities, stadiums, mobile trucks, engineering racks and permanent professional installations.
Why Choose Belden 1694A RG6?
Belden 1694A combines a larger 18 AWG solid copper conductor with professional foil-and-braid shielding and full-size RG6 construction. This reduces signal loss compared with smaller coaxial cables and makes 1694A the preferred 6G-SDI option for longer professional video runs.
Key Features
- Genuine Belden 1694A full-size RG6 precision video coax
- Supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- Designed for longer professional SDI transmission runs
- Professional true 75-ohm BNC male connectors
- 18 AWG solid bare-copper center conductor
- 100% foil shield with 95% tinned-copper braid
- UL CMR-rated PVC jacket
- Available in multiple lengths and colors
- Hand assembled and individually tested in the USA
- Lifetime connector replacement warranty
SDI Formats
6G-SDI, 3G-SDI, HD-SDI and SD-SDI
Cable Construction
Low-loss RG6 with an 18 AWG solid copper conductor
SMPTE Compatibility
SMPTE 259M, 292M, 424M and ST 2081-1
Long-Distance SDI Signal Performance
Belden 1694A is designed to carry professional SDI signals over greater distances than smaller Mini RG59 and RG59 cable constructions.
| SDI Format | Performance | Common Application |
|---|---|---|
| 6G-SDI | Long-distance 6G performance | High-bandwidth professional video systems |
| 3G-SDI | Extended-distance operation | 1080p professional video |
| HD-SDI | Longer broadcast runs | 720p and 1080i HD video |
| SD-SDI | Maximum-distance operation | Standard-definition serial digital video |
Maximum transmission distance depends on the signal format, source and receiving equipment, connectors, patch panels, bulkheads and installation conditions.
Learn more in our SDI cable distance guide.

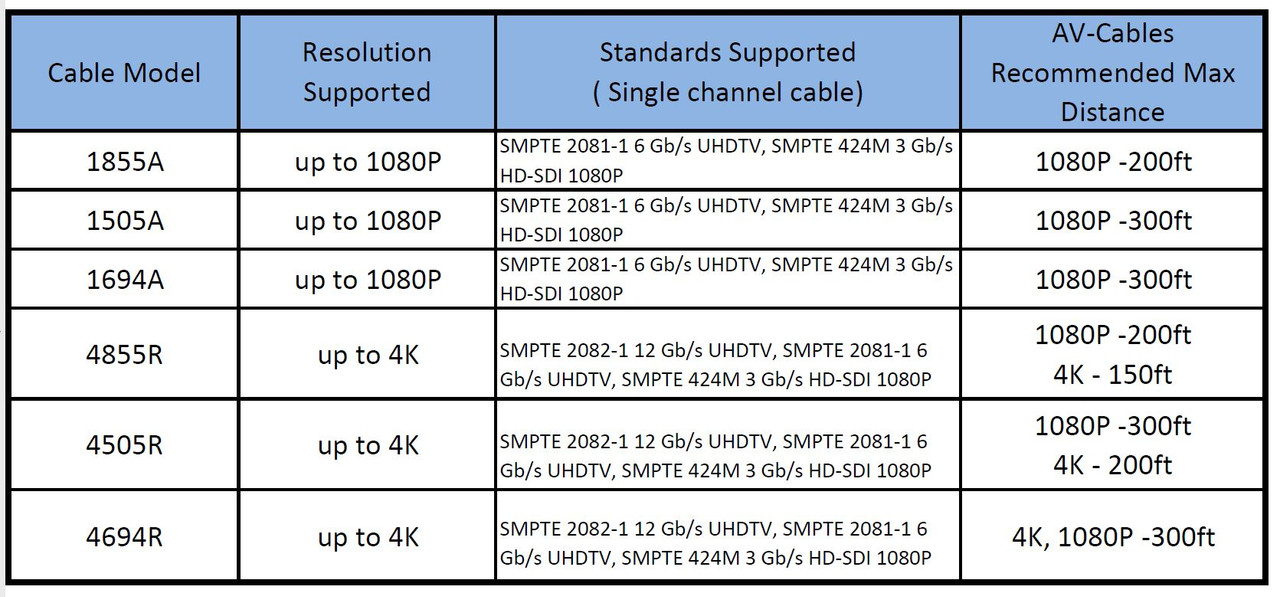

Compare Professional 6G-SDI Cable Types
Choose the cable construction that provides the best combination of flexibility, size and transmission performance for your installation.
| Cable | Construction | Cable Size | Best Use |
|---|---|---|---|
| Belden 1855A | Mini RG59 | Compact | Equipment racks, patching, fly packs and lightweight systems |
| Belden 1505A | RG59 | Mid-size | General-purpose professional HD-SDI and 3G-SDI systems |
| Belden 1694A | RG6 | Full-size | Longer 6G-SDI, 3G-SDI and HD-SDI cable runs |
When Should You Choose 1694A?
- Choose Belden 1694A RG6 when longer transmission distance and lower signal loss are more important than minimizing cable size.
- Choose Belden 1505A RG59 for general-purpose professional HD-SDI and 3G-SDI applications.
- Choose Belden 1855A Mini RG59 for crowded racks, patching, portable systems and applications requiring a thinner, lighter cable.
Recommended Applications
- Long-distance 6G-SDI and HD-SDI runs
- Broadcast and studio cameras
- Production switchers and SDI routers
- Broadcast monitors and multiviewers
- Engineering racks and patch panels
- Distribution amplifiers and converters
- Production trucks and mobile broadcast systems
- Live events, stadiums and arenas
- Corporate AV systems and houses of worship
- Schools, universities and government facilities
- Permanent professional video installations
Compatible Equipment
This cable is suitable for professional SDI equipment from manufacturers such as Blackmagic Design, AJA Video Systems, Ross Video, Sony, Panasonic, Canon, Grass Valley, Atomos and other equipment using standard 75-ohm BNC connections.
Technical Specifications
| Cable | Genuine Belden 1694A |
|---|---|
| Cable Construction | Full-size RG6 precision video coax |
| Impedance | 75 ohms |
| Center Conductor | 18 AWG solid bare copper |
| Shielding | 100% foil shield with 95% tinned-copper braid |
| Outside Diameter | Approximately 6.99 mm (0.275 inch) |
| Jacket | PVC, UL CMR rated |
| Connector Type | Professional 75-ohm BNC male to BNC male |
| Signal Compatibility | SD-SDI, HD-SDI, 3G-SDI and 6G-SDI |
| Maximum SDI Format | 6G-SDI |
| Standards | SMPTE 259M, 292M, 424M and ST 2081-1 |
| Assembly | Hand assembled in the USA |
| Testing | Every completed cable is individually tested |
| Warranty | Lifetime connector replacement warranty |
Available Lengths and Colors
Select your required cable length and jacket color from the product options above. Standard 1694A jacket colors include black, blue and red. Available combinations may vary according to length and current inventory.
Need 12G-SDI for 4K UHD?
Belden 1694A is designed for professional SD-SDI, HD-SDI, 3G-SDI and 6G-SDI applications. For single-link 12G-SDI and 4K UHD, choose one of our dedicated 12G cable constructions.
Compare Belden 4855R Mini RG59, Belden 4505R RG59 and Belden 4694R RG6.
Hand Assembled, Tested and Supported in the USA
AV-Cables has supplied professional video and broadcast connectivity products since 1995. Every completed Belden 1694A cable assembly is individually tested before shipment.
Eligible signal cables include our lifetime connector replacement warranty, helping protect your investment for years of professional use.
Need Help Choosing an SDI Cable?
Browse our 6G HD-SDI BNC cables, explore our 12G and 4K UHD-SDI cables, or visit our where to buy SDI cables guide.
For assistance choosing the correct cable construction, length or connector, contact AV-Cables.
Build Your Belden 1694A 6G-SDI Cable
Choose your preferred length and jacket color from the options above, then add the cable to your cart.
