Product Description
Professional Long-Distance Belden 1694A RG6 HD-SDI Cable

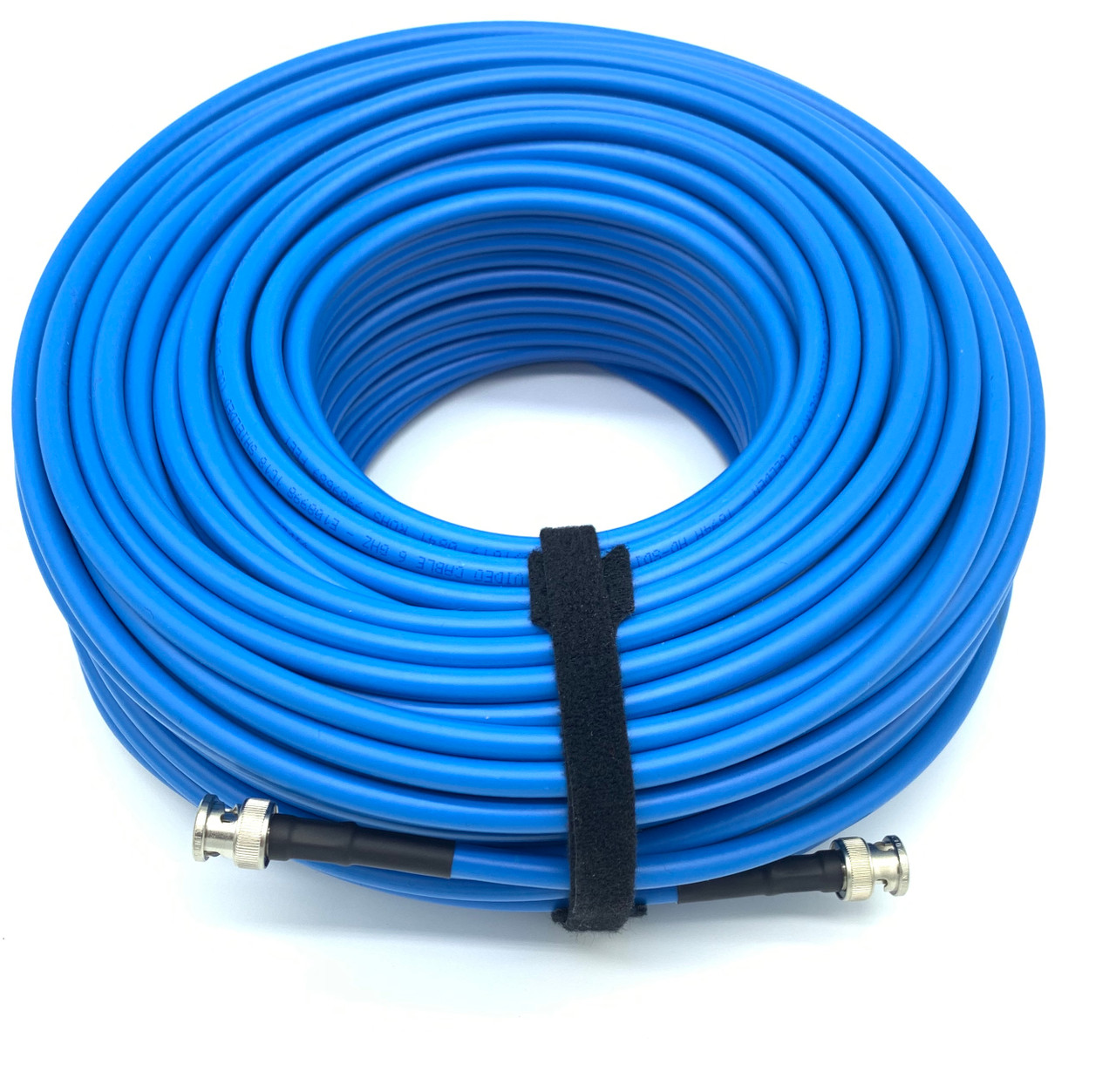

AV-Cables Belden 1694A RG6 HD-SDI BNC cable assemblies are built for professional broadcast, video production and commercial AV applications where dependable signal integrity over longer cable runs is essential.

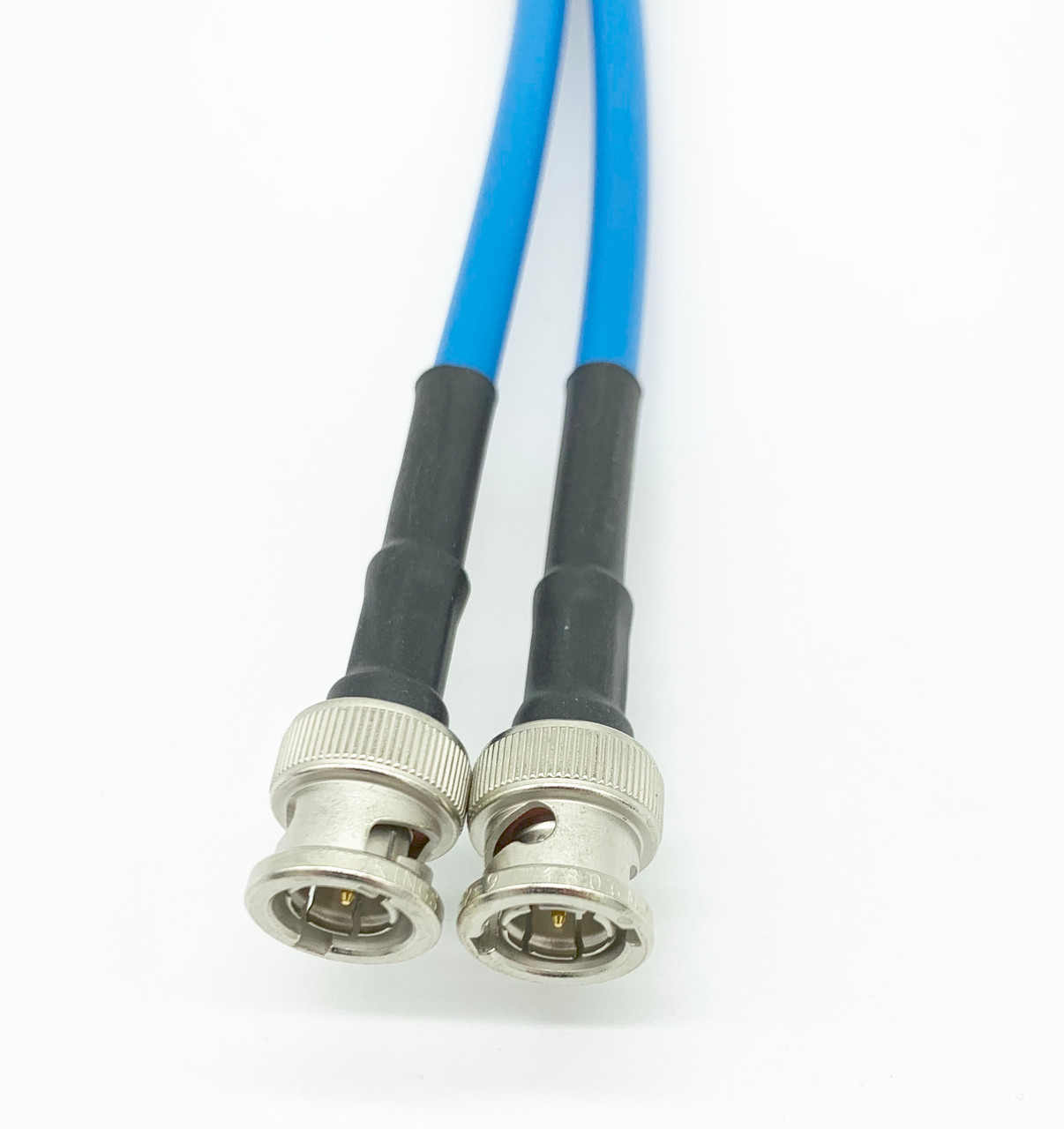

Constructed using genuine Belden 1694A low-loss RG6 broadcast coaxial cable and professional true 75-ohm BNC connectors, these assemblies support SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video systems.
The full-size RG6 construction provides lower attenuation than smaller Mini RG59 and standard RG59 cables, making 1694A an excellent choice for cameras, switchers, routers, engineering racks, patch panels, production trucks, stadiums and permanent broadcast installations.
Every AV-Cables 1694A assembly is hand assembled in the USA, individually tested before shipment and backed by our Lifetime Connector Replacement Warranty.
Why Choose Belden 1694A?
- Low-Loss RG6 Construction: Full-size RG6 coax is designed for longer professional SDI cable runs.
- True 75-Ohm BNC Connectors: Helps maintain proper impedance throughout the professional video signal path.
- Supports Multiple SDI Formats: Compatible with SD-SDI, HD-SDI, 3G-SDI and 6G-SDI systems.
- Professional Shielding: Designed to provide excellent protection against EMI and RFI interference in demanding AV environments.
- Multiple Lengths Available: Select lengths from short rack connections through long production and installation runs.

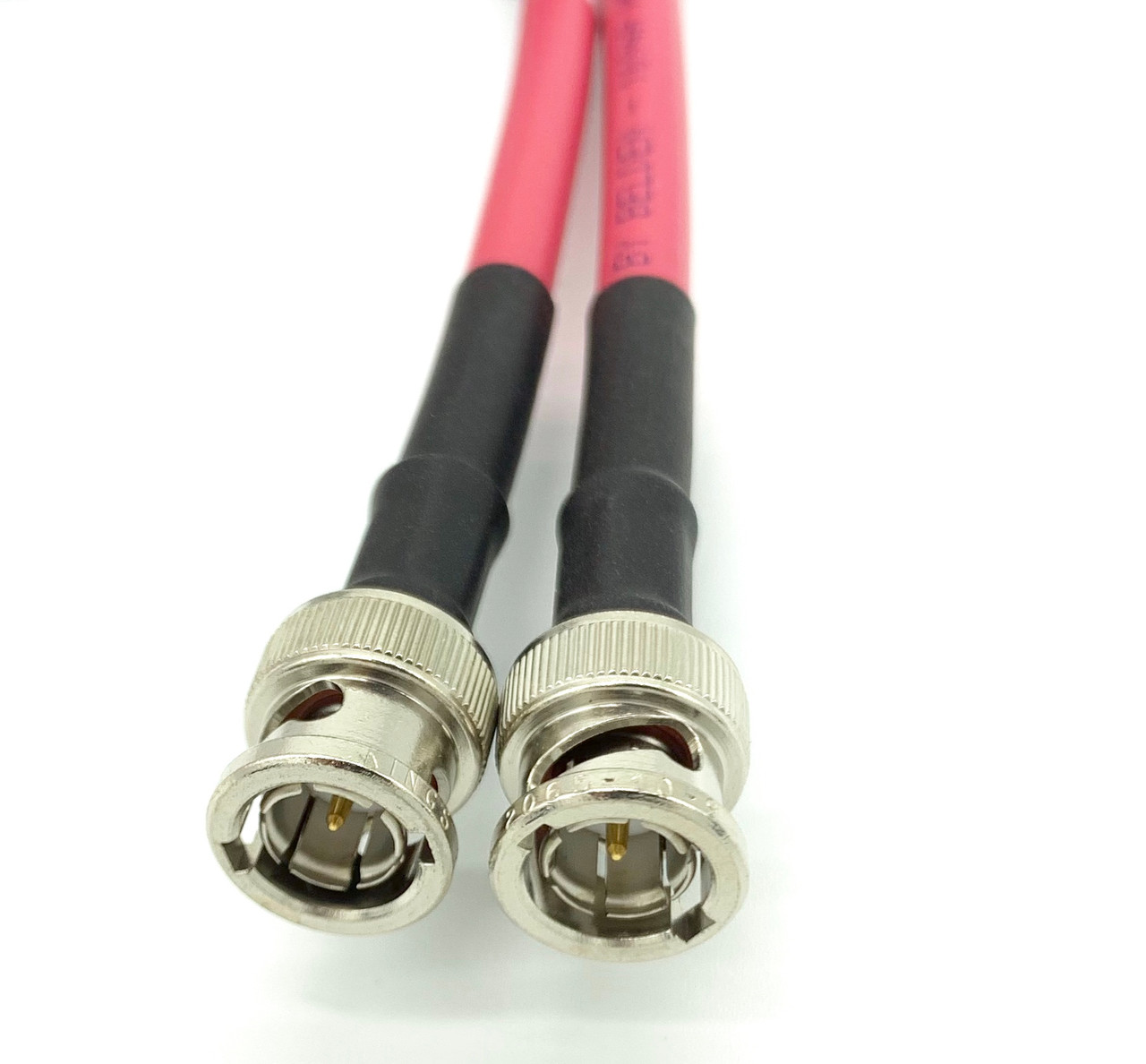

- Multiple Colors Available: Color options make signal identification, routing and system organization easier.
- Built in the USA: Hand assembled and individually tested by AV-Cables.
Belden 1694A Technical Specifications
| Cable | Belden 1694A |
| Cable Type | RG6 Precision Video Coax |
| Impedance | 75 Ohm |
| Center Conductor | 18 AWG Solid Bare Copper |
| Shielding | 100% Foil + 95% Tinned-Copper Braid |
| Nominal Outside Diameter | 0.275 in / 6.99 mm |
| Connector Type | BNC Male to BNC Male |
| Connector Impedance | True 75 Ohm |
| Supported Video Formats | SD-SDI, HD-SDI, 3G-SDI, 6G-SDI |
| Assembly | Hand Assembled in USA |
| Testing | Individually Tested |
Professional Applications
- Broadcast Cameras
- Production Switchers
- SDI Routers
- Broadcast Monitors
- Multiviewers
- Engineering Racks
- Patch Panels
- Mobile Production Trucks
- Fly Packs
- Stadiums and Arenas
- Live Event Production
- Corporate AV Systems
- Houses of Worship
- Schools and Universities
- Permanent Broadcast Installations

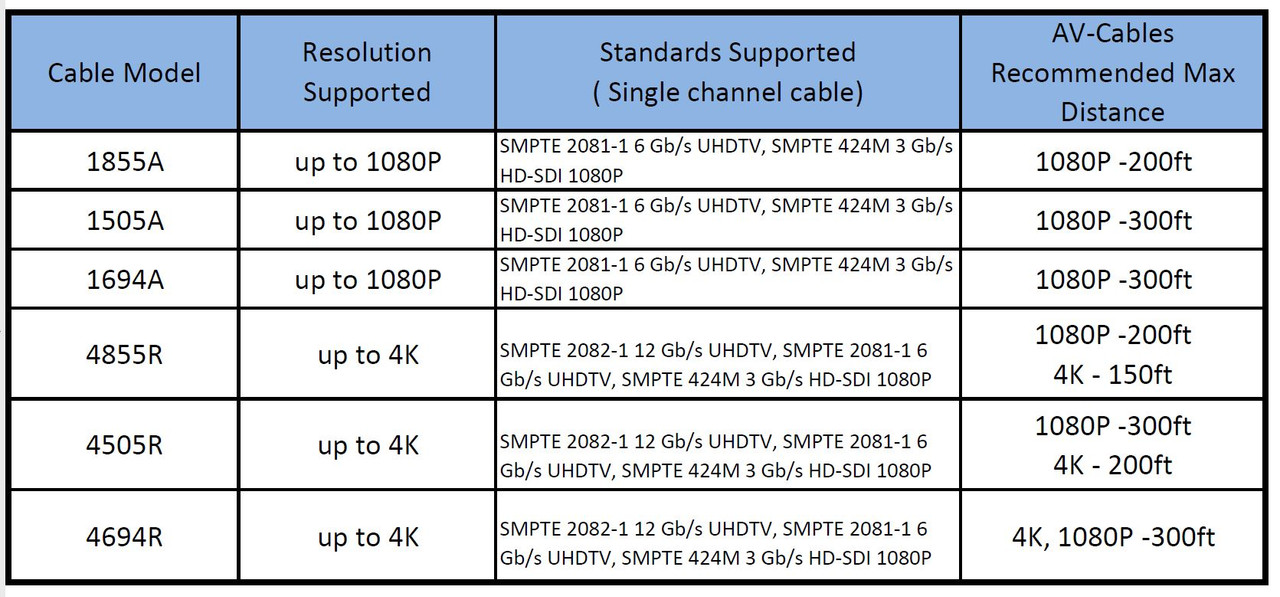

Choose the Right SDI Cable
Different SDI cable constructions are better suited for different installation requirements. Use the comparison below to choose the best cable for your application.
| Cable | Construction | Best Use |
|---|---|---|
| Belden 1855A | Mini RG59 | Compact racks, patching and lightweight applications |
| Belden 1505A | RG59 | General-purpose professional HD-SDI applications |
| Belden 1694A | RG6 | Longer HD-SDI and 6G-SDI cable runs |
Need 12G-SDI for 4K UHD?
Belden 1694A is an excellent choice for professional HD-SDI, 3G-SDI and 6G-SDI systems. For 12G-SDI and 4K UHD applications, choose one of our dedicated 12G cable families.
- Belden 4855R Mini RG59 — compact and lightweight for racks, patching and shorter 12G-SDI runs.
- Belden 4505R RG59 — a balanced option for medium-distance 12G-SDI applications.
- Belden 4694R RG6 — designed for longer-distance 12G-SDI and 4K UHD video runs.
Select Your Length and Color
Choose your preferred cable length and color using the product options above. The configurable 1694A assembly is available in multiple lengths for rack, studio, production and permanent installation applications.
Color choices are useful for identifying cameras, routing paths, equipment groups and signal destinations in larger production systems.
Built for Professional Broadcast & AV
AV-Cables manufactures professional cable assemblies for broadcast, video production, live events, studios, houses of worship, corporate AV and commercial installations.
Our Belden 1694A RG6 BNC assemblies are hand assembled in the USA, individually tested and available in multiple lengths and colors. Custom lengths and production quantities are also available for specialized installations, integrators and OEM applications.
