Product Description

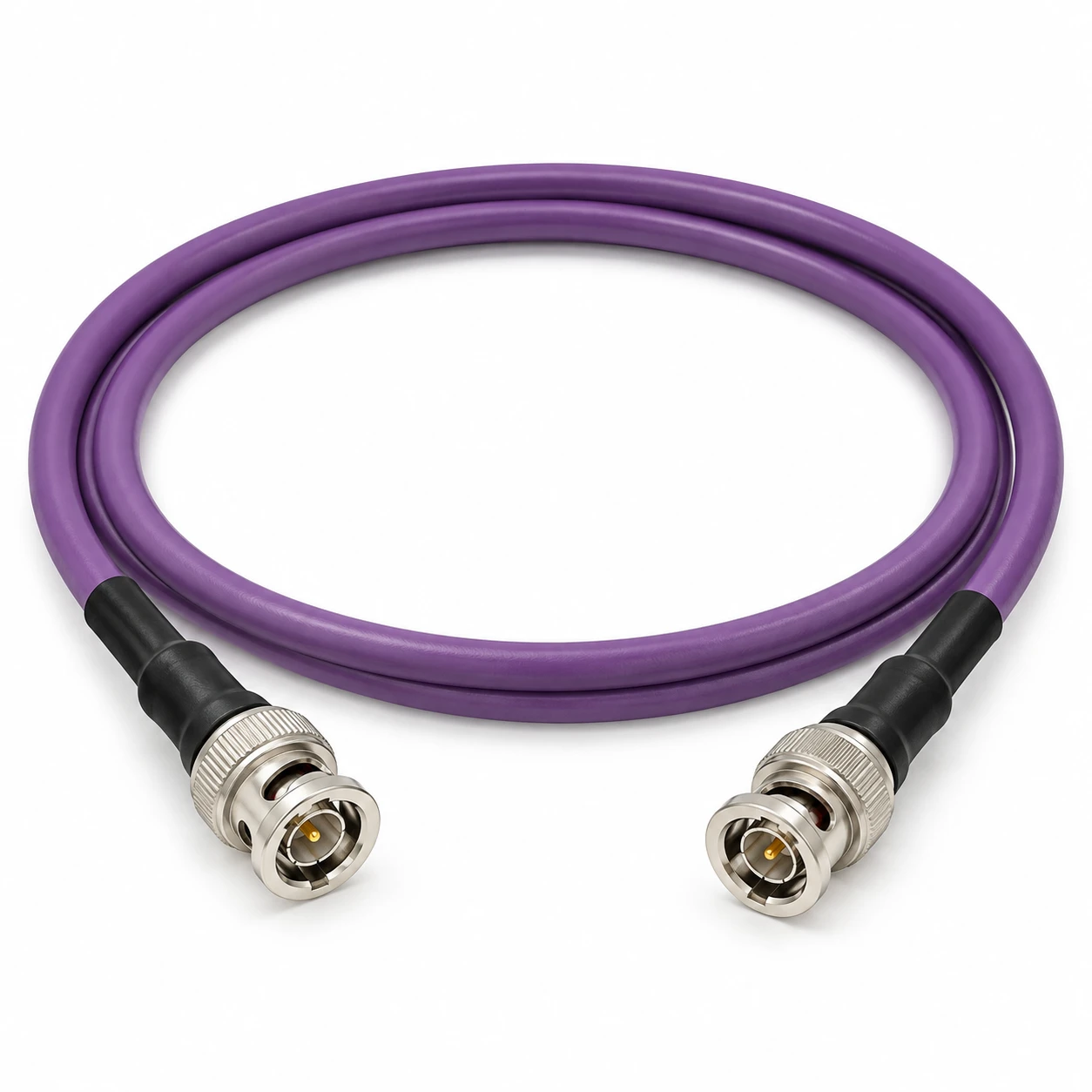

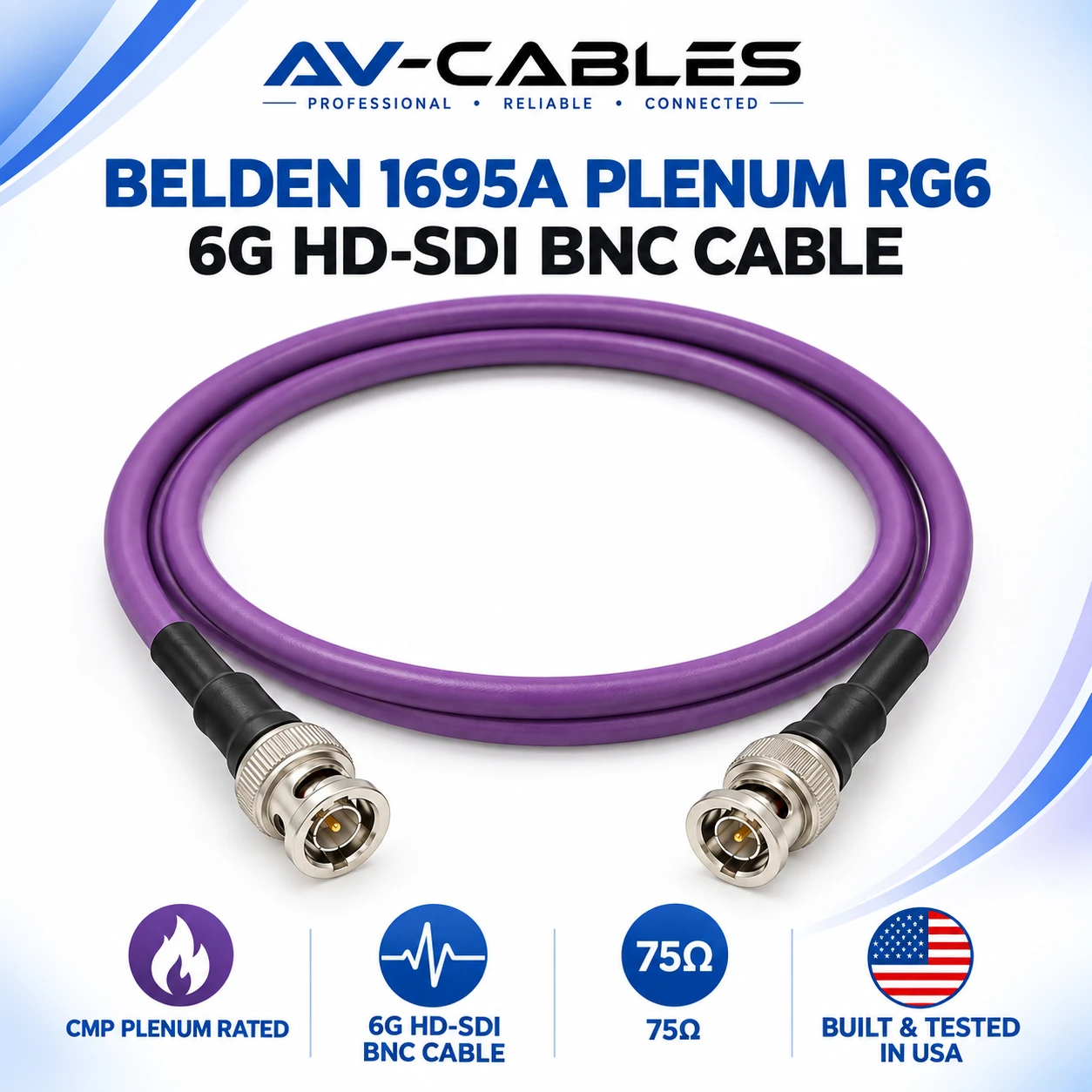

Professional 6G HD-SDI Performance in a Plenum-Rated RG6 Cable
AV-Cables Belden 1695A Plenum RG6 HD-SDI BNC cables are designed for professional broadcast, commercial AV and permanent video installations requiring dependable signal performance and a CMP plenum-rated cable.
Each assembly uses genuine Belden 1695A 6 GHz, 75-ohm RG6 coaxial cable and professional true 75-ohm BNC male connectors. Every cable is hand assembled in the USA and individually tested before shipment.
Why Choose Belden 1695A?
Belden 1695A combines low-loss RG6 video performance with a CMP plenum rating. It is designed for professional cable runs through qualifying environmental air-handling spaces where standard CMR-rated cable may not meet project or building-code requirements.
Key Features
- Genuine Belden 1695A professional broadcast coax
- CMP plenum-rated RG6 cable construction
- Professional precision 75-ohm BNC male connectors
- Supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- Designed for professional HD and compatible UHD video systems
- 18 AWG solid bare-copper center conductor
- Foamed FEP insulation
- 100% foil shield with 95% tinned-copper braid coverage
- Low-loss RG6 construction for longer permanent cable runs
- Hand assembled in the USA
- Every completed cable is individually tested
- Available in standard and custom lengths
- Lifetime connector replacement warranty
Supported SDI Formats and Cable Rating
Video Formats
SD-SDI, HD-SDI, 3G-SDI and 6G-SDI professional video transmission.
Plenum Rating
CMP-rated for qualifying plenum and environmental air-handling spaces.
SMPTE Compatibility
SMPTE 259M, 292M, 424M and ST 2081-1 applications.
CMP Plenum-Rated Installation
Belden 1695A is intended for professional installations where CMP-rated communications cable is required. Plenum spaces may include areas used for environmental air circulation above ceilings, below raised floors or within certain commercial building systems.
Installation notice: Building-code requirements vary by location and project. Confirm the required cable rating with the project engineer, building inspector or local authority having jurisdiction.
Ideal Applications
- Broadcast television studios and control rooms
- Commercial building AV systems
- Plenum and environmental air-handling spaces
- Video routers, patch panels and equipment racks
- Schools, colleges and universities
- Hospitals and healthcare facilities
- Government and municipal buildings
- Conference centers and presentation systems
- Houses of worship
- Permanent professional HD-SDI infrastructure
- Systems-integration and OEM projects
Technical Specifications
| Cable | Genuine Belden 1695A |
|---|---|
| Cable Construction | RG6 precision video coax |
| Rated Bandwidth | 6 GHz |
| Impedance | 75 ohms |
| Center Conductor | 18 AWG solid bare copper |
| Insulation | Foamed FEP |
| Shielding | 100% foil shield with 95% tinned-copper braid |
| Outside Diameter | Approximately 5.82 mm (0.229 inch) |
| Cable Rating | CMP plenum rated |
| Connector Type | Precision 75-ohm BNC male to BNC male |
| Signal Compatibility | SD-SDI, HD-SDI, 3G-SDI and 6G-SDI |
| Maximum SDI Format | 6G-SDI |
| SMPTE Standards | SMPTE 259M, 292M, 424M and ST 2081-1 |
| Available Lengths | 1.5 feet through 200 feet |
| Assembly | Hand assembled in the USA |
| Testing | Every completed cable is individually tested |
| Warranty | Lifetime connector replacement warranty |
Belden 1695A vs. Belden 1694A
Both cables support professional video formats through 6G-SDI. The primary difference is the installation rating: 1695A is CMP plenum rated, while 1694A is CMR riser rated.
| Specification | Belden 1695A | Belden 1694A |
|---|---|---|
| Maximum SDI Format | 6G-SDI | 6G-SDI |
| Installation Rating | CMP plenum | CMR riser |
| Insulation | Foamed FEP | Foamed polyethylene |
| Nominal Diameter | 5.82 mm | 6.96 mm |
| Best Application | Plenum and air-handling spaces | Standard riser and general installations |
Available Lengths and Colors
Choose from standard lengths ranging from 1.5 feet through 200 feet. Contact AV-Cables when your project requires a special length, custom labeling or a large production quantity.
Standard jacket color options are violet and black. Color availability may vary by selected length and current cable inventory.
Hand Assembled and Individually Tested
AV-Cables has served professional audio, video and broadcast customers since 1995. Experienced technicians assemble each Belden 1695A cable using professional termination methods and individually test the completed assembly before shipment.
Eligible AV-Cables signal cables include our lifetime connector replacement warranty. If a connector fails during normal service, contact us for warranty assistance.
Need Help Choosing the Correct RG6 SDI Cable?
Choose Belden 1695A when your installation requires CMP plenum-rated RG6 cable. For non-plenum installations requiring a standard CMR riser rating, choose Belden 1694A.
- View Belden 1695A Plenum SDI Cables
- Compare Belden 1694A CMR RG6
- Compare All 6G HD-SDI Cable Options
Custom Lengths and Volume Orders Available
Contact AV-Cables for custom lengths, labeling, production-company pricing, integrator requirements, OEM manufacturing and volume orders.
Request a Custom Cable Quote Call 614-834-4160Other Details
