10ft Extra Flexible Precision 75 Ohm RG59 HD SDI Cables Belden 1505F

Product Description

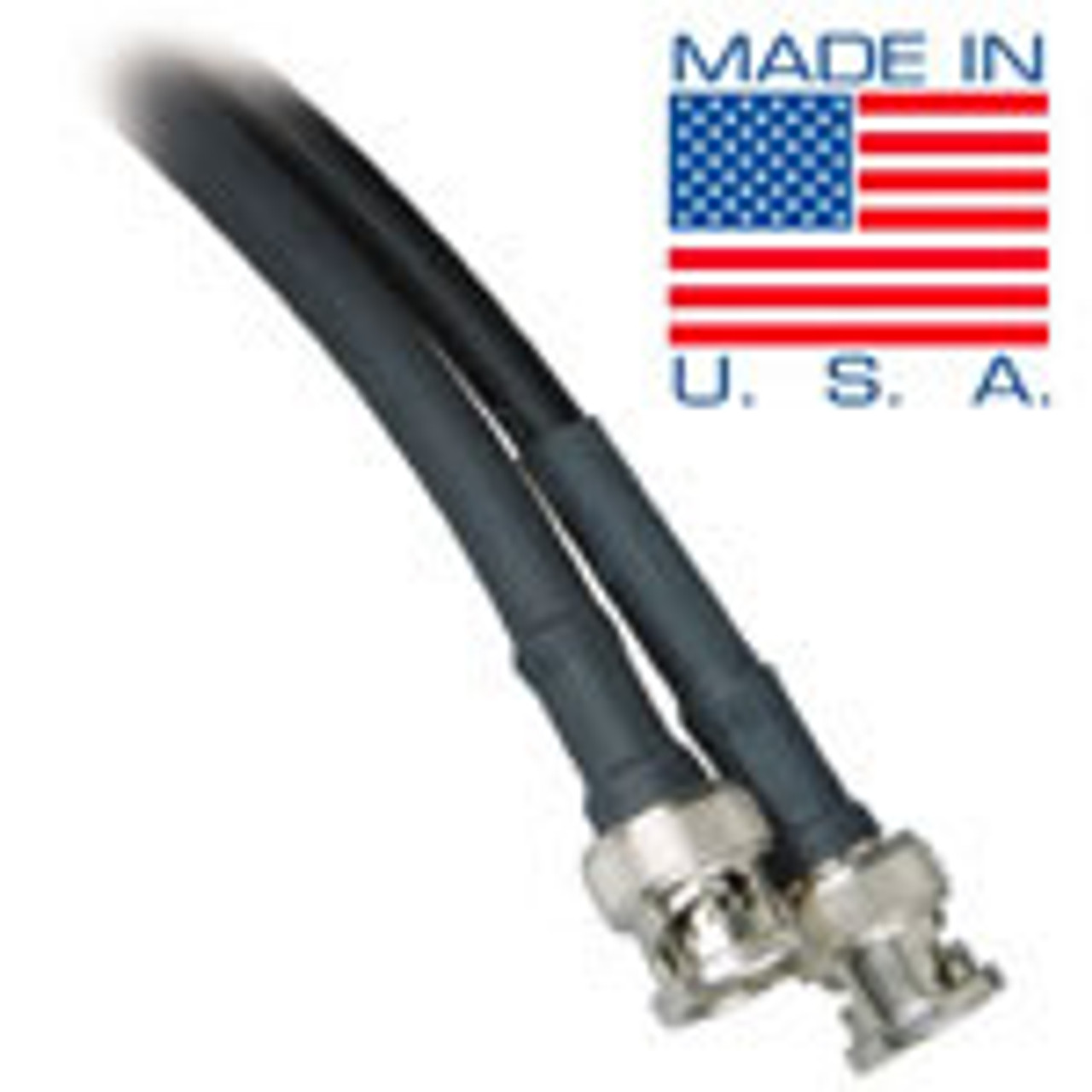

10ft Extra Flexible Precision 75 Ohm RG59 HD SDI BNC Cables - Belden 1505F

The RG59 cable features a precision stranded center conductor and flexible PVC Jacket

Stock and Custom lengths up to 150ft. Cables made to order.
Typically ships in 1-2 Business Days
Available in Black.

Other colors available upon request.

AV-Cables 3G/6G HD SDI Cable is perfect for 1080P HD SDI BNC connections. The Belden 1505F cable offer increased flexibility over regular rg59 cable and is 6G to deliver 1080P HD video and beyond. Conforms to SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 259M, 292M and 424M standards. 20 AWG Stranded copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), PVC jacket. Cable is backed by our Lifetime Connector replacement warranty

• Belden 1505F cable offer increased flexibility over regular rg59 cable


• Supports Full 3G/6G HD SDI Bandwidth for 1080P, 4K Video and Beyond, Conforms to SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P. Belden 1505A can be used in pairs to provide 4K capabilities at longer lengths. This cable is available from 1.5ft up to 300ft long in a variety of colors.


• Belden 1505F 6G 20 AWG Stranded RG59 HD SDI coaxial cable with True 75 Ohm BNC Connectors. RG59 cable design allows for good flexibility out of a solid center conductor cable without any sacrifice to quality.


• Kings True 75 ohm BNC connectors are crimp style BNC connectors with a Lifetime Connector Replacement Warranty offered by AV-cables that will provide years if hassle free performance form our HD SDI cables. Connectors are covered with heat shrink to provide a professional look and support the cable from prematurely breaking.


• Length of cables clearly marked and Hook and Loop strapped


• Purchase these HD SDI Cables with 100% confidence with 30 day replacement warranty and Lifetime BNC Connector replacement that we have your back. Hand made by our technicians in the USA

• Cable: Belden 1505F for increased flexibility


• BNC Connector: Kings

See chart below for maximum distances for our sdi cables.
