Product Description

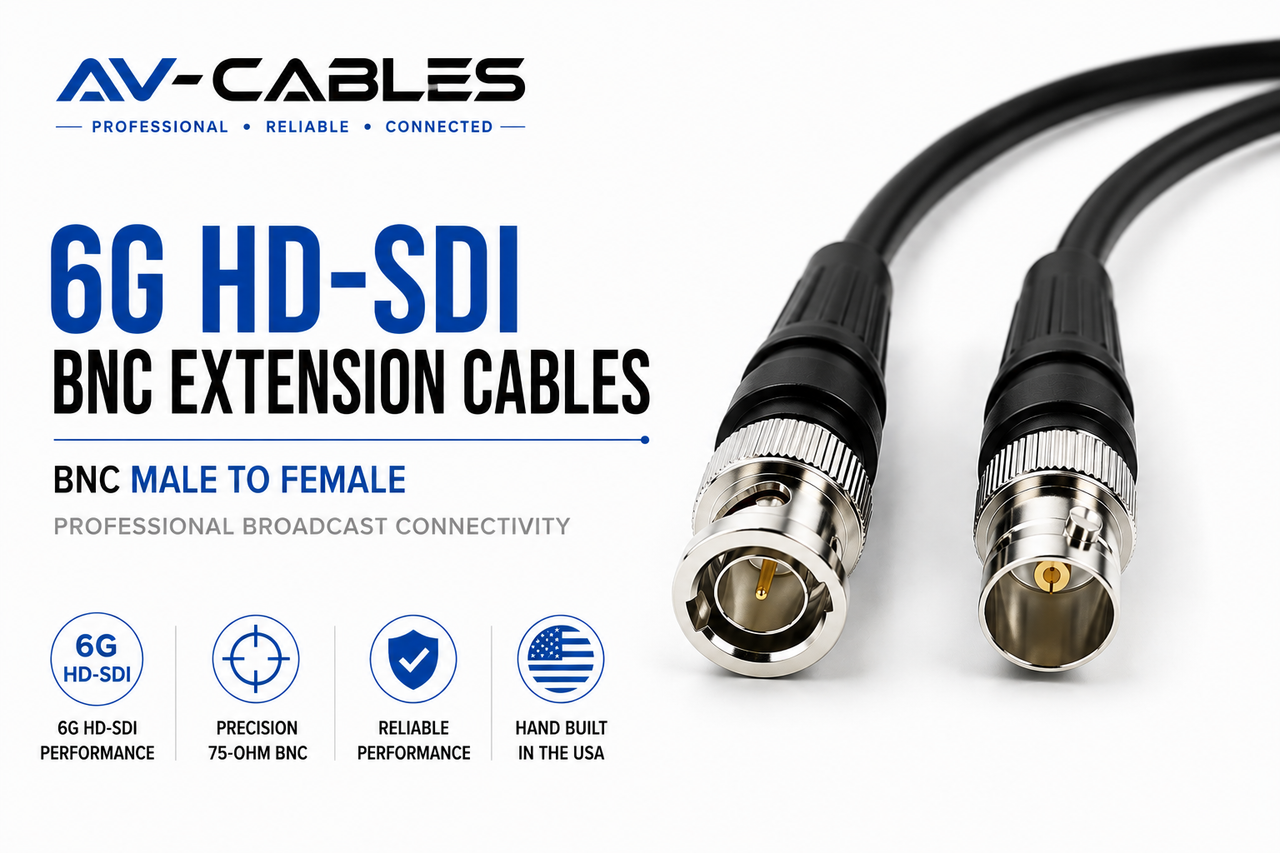

6G HD-SDI BNC Male to Female Extension Cable – Belden 1505A RG59

Extend an existing SDI cable run without adding a separate BNC barrel adapter. This professional extension cable features a true 75-ohm BNC male connector on one end and a true 75-ohm BNC female connector on the other, creating a clean and dependable connection for broadcast video and professional AV systems.

Each assembly is built with Belden 1505A RG59 coaxial cable, a professional 20 AWG broadcast cable known for dependable signal performance, excellent shielding and flexible handling. It supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI signals when used within the appropriate transmission distance for the selected video format.

The female BNC connector attaches directly to an existing male BNC cable, while the male end connects to your camera, switcher, monitor, router, converter, recorder or other SDI equipment.

Every cable is hand assembled in the USA using professional crimp connectors and is individually tested before shipment.

Key Features

• BNC male-to-female configuration for extending an existing SDI cable
• Supports SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
• Built with genuine Belden 1505A RG59 coaxial cable
• Professional 20 AWG solid copper center conductor
• Precision 75-ohm BNC male and female connectors
• Professional three-piece crimp connector construction
• Double-shielded design for strong EMI and RF protection
• Flexible RG59 construction for production and installation use
• Available in multiple cable lengths and jacket colors
• Hand assembled in the USA
• Individually tested before shipment
• Lifetime BNC connector replacement warranty

Extend an Existing SDI Connection

This cable eliminates the need to use a separate BNC barrel coupler between two male-to-male SDI cables. The integrated female BNC connector provides a simpler connection with fewer separate components.

It is ideal when you need:

• Additional camera cable length
• A temporary production extension
• More reach between racks or equipment
• A short extension behind a monitor or switcher
• A permanent extension through an equipment rack
• A replacement for a cable-and-coupler combination

Professional 6G-SDI Performance

Belden 1505A is a full-size RG59 broadcast coaxial cable designed for professional 75-ohm video applications. Its solid copper conductor, foam dielectric and double-shielded construction help maintain signal integrity in demanding broadcast, production and commercial AV environments.

Compatible signal formats include:

• 6G-SDI
• 3G-SDI
• HD-SDI
• SD-SDI
• Serial digital video
• 75-ohm analog video and reference applications

Signal performance depends on the total length of the complete cable path, including the original cable and the added extension.

Typical Applications

• Broadcast and cinema cameras
• Production switchers
• Video routers
• SDI monitors
• Video recorders
• Converters and signal processors
• Patch panels
• Equipment racks
• Waveform monitors
• Mobile production trucks
• Fly packs
• Studios and control rooms
• Houses of worship
• Corporate AV systems
• Live production systems

Product Specifications

Built and Tested by AV-Cables

AV-Cables has manufactured professional cable assemblies since 1994. Every extension cable is assembled by our technicians using professional broadcast components and inspected and tested before shipment.

Your cable includes:

• Clearly marked cable length
• Reusable hook-and-loop cable strap
• Individual continuity and connection testing
• Lifetime BNC connector replacement warranty
