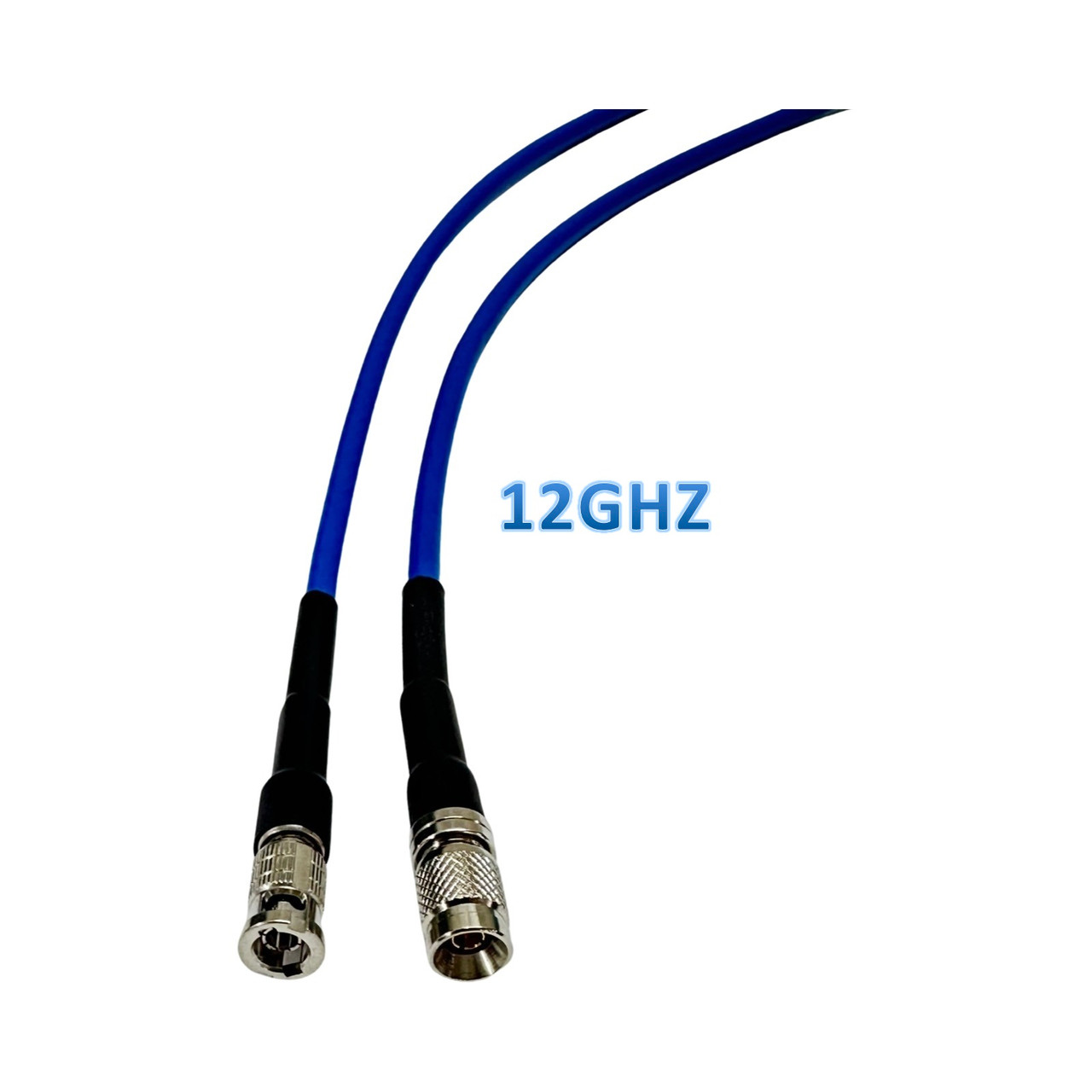

12G UHD-SDI 4K High-Density BNC to DIN 1.0/2.3 Cable – Belden 4855R Mini RG59
AV-Cables.net 12G UHD-SDI High-Density BNC (HD-BNC) to DIN 1.0/2.3 cables are engineered for professional broadcast, live production, cinema, and AV applications that demand exceptional signal integrity in high-density installations. Manufactured using genuine Belden 4855R Mini RG59 75-ohm coaxial cable and precision 12G-rated HD-BNC and DIN 1.0/2.3 connectors, these assemblies deliver reliable transmission of uncompressed 4K UHD video at data rates up to 12 Gb/s.
Designed for today's compact broadcast equipment, this cable provides the ideal connection between cameras, routers, multiviewers, switchers, monitors, patch panels, video servers, and signal converters equipped with High-Density BNC and DIN 1.0/2.3 interfaces. The small connector footprints maximize port density while the flexible Mini RG59 cable simplifies routing through crowded racks, mobile production trucks, and fly packs.
Every cable is hand-assembled in the USA and individually tested to ensure outstanding return loss, low attenuation, and dependable long-term performance in the most demanding production environments.
Features
- Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video formats
- Designed for uncompressed 4K UHD, HDR, and high-frame-rate video
- Genuine Belden 4855R Mini RG59 75-ohm broadcast coaxial cable
- Precision 12G-rated High-Density BNC (HD-BNC) and DIN 1.0/2.3 connectors
- Compact connector design for high-density broadcast equipment
- Flexible, lightweight cable for easy routing in confined spaces
- Superior return loss and low attenuation for maximum signal integrity
- Hand-assembled and individually performance tested
- Available in custom lengths and multiple jacket colors
- Meets SMPTE ST 424M, ST 2081-1, and ST 2082-1 standards
Performance
Designed for modern UHD broadcast workflows, these cable assemblies provide dependable performance across today's SDI formats:
- 12G-SDI: Up to 150 ft (45 m)
- 6G-SDI: Up to 215 ft (65 m)
- 3G-SDI: Up to 310 ft (94 m)
Engineered to exceed -15 dB return loss from 4.5 GHz to 12 GHz, ensuring exceptional signal integrity for 4K UHD and HDR production environments.
Specifications
| Specification | Details |
|---|---|
| Cable | Belden 4855R Mini RG59 |
| Connector A | High-Density BNC (HD-BNC) Male, 75 Ohm |
| Connector B | DIN 1.0/2.3 Male, 75 Ohm |
| Connector Rating | Precision 12G-SDI Rated |
| Impedance | 75 Ohms |
| Center Conductor | Silver-Plated Copper |
| Dielectric | Gas-Injected Foam HDPE |
| Shielding | Duofoil® Bonded Shield with Tinned Copper Braid |
| Jacket | Flexible PVC |
Typical Applications
- Broadcast television facilities
- Live event and sports production
- Mobile production trucks
- Fly packs and portable production systems
- Video routers and signal distribution systems
- UHD and 4K camera systems
- Production switchers
- Multiviewers and video monitors
- Patch panels and high-density equipment racks
- Signal converters and processing equipment
- Post-production and editing suites
- Professional AV and corporate video installations
Why Choose AV-Cables.net?
AV-Cables.net manufactures professional-grade broadcast cable assemblies trusted by broadcasters, production companies, rental houses, and system integrators worldwide. Every cable is built using genuine Belden cable, premium 12G-rated connectors, and is individually inspected and performance tested before shipment.
Whether you're upgrading a broadcast facility, building a fly pack, or integrating a new 4K production system, our High-Density BNC to DIN 1.0/2.3 cable assemblies deliver the reliability, durability, and performance required for mission-critical video applications.
