Product Description

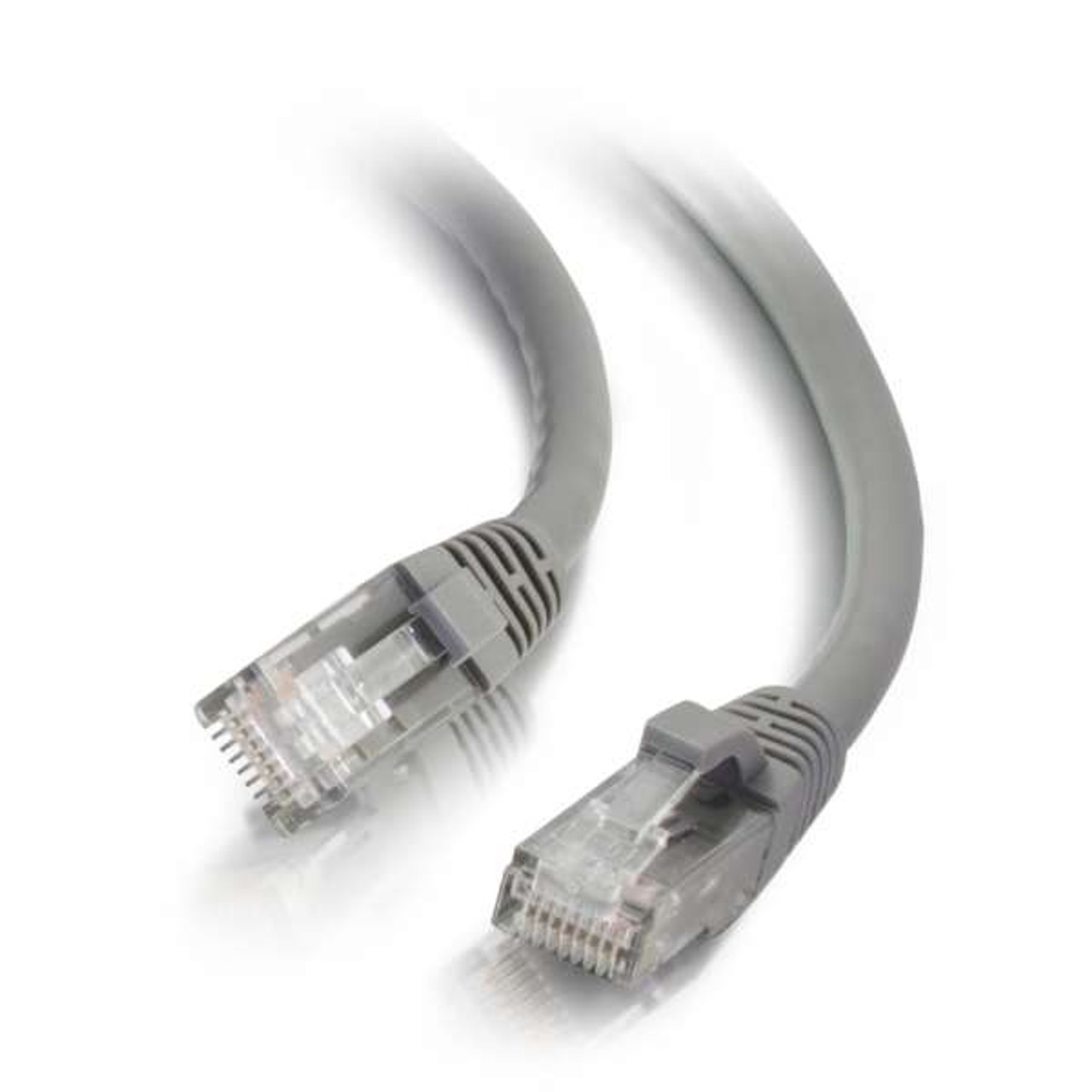

100ft Cat6 Snagless (UTP) Ethernet Network Patch Cable
Snagless design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications.
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
• Wiring Scheme - T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
• Connector: 50 micron gold-plated RJ45
• Temperature Rating - 60°C
• Voltage Rating - 30V
• Approvals - RoHS Compliant
• Warranty - Lifetime
• Package Type - Polybag
Conductor (Qty. 4 twisted pair)
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.98 ± 0.05mm
• Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White
Connector Type (Qty. 2)
• Connector Type - 8P8C (RJ45)
• Gender - Male
• Connector Material - Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50µm
• Hood Material - Molded PVC
Overall Cable
• Jacket - PVC
• Minimum Average Thickness - 0.60mm
• Outer Diameter - 6.20 ± 0.30mm
