Product Description

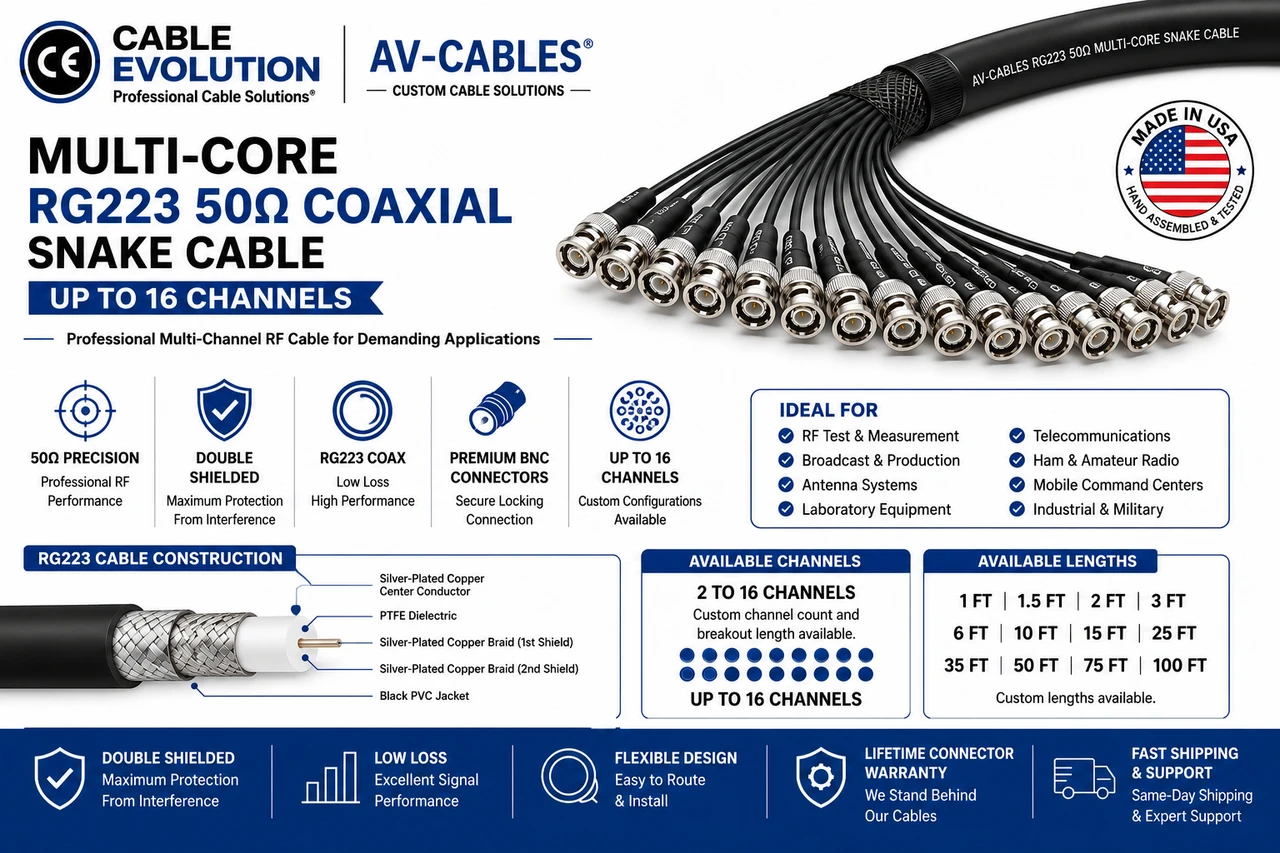

Cable Evolution 50 Ohm BNC Multicore Cable Assembly
Professional Multi-Channel 50 Ohm Coaxial Snake Cables
Simplify complex RF and broadcast installations with Cable Evolution 50 Ohm BNC Multicore Cable Assemblies from AV-Cables.net. Designed for professional applications, these custom-built snake cables combine multiple 50 Ohm coaxial lines into a single rugged assembly, reducing cable clutter while maintaining exceptional signal integrity.
Available with Belden 9201 or RG-223 coaxial cable, each assembly is built to your exact requirements with up to 16 individually shielded BNC channels. Whether you're wiring a broadcast facility, wireless microphone system, communications rack, or RF test bench, our multicore assemblies provide organized cable management without sacrificing performance.
Every cable is hand assembled by our technicians, thoroughly tested, and clearly labeled for quick installation and dependable operation.
Features
- Available with premium Belden 9201 or RG-223 50 Ohm coaxial cable
- Custom configurations from 2 to 16 BNC channels
- Precision 50 Ohm impedance for reliable RF signal transmission
- Individually shielded coaxial lines to minimize crosstalk
- Excellent EMI and RFI rejection
- Heavy-duty braided nylon outer jacket for added durability and cable protection
- High-quality BNC male connectors with secure bayonet locking
- Numbered and color-coded fan-outs for fast identification
- Custom fan-out lengths available
- Built and tested in the USA
- Ideal for permanent installations and portable production systems
Available Cable Options
Belden 9201
A flexible, low-loss 50 Ohm coax ideal for general-purpose RF applications, communications systems, and laboratory equipment.
RG-223
Features dual silver-plated copper braid shielding for superior protection against EMI and RFI, making it an excellent choice for demanding RF environments, military applications, and high-noise installations.
Ideal Applications
Cable Evolution multicore BNC assemblies are commonly used for:
- Broadcast television facilities
- Live event production
- Wireless microphone antenna distribution
- RF communications systems
- Military and aerospace applications
- Test and measurement laboratories
- Signal generators and oscilloscopes
- Spectrum analyzers
- Telecommunications equipment
- Data acquisition systems
- Mobile production trucks
- Equipment racks and patch panels
Why Choose a Multicore BNC Snake?
Instead of managing multiple individual coaxial cables, a multicore assembly keeps your installation organized, reduces setup time, minimizes cable damage, and creates a cleaner, more professional installation. Individually shielded channels help preserve signal quality while the braided outer sleeve protects the entire assembly during transport and daily use.
Custom Built to Your Specifications
Every Cable Evolution multicore assembly is manufactured to order.
Choose your:
- Number of channels (2–16)
- Cable type (Belden 9201 or RG-223)
- Overall cable length
- Fan-out lengths
- Connector configurations
- Identification labels
- Optional custom color coding
If you have unique requirements, our technicians can build a cable assembly tailored to your application.
Important Ordering Information
- Custom manufactured to order
- Non-Cancelable / Non-Returnable (NC/NR)
- Production lead times vary depending on cable configuration and quantity.
- Please contact us for current manufacturing and shipping lead times before placing large or time-sensitive orders.
Frequently Asked Questions
Why choose a multicore coaxial cable assembly?
A multicore assembly combines multiple coaxial cables into one organized cable bundle, reducing installation time, simplifying cable management, and improving reliability compared to running individual cables.
What is the difference between Belden 9201 and RG-223?
Belden 9201 offers excellent flexibility and performance for most RF applications, while RG-223 provides dual silver-plated shielding for increased protection against EMI and RFI in electrically noisy environments.
Can these cables be customized?
Yes. Every assembly is built to order and can be customized with your preferred cable type, channel count, overall length, fan-out lengths, connector styles, and labeling.
How many channels are available?
Standard assemblies are available with 2 through 16 channels. Larger custom configurations may also be available upon request.
