Product Description

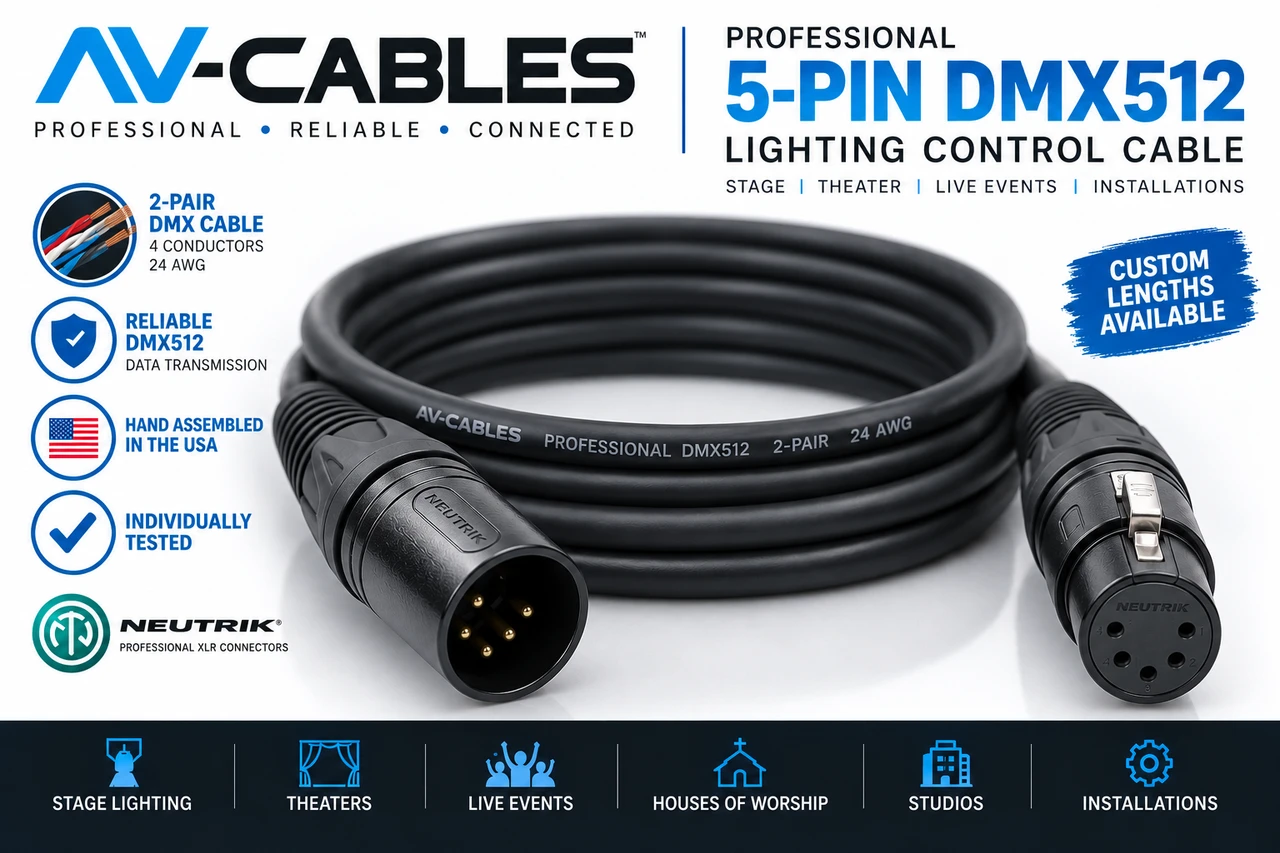

Professional 5-Pin DMX512 Lighting Control Cable
Built for professional lighting systems, this AV-Cables 5-pin DMX512 cable combines RapcoHorizon DMX-2PR professional DMX data cable with genuine Neutrik 5-pin XLR connectors.
Available from 3 ft through 200 ft. Every assembly is hand assembled in the USA and individually tested before shipment.
Lighting Control
Professional DMX Cable
5-Pin XLR Connectors
Assembled & Tested
Professional DMX Cable Construction
RapcoHorizon DMX-2PR
Professional 2-pair DMX data cable with four 24 AWG conductors arranged as two twisted data pairs for professional 5-pin DMX lighting-control applications.
Neutrik 5-Pin XLR
Professional Neutrik male and female 5-pin XLR connectors provide durable, dependable connections for lighting consoles, fixtures and DMX control equipment.
Built by AV-Cables
Each cable is hand terminated in the USA and individually tested before shipment for dependable professional use.
Built for DMX512 Lighting Systems
DMX512 is the digital control protocol widely used in professional stage, theatrical, architectural and entertainment lighting systems. This cable is built specifically for DMX lighting-control data rather than analog microphone audio.
The 2-pair construction makes this assembly ideal for professional 5-pin DMX applications including lighting consoles, moving lights, LED fixtures, dimmers, effects equipment and DMX distribution systems.
DMX Cable vs. Microphone Cable
Although DMX and microphone cables may use similar-looking XLR connectors, they are designed for different applications. DMX carries digital control data. Using dedicated DMX data cable helps provide reliable signal transmission, particularly on longer runs and professional lighting systems.
5-Pin DMX Cable Specifications
| Specification | Details |
|---|---|
| Application | DMX512 lighting control |
| Bulk Cable | RapcoHorizon DMX-2PR |
| Construction | 2 twisted data pairs / 4 conductors + shield |
| Conductor Size | 24 AWG |
| Connector A | Neutrik 5-pin XLR male |
| Connector B | Neutrik 5-pin XLR female |
| Nominal Cable OD | Approx. 0.29 in |
| Color | Black |
| Available Lengths | 3, 6, 10, 15, 25, 50, 75, 100, 125, 150 and 200 ft |
| Assembly | Hand assembled in USA |
| Testing | Individually tested before shipment |
Choose Your DMX Cable Length
Equipment racks, consoles and short fixture connections
Stage lighting and fixture runs
Production, venue and longer stage runs
Long-run venue and production applications
Professional DMX Applications
LED fixtures and moving lights
Lighting consoles and dimmers
Concerts, touring and events
Installed and portable lighting systems
Need a Custom DMX Cable?
AV-Cables manufactures custom cable assemblies for professional lighting, broadcast, AV and live production applications.
Need a different length or specialty configuration? Contact AV-Cables for custom DMX and multi-signal cable assemblies.
Professional • Reliable • Connected
Hand Assembled in the USA • Individually Tested • Professional Neutrik Connectors
