Product Description
Professional 100ft RG-223 50-Ohm BNC Cable
The AV-Cables 100ft RG-223 BNC male-to-male cable is a professional 50-ohm RF assembly designed for test equipment, laboratory instruments, communications systems and other impedance-matched RF applications. Its one-hundred-foot length supports facility and field connections where RF equipment, antennas or test points are separated by significant distance.

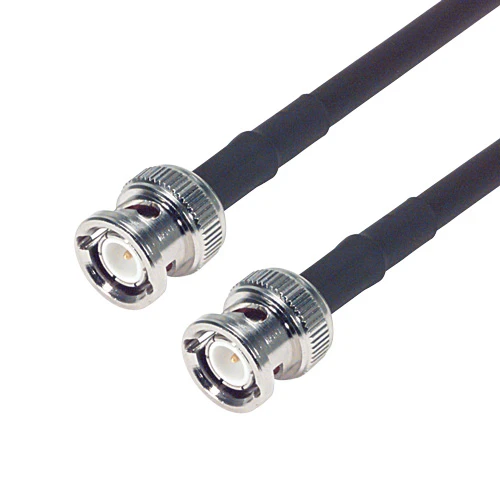

RG-223/U coax uses dual silver-plated copper braid shielding for strong protection against EMI and RFI in electrically noisy environments. Professional BNC male connectors provide secure bayonet connections, while the flexible black PVC jacket supports dependable use in racks, laboratories and field systems.
Every assembly is hand-built in the USA and individually tested before shipment for continuity and proper termination.
Why Choose RG-223?
RG-223 is often selected instead of standard single-shield coax when improved interference protection is required. Its two silver-plated copper braid shields help preserve signal integrity around power supplies, computers, transmitters and other electronic equipment.
Features
- 100ft (30.48m) finished cable length
- RG-223/U 50-ohm coaxial cable
- BNC male to BNC male configuration
- Dual silver-plated copper braid shielding
- Excellent EMI and RFI rejection
- Flexible, durable black PVC jacket
- Professional RF signal transmission
- Long-distance facility and field rf connections
- Hand-built in the USA
- Individually tested before shipment
- Lifetime Connector Replacement Warranty
Ideal Applications
- Facility RF runs
- Remote antenna connections
- Field communications systems
- Large laboratory installations
- Telecommunications facilities
- Test-range equipment
- Government systems
- Custom OEM installations
Technical Specifications
| Cable Type | RG-223/U coaxial cable |
|---|---|
| Finished Length | 100ft (30.48m) |
| Nominal Impedance | 50 Ohm |
| Connector Configuration | BNC male to BNC male |
| Shielding | Dual silver-plated copper braid |
| Jacket | Flexible black PVC |
| Assembly | Hand-built in the USA |
| Testing | Tested for continuity and proper termination |
| Warranty | Lifetime Connector Replacement Warranty |
Why AV-Cables?
AV-Cables has supplied professional cable assemblies since 1995. Each RG-223 cable is assembled by experienced technicians in the USA and individually inspected and tested for dependable performance.
- Professional components and workmanship
- Custom lengths and volume production available
- Support for integrators, laboratories, government and OEM customers
- Lifetime Connector Replacement Warranty
Frequently Asked Questions
What is the advantage of RG-223 over RG-58?
RG-223 uses dual silver-plated copper braid shielding, providing stronger EMI and RFI protection than typical single-braid RG-58 construction.
Is this a true 50-ohm cable?
Yes. The assembly uses 50-ohm RG-223/U coax and is intended for equipment with compatible 50-ohm BNC interfaces.
Why choose the 100ft length?
One hundred feet reaches widely separated equipment, but RF attenuation increases with length and frequency. Confirm the system loss budget before ordering.
Can this cable be used for SDI video?
No. Professional SDI video systems require 75-ohm coaxial cable and true 75-ohm BNC connectors. This product is a 50-ohm RF assembly.
Can AV-Cables build other lengths or larger quantities?
Yes. Custom lengths and volume production are available for integrators, laboratories, government projects and OEM requirements.
