Product Description

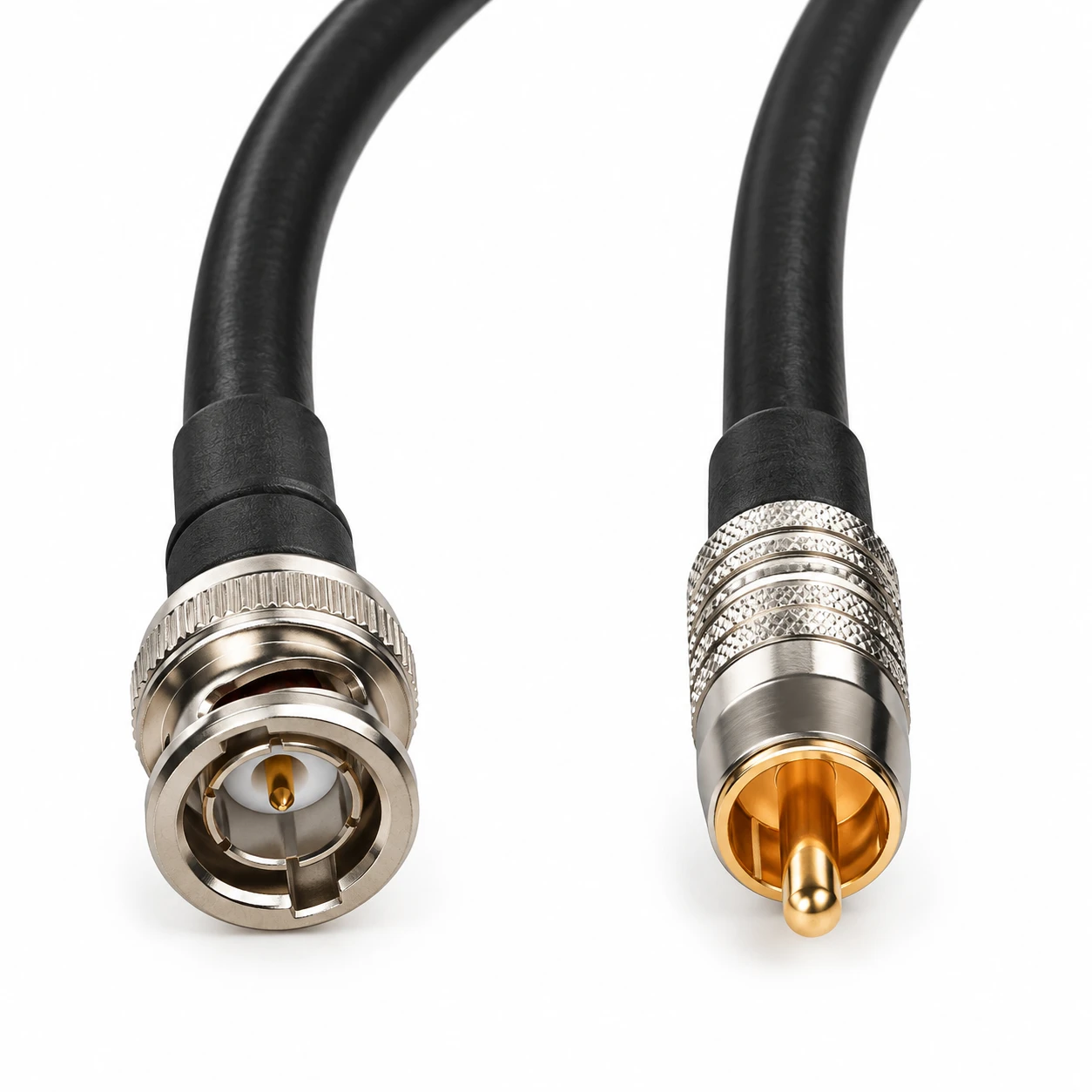

Professional 75-Ohm BNC to RCA Video Cable
Built with genuine Belden 1505A RG59 coax, a precision Kings 75-ohm BNC connector and a REAN RCA connector for professional video interconnections.
One Configurable Cable—Choose Your Length and Color
This professional assembly connects compatible video equipment using a BNC interface on one end and an RCA video interface on the other, with genuine 75-ohm Belden coax throughout the cable run.
- Standard selectable lengths: 1.5, 3, 6 and 10 feet
- Colors: black, blue, green, red, yellow and white
- Optional custom lengths from 15 to 300 feet available by request
- Built to order and individually tested
Connector Configuration
Kings precision 75-ohm BNC male connector
REAN RCA male connector
Designed for Professional Video Connections
Belden 1505A is a full-size RG59 broadcast coax designed for digital video and 6 Gb/s UHDTV applications. Its controlled 75-ohm impedance, solid conductor, foam dielectric and dual-shield construction provide a dependable signal path for compatible video equipment.
20 AWG Solid Conductor
Solid bare-copper center conductor for professional fixed and routed video connections.
Dual Shielding
100% foil plus 95% tinned-copper braid helps protect signal integrity.
CMR Rated Jacket
Professional PVC jacket with a riser rating for appropriate building installations.
Professional Connectors
Kings BNC and REAN RCA connectors provide secure, dependable terminations.
Common Applications
Broadcast and Production
- Video monitors
- Production switchers
- Routers and distribution equipment
Professional AV
- Converters and scalers
- Rack and patch connections
- Commercial video systems
75-Ohm Video Equipment
- Composite video equipment
- Test and measurement systems
- BNC-to-RCA video adaptation
Compatibility note: This cable adapts the physical connector type using 75-ohm Belden video coax. Confirm that both devices support the same video signal format; a cable does not convert one video format into another.
Length Selection Guide
Select the shortest cable that reaches safely while allowing enough extra length for routing and strain relief.
| Length | Typical Use |
|---|---|
| 1.5–3 ft | Rack equipment, converters and closely spaced devices |
| 6–10 ft | Production desks, local monitor connections and short equipment runs |
| Optional 15–300 ft | Custom-quoted studio, facility and production runs; contact AV-Cables to confirm signal format, distance and lead time |
Available Cable Colors
Color-code signal paths, equipment groups or destinations for faster identification.
Belden 1505A Cable Specifications
| Cable | Genuine Belden 1505A RG59 coax |
|---|---|
| Nominal Impedance | 75 ohms |
| Supported Cable Applications | Digital video, 6 Gb/s UHDTV and HD-SDI 1080p |
| Center Conductor | 20 AWG solid bare copper |
| Dielectric | Foam polyethylene |
| Shielding | 100% Duofoil plus 95% tinned-copper braid |
| Outside Diameter | Approximately 0.233 in / 5.92 mm |
| Jacket Rating | PVC, CMR riser rated |
| Connector Configuration | Kings 75-ohm BNC male to REAN RCA male |
| Assembly | Hand assembled and individually tested in the USA |
Why Choose AV-Cables?
Genuine Components
Belden cable with professional Kings and REAN connectors.
Made in the USA
Each cable is professionally assembled in our U.S. facility.
Individually Tested
Every completed assembly is inspected and tested before shipment.
Connector Warranty
Backed by our lifetime connector replacement warranty.
BNC to RCA Cable FAQs
Does this cable convert a video signal?
No. It adapts a BNC connection to an RCA connection using 75-ohm Belden video coax. Both connected devices must support the same signal format.
Can the cable be used in either direction?
The cable itself is passive and non-directional. It can connect a compatible RCA output to a BNC input or a compatible BNC output to an RCA input.
Is this a 50-ohm RF cable?
No. This assembly uses Belden 1505A 75-ohm video coax, a Kings 75-ohm BNC and a REAN RCA connector for compatible video equipment.
Can I order a custom length?
Yes. Standard selectable lengths stop at 10 feet. Optional custom lengths from 15 to 300 feet may be available by quote. Contact AV-Cables to confirm signal compatibility, pricing and production lead time.
Need a Custom Length or Production Quantity?
Tell us your required length, color, signal format and quantity. We can build individual assemblies or matching cable sets for professional installations.
