RG58/U BNC Cables- Belden 9201
RG-58 50 Ohm BNC Coaxial Cables
Professional BNC-to-BNC assemblies made with Belden 9201 RG58/U coax for RF communications, antennas, test equipment and general-purpose 50-ohm applications.
Precision 50Ω BNC Made in USA Individually Tested Lifetime Connector Warranty
Select Your RG-58 BNC Cable
Use the configurable product to select any available length, or choose a popular fixed-length cable below.
BEST PLACE TO START Belden 9201 RG58/U 50 Ohm BNC Cable Choose your required cable length from 1.5 ft through 100 ft on one product page.
Select Length →Shop Popular Lengths
Professional 50 Ohm Cable for RF and Test Systems

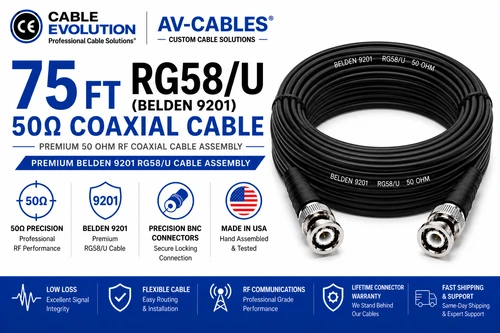

Our RG-58 assemblies use genuine Belden 9201 RG58/U coax with precision 50-ohm BNC male connectors. The flexible, general-purpose construction is well suited to short and moderate cable runs where dependable RF connectivity and easy routing are important.
RF Communications Radios, receivers, transmitters and wireless communication equipment.
Antennas Short-run antenna connections for compatible 50-ohm RF systems.
Test & Measurement Oscilloscopes, signal generators, spectrum analyzers and laboratory equipment.
Industrial & Data Compatible controls, instrumentation and legacy 50-ohm data connections.
Belden 9201 RG58/U Construction
| Cable | Belden 9201 RG58/U type coaxial cable |
|---|---|
| Nominal Impedance | 52 ohms; designed for standard 50-ohm systems |
| Center Conductor | 20 AWG solid bare copper |
| Shielding | 80% bare copper braid |
| Jacket | Black PVC, approximately 0.195 in. (4.95 mm) outside diameter |
| Connectors | Precision 50-ohm BNC male to BNC male |
50 Ohm vs. 75 Ohm BNC Cable
Choose RG-58 when your equipment specifies a 50-ohm connection, typically for RF, radio, antenna and test applications. For SDI video, word clock and other 75-ohm broadcast signals, use a true 75-ohm broadcast BNC cable. Matching the cable and connector impedance to the equipment helps minimize reflections and signal loss.
Why Choose AV-Cables?
Professional Components Genuine Belden 9201 coax and precision 50-ohm BNC connectors.
Hand-Assembled in USA Built by experienced cable technicians in Ohio.
Individually Tested Every completed cable assembly is checked before shipment.
Connector Warranty Backed by our lifetime connector replacement warranty.
RG-58 BNC Cable FAQs
Is RG-58 a 50-ohm cable?Yes. Belden 9201 is an RG58/U-type coaxial cable designed for compatible 50-ohm RF, radio, antenna, test and instrumentation systems.
Can I use RG-58 for SDI video?RG-58 is intended for 50-ohm applications. Professional SDI video normally requires true 75-ohm cable and connectors, so choose an SDI-rated BNC assembly instead.
What is the difference between RG-58 and RG-223?RG-58 is a flexible general-purpose 50-ohm cable. RG-223 uses double shielding and is often selected when additional shielding is preferred.
Are custom lengths or multi-channel assemblies available?Yes. AV-Cables can manufacture custom lengths, connector configurations, matching sets and multi-channel 50-ohm cable looms.
Built and Tested by AV-Cables
Every assembly is hand-built in the USA, individually tested and backed by our lifetime connector replacement warranty. Contact us for production quantities or a nonstandard cable build.
Contact AV-Cables Call 614-834-4160
