DIN 1.0/2.3 Broadcast Video Cables

Professional DIN 1.0/2.3 SDI Video Cables

Compact 75-ohm cable assemblies for broadcast cameras, routers, switchers, monitors, converters, patch panels and high-density professional video equipment.

6G & 12G-SDI True 75Ω Signal Path Genuine Belden Coax Made in USA Individually Tested

Choose Your DIN Cable Configuration

Confirm the connector on each device, then choose 1855A for applications through 6G-SDI or 4855R for single-link 12G-SDI and 4K UHD.

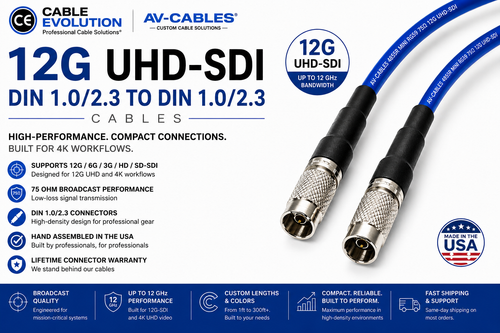

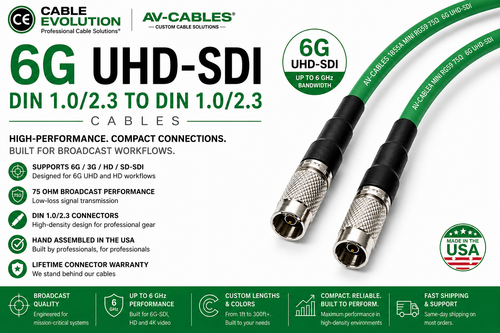

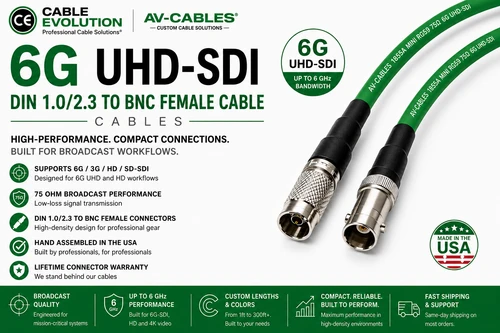

6G • DIRECT CONNECTION DIN to DIN — Belden 1855A Compact Mini RG59 cable for connecting two compatible female DIN 1.0/2.3 equipment ports. Shop 6G DIN-to-DIN → 12G • 4K UHD DIN to DIN — Belden 4855R Lightweight Mini RG59 assembly for direct 12G-SDI connections between compatible DIN devices. Shop 12G DIN-to-DIN → 6G • BNC TO DIN BNC to DIN — Belden 1855A Connect a standard female BNC equipment port to a female DIN 1.0/2.3 port through 6G-SDI. Shop 6G BNC-to-DIN → 12G • BNC TO DIN BNC to DIN — Belden 4855R Connect standard BNC video equipment to compact DIN 1.0/2.3 ports in 12G-SDI systems. Shop 12G BNC-to-DIN → 6G • ADAPTER CABLE DIN to Female BNC — 1855A Connect an existing male BNC cable directly to equipment using a female DIN 1.0/2.3 port. Shop DIN-to-Female-BNC → 12G • HIGH DENSITY HD-BNC to DIN — 4855R Join two different compact broadcast connector systems while maintaining a 12G-rated signal path. Shop HD-BNC-to-DIN →

What Is a DIN 1.0/2.3 Connector?

DIN 1.0/2.3 is a compact professional coaxial connector commonly used on broadcast cameras, video routers, multiviewers, monitors, converters and high-density patching equipment. Its small footprint lets manufacturers place more SDI ports into limited panel space while maintaining the 75-ohm signal path required by professional video systems.

Compact Design Well suited to routers, converters, monitors and equipment with densely spaced ports.
Professional 75-Ohm Path Designed for compatible SDI video equipment and professional broadcast workflows.
Multiple Cable Formats Available for DIN, BNC, female BNC and HD-BNC equipment connections.

DIN 1.0/2.3 Is Not the Same as HD-BNC

DIN 1.0/2.3 and HD-BNC connectors are both compact, but they use different physical designs and are not directly interchangeable. Standard BNC is also different. Confirm the connector type and gender on both pieces of equipment before ordering.

Compare Belden 1855A and 4855R

Feature Belden 1855A Belden 4855R
Cable Type 23 AWG Mini RG59 23 AWG Mini RG59
Maximum Format Up to 6G-SDI Up to 12G-SDI
Center Conductor 23 AWG solid bare copper 23 AWG solid silver-plated copper
Nominal Diameter Approx. 4.04 mm Approx. 4.04 mm
Best Use SD, HD, 3G and 6G-SDI systems Single-link 12G-SDI and 4K UHD systems

Maximum transmission distance depends on the SDI format, cable length, connected equipment, patch points and installation environment.

Which Connector Configuration Do You Need?

DIN to DIN Both devices have compatible female DIN 1.0/2.3 video ports.
BNC to DIN One device uses a standard female BNC port and the other uses DIN 1.0/2.3.
DIN to Female BNC An existing male BNC cable must connect to a DIN-equipped device.
HD-BNC to DIN One device uses HD-BNC and the other uses DIN 1.0/2.3.

Common DIN Cable Applications

Broadcast Equipment Cameras, production switchers, routers, multiviewers and monitors.
High-Density Racks Patch panels, converters and signal processors with compact port spacing.
Mobile Production Production trucks, fly packs, portable systems and live-event equipment.
Professional AV Corporate, education, government and house-of-worship video systems.

Need Standard BNC or HD-BNC Cables?

Browse our related professional SDI cable families when your equipment does not require a DIN 1.0/2.3 connection.

Shop SDI BNC Cables Shop HD-BNC Cables

Why Choose AV-Cables?

Professional Components Genuine Belden broadcast coax and precision professional connectors.
Hand-Assembled in USA Built by experienced cable technicians in Ohio.
Individually Tested Every completed cable assembly is checked before shipment.
Connector Warranty Backed by our lifetime connector replacement warranty.

DIN 1.0/2.3 Cable FAQs

Is DIN 1.0/2.3 the same as standard BNC?No. DIN 1.0/2.3 is a smaller connector with a different physical design. Choose the cable configuration that matches the port on each device.
Is DIN 1.0/2.3 the same as HD-BNC?No. Although both connectors are compact, DIN 1.0/2.3 and HD-BNC are different and are not directly interchangeable.
Which DIN cable should I choose for 12G-SDI?Choose a DIN cable made with Belden 4855R when single-link 12G-SDI and compatible 4K UHD performance are required.
When should I choose Belden 1855A?Choose 1855A for compact, lightweight SD-SDI, HD-SDI, 3G-SDI and 6G-SDI connections.
Are custom DIN cables available?Yes. AV-Cables can manufacture custom lengths, connector combinations, matching sets, labeling options and production quantities.

Need Help Choosing a DIN Cable?

Tell us the connector on each device, required SDI format, cable length and installation environment. We can help select the correct assembly or quote a custom configuration.
