Product Description

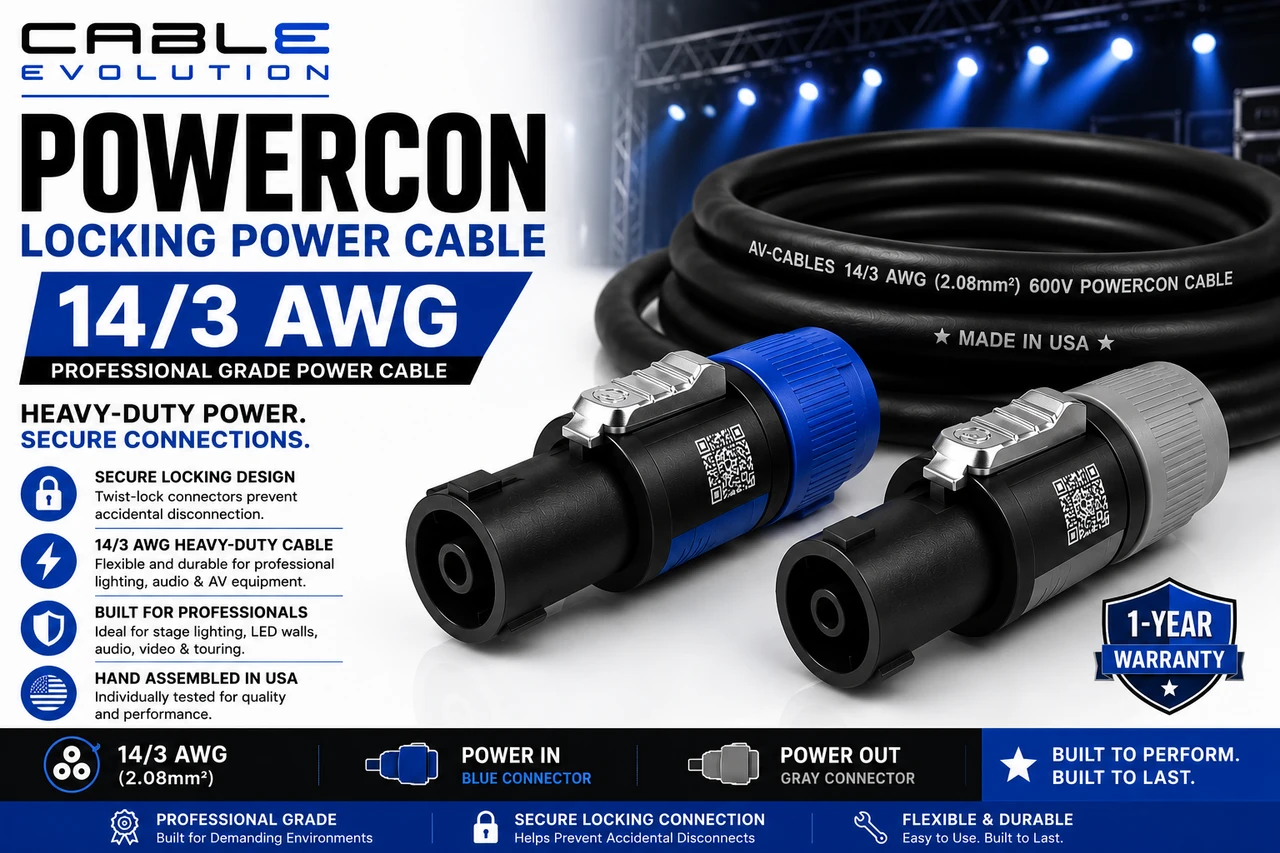

14/3 AWG PowerCON® Locking Power Link Cable
Cable Evolution 14/3 AWG PowerCON locking power link cables provide secure and dependable power connections for professional lighting, audio, video and live-production equipment. Each cable features a color-coded blue power-input connector and gray power-output connector.
Built with flexible 14/3 AWG SJTW power cable, these assemblies are ideal for short equipment links where easy handling, dependable performance and a locking connection are required.
Every completed cable is individually inspected and electrically tested before shipment.
Professional Cable Features
Available Lengths
Select the length needed for your equipment layout. The 14/3 AWG version is offered in short-run lengths through 15 feet.
Choose our heavier 12/3 AWG PowerCON link cable for longer runs and applications where reduced voltage drop is important.
Recommended Applications
- LED and theatrical lighting fixtures
- Moving lights and intelligent fixtures
- Powered speakers and professional audio equipment
- Broadcast and video-production equipment
- Small LED video-wall systems
- Live events and concert production
- Touring and rental systems
- Corporate AV installations
- Studios and control rooms
- Houses of worship
Technical Specifications
| Cable Construction | 14/3 AWG SJTW flexible power cable |
|---|---|
| Conductors | Three conductors: line, neutral and protective ground |
| Connector Configuration | Blue power input to gray power output |
| Connection Style | Professional twist-lock power connectors |
| Available Lengths | 1.5, 2, 3, 5, 6, 10 and 15 feet |
| Maximum Offered Length | 15 feet |
| Cable Color | Black |
| Assembly | Hand assembled in the USA |
| Testing | Every completed cable is individually tested |
| Warranty | 1-Year Cable Evolution Limited Warranty |
14/3 AWG or 12/3 AWG?
| 14/3 AWG | 12/3 AWG |
|---|---|
| More flexible and easier to manage | Heavier-duty cable construction |
| Best for short equipment links | Better suited to longer cable runs |
| Available through 15 ft | Available through 100 ft |
| Lighting, powered speakers and general AV | Higher-power and longer-run applications |
Important Operating Information
Frequently Asked Questions
What is a PowerCON link cable?
A link cable connects the compatible power-output connection of one device to the power-input connection of another device. Only link equipment when permitted by its manufacturer.
Why are the connectors different colors?
The blue power-input and gray power-output connectors use different keying. They are designed for their respective input and output connections and are not interchangeable.
What is the maximum available 14/3 cable length?
The longest 14/3 AWG option offered on this product is 15 feet. For longer runs, select the 12/3 AWG PowerCON link cable.
Are these cables tested?
Yes. Every completed cable is individually inspected and electrically tested before shipment.
Are custom quantities available?
Yes. Contact AV-Cables for production quantities, custom requirements and volume pricing.
