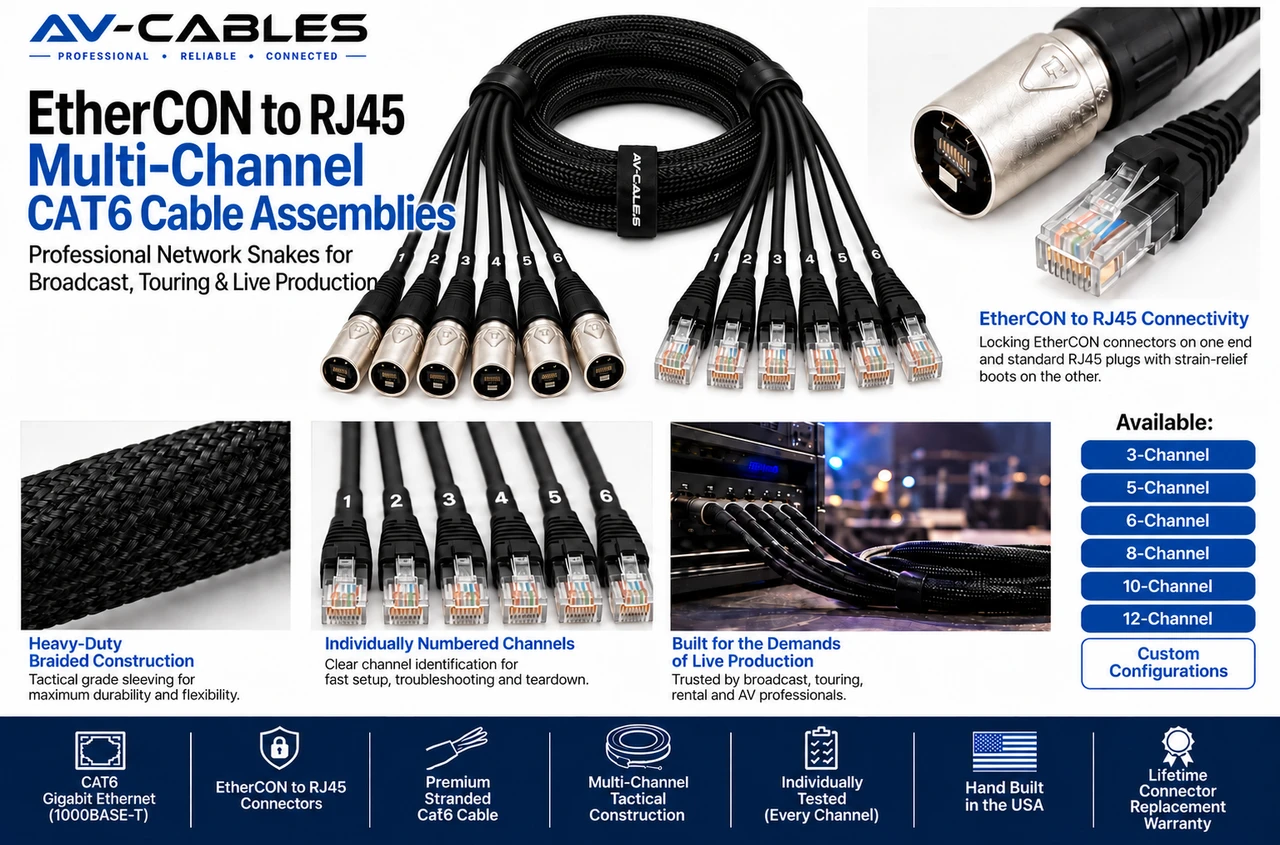

  • Multi-channel CAT6 RJ45 to EtherCON network snake cable with numbered channels and braided sleeving

    • Multi-Channel CAT6 RJ45 to EtherCON Network Snake | 3–12 Channels

    $99.00
    (No reviews yet) Write a Review
    SKU:
    Copy of ETHERCON-XXCH-XXFT
    Availability:
    Custom-Built • Typically Ships in 3–4 Business Days
    Weight:
    6.00 LBS
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    Multi-Channel CAT6 EtherCON® to RJ45 Network Snake

    Connect professional EtherCON-equipped stage and production equipment to standard RJ45 network ports with one organized multi-channel cable assembly.

    Each independent CAT6 channel has a locking EtherCON connector on one end and a standard RJ45 plug with a snagless strain-relief boot on the other.

    3–12 Independent Channels • EtherCON to RJ45 • CAT6 Gigabit Ethernet • 25–200ft

    Professional Multi-Channel Features

    Independent CAT6 Channels Every channel provides its own dedicated point-to-point Ethernet connection.
    EtherCON to RJ45 Locking EtherCON connectors on one end connect to standard RJ45 plugs on the opposite end.
    Heavy-Duty Cable Loom Flexible expandable braided sleeving keeps the individual network cables together.
    Channel Identification Matching identification at both ends simplifies installation, troubleshooting and teardown.
    Individually Tested Every completed CAT6 channel is tested before the assembly ships.
    Hand-Built in the USA Professionally assembled for broadcast, touring, live production and commercial AV systems.

    Select Your Channel Count

    Choose the number of independent EtherCON-to-RJ45 network connections required for your system.

    3 Channels Three independent connections
    5 Channels Five independent connections
    6 Channels Six independent connections
    8 Channels Eight independent connections
    10 Channels Ten independent connections
    12 Channels Twelve independent connections

    Available Lengths

    25ft
    50ft
    100ft
    150ft
    200ft

    Recommended Applications

    • Digital consoles and stage boxes
    • Dante and AES67 audio networks
    • Broadcast facilities and studios
    • Production trucks and fly packs
    • Live sound and touring systems
    • Networked lighting control
    • EtherCON equipment to standard network switches
    • AV-over-IP installations
    • Intercom and communications systems
    • Networked cameras and video equipment
    • Corporate AV and houses of worship
    • Rental and staging systems

    Technical Specifications

    Network Category CAT6
    Cable Construction Flexible stranded CAT6 network cable
    Network Performance Gigabit Ethernet and 1000BASE-T compatible
    End A Locking EtherCON connector on every channel
    End B RJ45 male plug with snagless strain-relief boot on every channel
    Channel Counts 3, 5, 6, 8, 10 or 12 independent channels
    Available Lengths 25ft, 50ft, 100ft, 150ft and 200ft
    Channel Identification Matching identification at both ends
    Outer Assembly Flexible expandable braided sleeving
    Assembly Hand-built in the USA
    Testing Every completed channel is individually tested
    Warranty Lifetime Connector Replacement Warranty
    Before Ordering Confirm that the selected length and any additional patch cables remain within the maximum channel length supported by your network equipment and application.

    Frequently Asked Questions

    What is connected to each end?

    Every channel has a locking EtherCON connector on one end and a standard RJ45 male plug with a strain-relief boot on the other.

    Is the cable directional?

    No. The End A and End B designations identify the connector configuration only. Ethernet data can travel in either direction.

    Does every channel support Gigabit Ethernet?

    Each CAT6 channel is designed for Gigabit Ethernet and 1000BASE-T when used with compatible equipment and within applicable channel-length limits.

    Can it be used for Dante and AES67?

    Yes. The independent CAT6 channels are suitable for Dante, AES67 and other compatible Ethernet-based systems.

    Are both ends identified?

    Yes. Matching channel identification is installed at both ends for faster setup and troubleshooting.

    Can you build a custom version?

    Yes. Contact us about custom lengths, channel counts, labeling or connector configurations.

    Need a Custom Network Snake?

    Contact AV-Cables for custom channel counts, lengths, connector combinations and identification.

    Shop CAT6 Cable Assemblies Request a Custom Build
